Description :

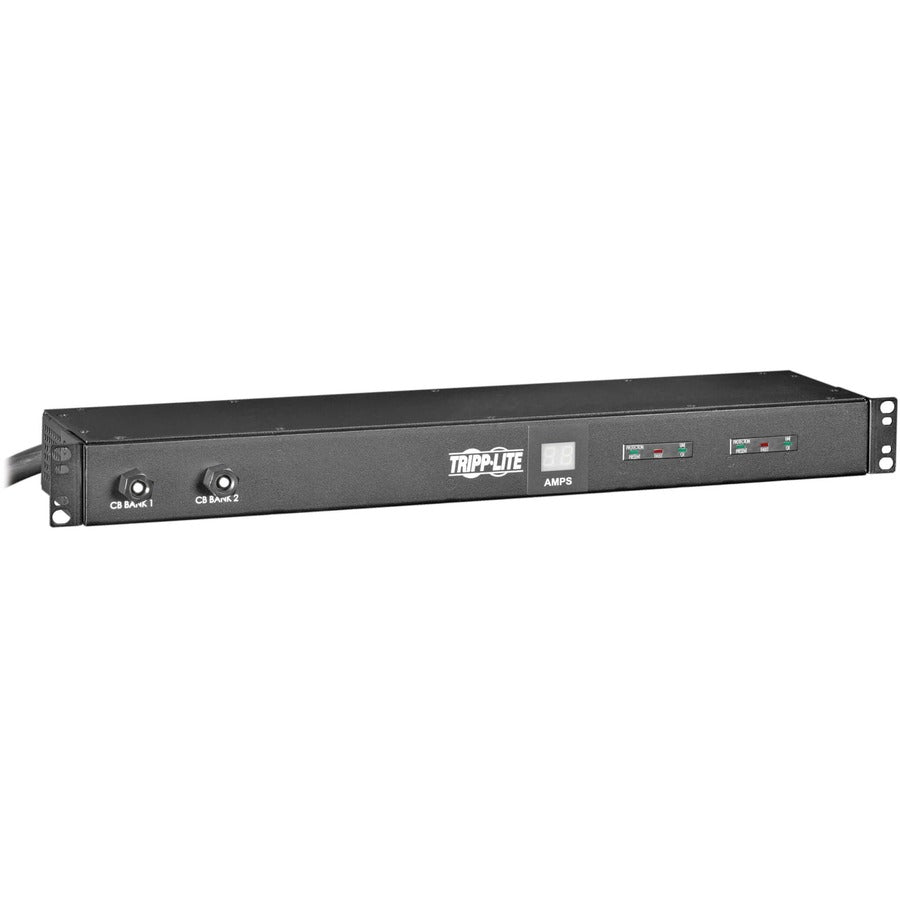

Tripp Lite 2.9kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 12 NEMA 5-15/20R Outlets, L5-30P Input, 15 ft. Cord, 1U Rack-Mount - NEMA L5-30P - 12 x NEMA 5-15/20R - 120 V AC - 0U/1U - Horizontal/Vertical - Wall-mountable - RackDelivers 120V single-phase AC power to multiple loads while also protecting connected equipment from dangerous surges and spikes.
Features | Single-Phase 120V PDU Distributes and Monitors Network-Grade Power to Multiple Loads

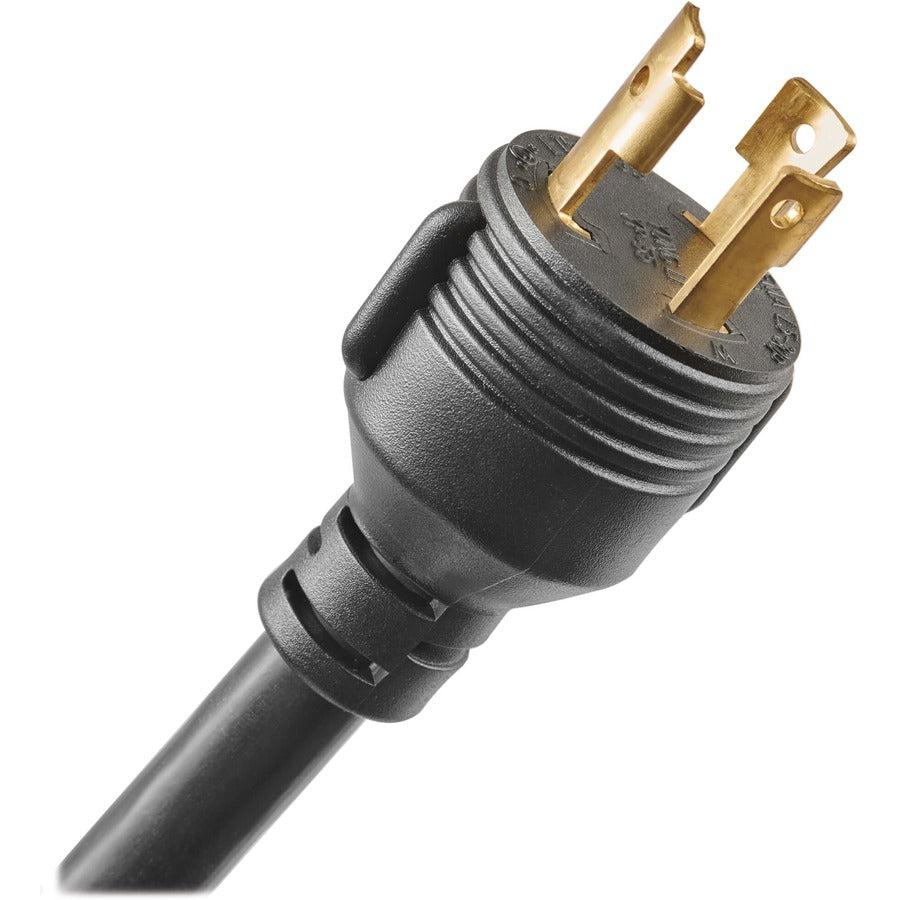

This local metered PDU is an ideal unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUMH30-ISO provides real-time monitoring of load levels via its built-in digital current metering. A 15- foot (4.6-meter) cord with L5-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

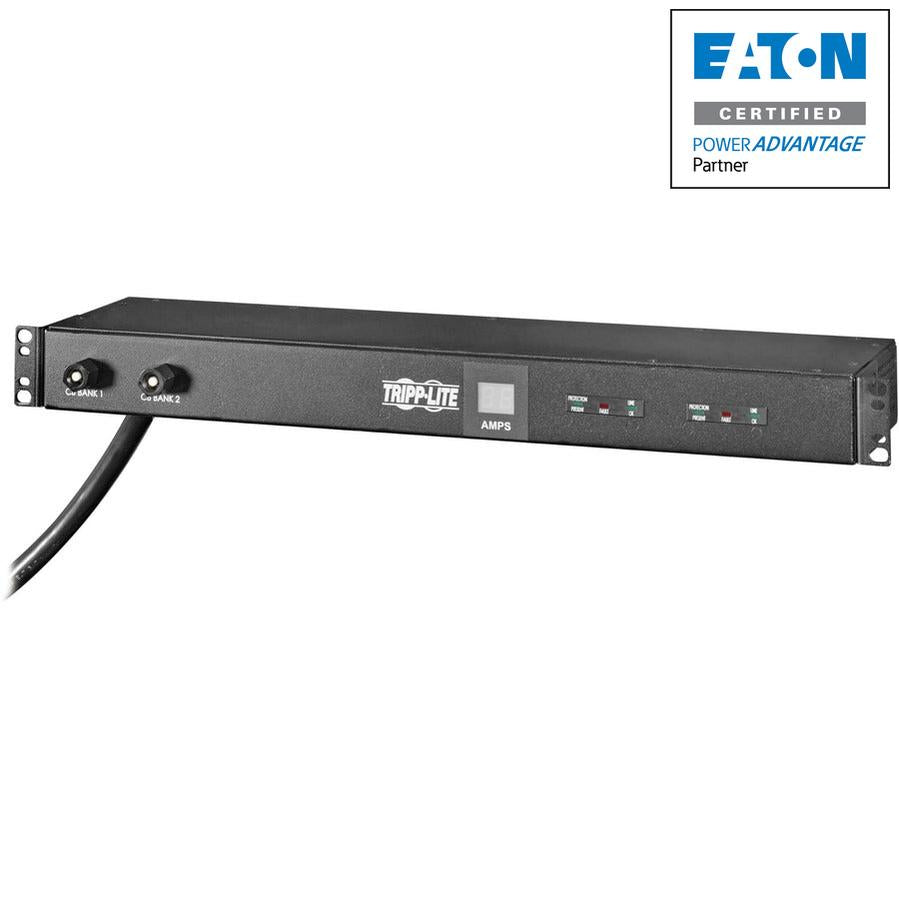

Digital Load Meter Helps Prevent Potentially Expensive Overloads

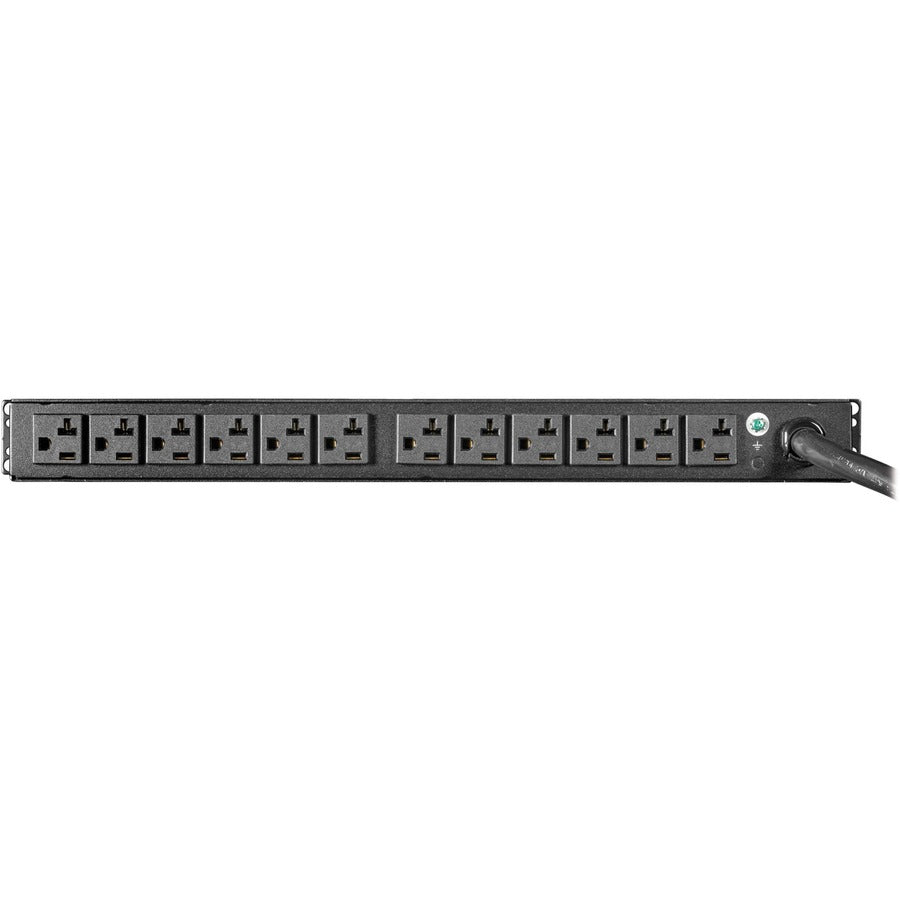

The PDUMH30-ISO features 12 NEMA 5-15/20R outlets in two separately breakered load banks. A digital ammeter reports the load for each bank separately, so you can balance loads across both built-in 20A b
Specifications :
General Information
Manufacturer | Tripp Lite by Eaton |
---|---|
Manufacturer Part Number | PDUMH30-ISO |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Model | PDUMH30-ISO |
Product Name | PDUMH30-ISO 12-Outlets PDU |
Product Type | PDU |
UPC | 0037332255907 |
Product Color | Black |
---|---|
Height | 18.9" |
Width | 4.8" |
Depth | 1.7" |
Weight (Approximate) | 8.82 lb |
Package Contents |
|
---|---|
Environmentally Friendly | Yes |
Limited Warranty | 2 Year |
---|
