Tripp Lite 1U Rack-Mount Console With 19-In. Lcd

Description :

1U Rack-Mount Console with 19-in. LCD

Tripp Lite 1U Rack-Mount Console with 19-in. LCD. Display diagonal: 48.3 cm (19"), Display resolution: 1024 x 768 pixels, Display: LCD. Dimensions (WxDxH): 482.6 x 599.4 x 43.1 mm. Width: 449.3 mm, Height: 43.4 mm, Depth: 722.4 mm. Package weight: 17.6 kg, Package width: 602 mm, Package depth: 825.5 mm. Master (outer) case width: 602 mm, Master (outer) case length: 825.5 mm, Master (outer) case height: 152.4 mm

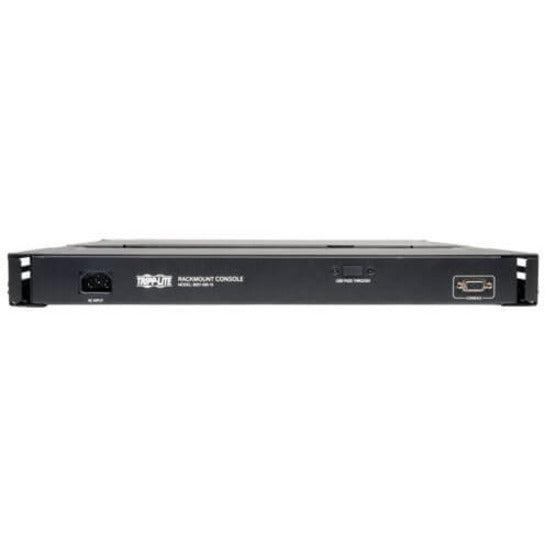

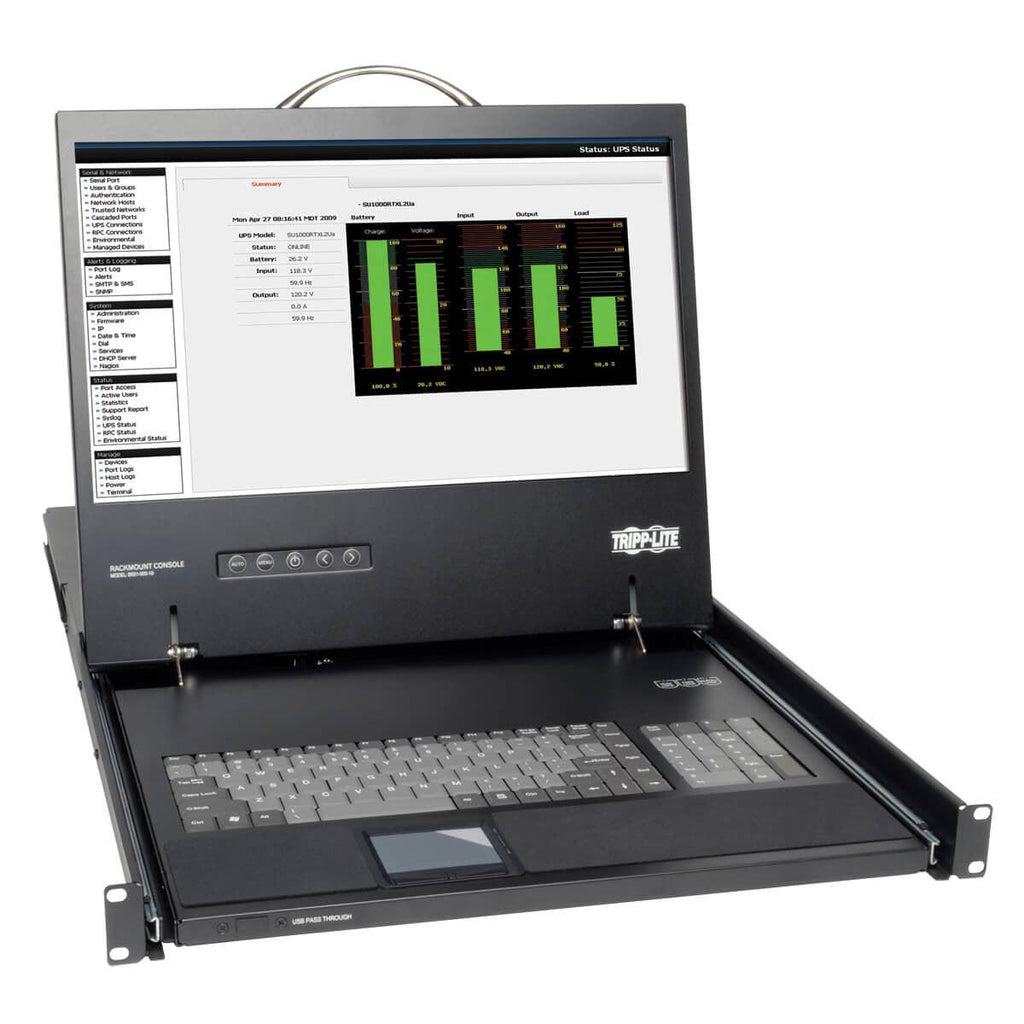

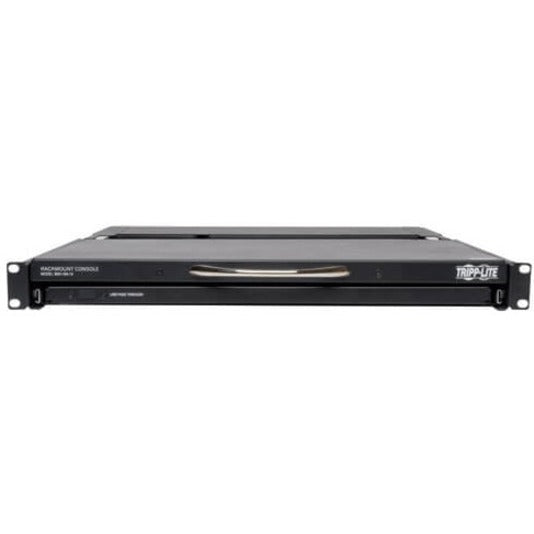

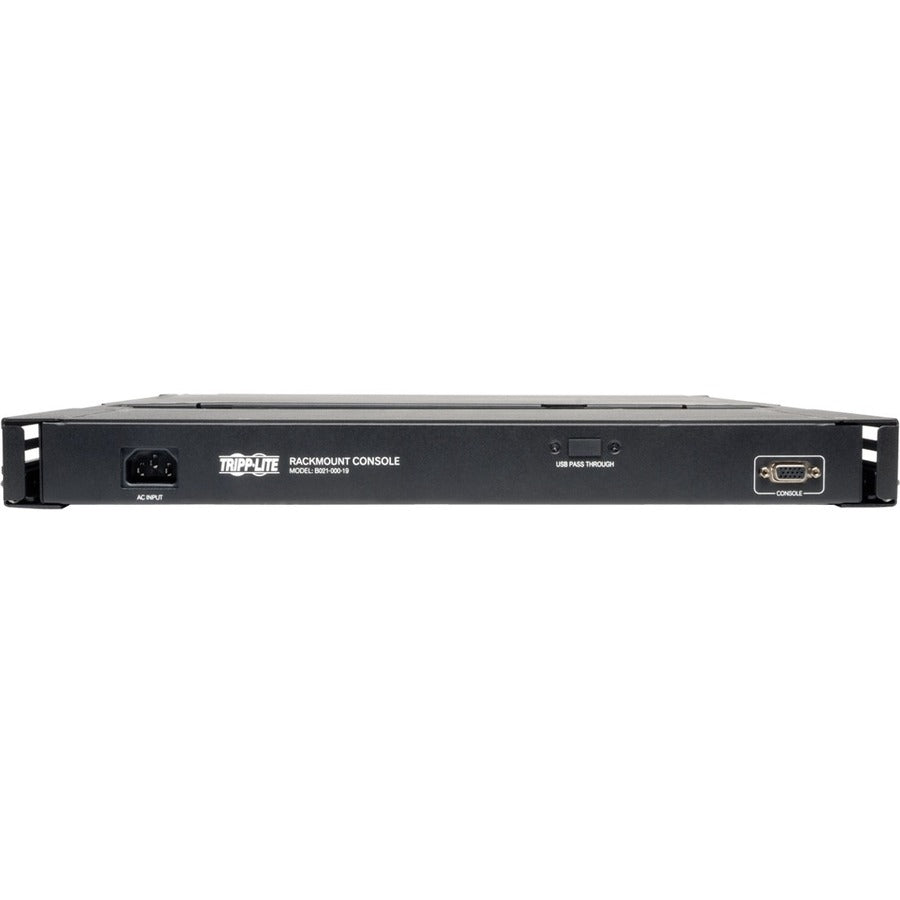

Tripp Lite's B021-000-19 1U Rackmount Console features an integrated 19" LCD display, full 88-key keyboard and touch pad, all in a 1U rackmountable housing. The included KVM cable kit allows for connection to a PS/2 computer or KVM, and a PS/2 to USB adapter is included, which can be used to connect to a USB computer or KVM. The unit features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc.. Your peripheral device connects to the USB type A port on the front of the unit, and your computer connects to the USB type A port on the back of the unit using a Tripp Lite UR020-Series type A M/M cable. Constructed of heavy-duty steel housing.

● Features 19-inch LCD TFT active-matrix, color panel
● Space saving 1U 19-inch, rackmount drawer design
● Features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc.
● Supports resolutions of up to 1366 X 768
● Included PS/2 to USB adapter allows for connection to a USB computer or KVM
● Sleep mode when the monitor cover is closed
● Input 120/240 VAC
● Constructed of heavy-duty steel housing


● Control an entire network in just 1U of rack space; includes keyboard, 19" LCD screen and touch pad

● Features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc.

● Connects to a PS/2 or USB server or KVM switch

● Supports resolutions up to 1366 X 768

● Rackmountable in 19" system rack (1U), from 27" to 42" deep

System Requirements


● Computer or KVM with a VGA monitor port and USB or PS/2 keyboard/mouse ports

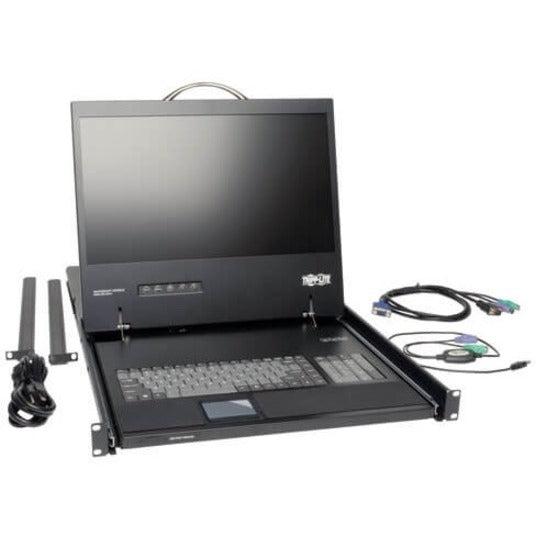

Package Includes


● 1U Rackmount Console w/ 19" LCD
● 1- KVM Cable Kit ( HD15M to HD15M + 2 PS2 Male )
● 1-PS/2 to USB Adapter

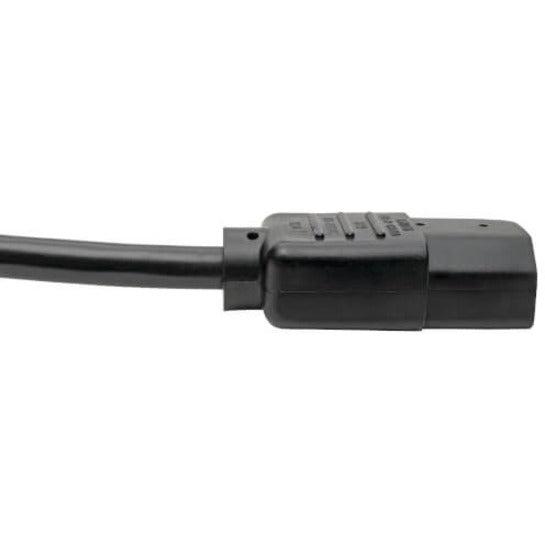

● 1- C13 to 5-15P Power Cord
● 1- User Manual
● Mounting Hardware
