Tripp Lite by Eaton

Tripp Lite 16.2Kw 3-Phase Switched Pdu - 6 C13 & 12 C19 Outlets, Iec 309 60A Blue, 0U, Outlet Monitoring, Taa

Tripp Lite 16.2Kw 3-Phase Switched Pdu - 6 C13 & 12 C19 Outlets, Iec 309 60A Blue, 0U, Outlet Monitoring, Taa


Regular price $2,099.08
Regular price Sale price $2,099.08
Sale Sold out
Shipping calculated at checkout.
          View full details
          Reviews, Que. & Ans.

          Description :

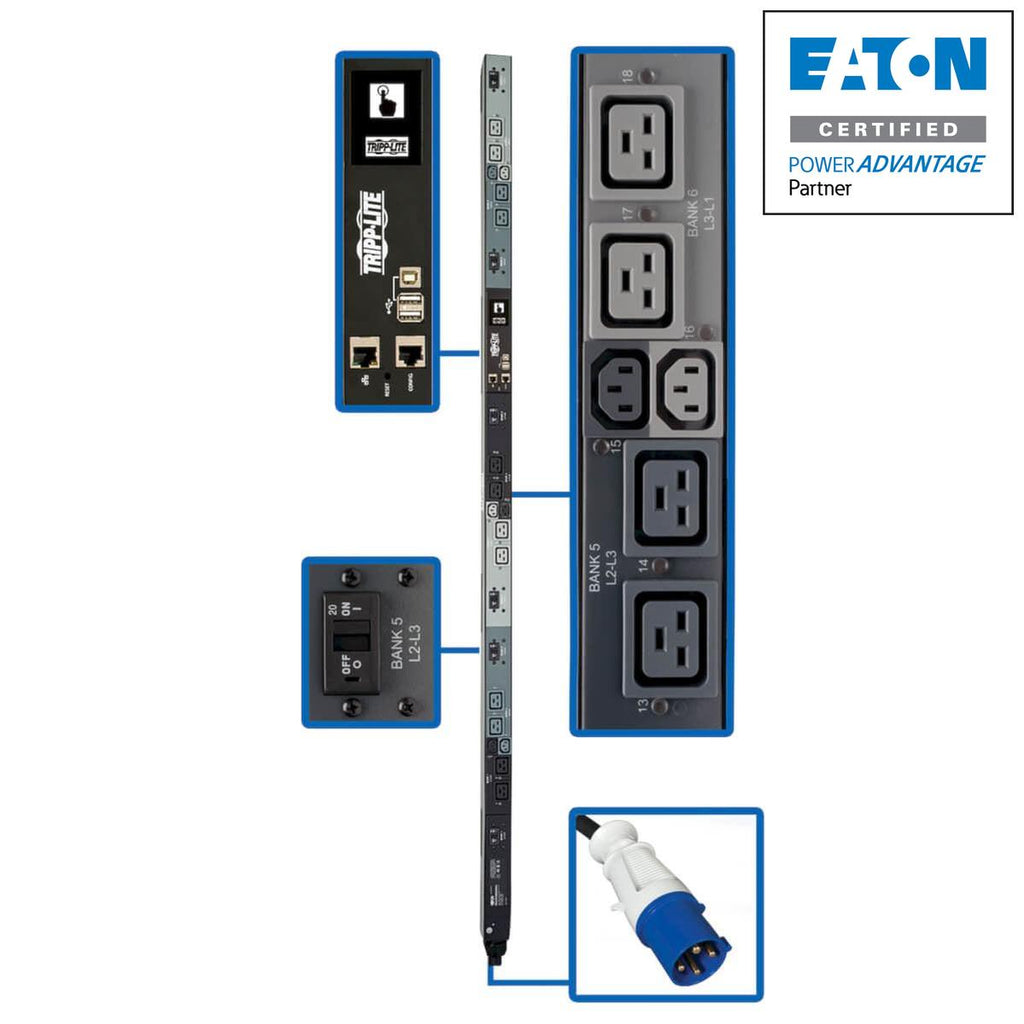

          16.2kW 3-Phase Switched PDU - 6 C13 & 12 C19 Outlets, IEC 309 60A Blue, 0U, Outlet Monitoring, TAA

          Tripp Lite 16.2kW 3-Phase Switched PDU - 6 C13 & 12 C19 Outlets, IEC 309 60A Blue, 0U, Outlet Monitoring, TAA. PDU types: Switched, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 18 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. LED indicators: Activity, Link, Network, Power, Cable length: 1.8 m, Security algorithms: SNMP,SNMPv3. Nominal input voltage: 208 V, Maximum current: 45 A, AC input frequency: 50/60 Hz. Width: 55.1 mm, Depth: 63.2 mm, Height: 1778 mm

          3-Phase PDU Distributes, Monitors and Manages Network-Grade Power
          Recommended for data centers, server rooms and high-density network closets, this switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. You can more efficiently manage network power consumption and remotely reboot locked network items without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance, thus lowering the 0U PDU’s total cost of ownership.

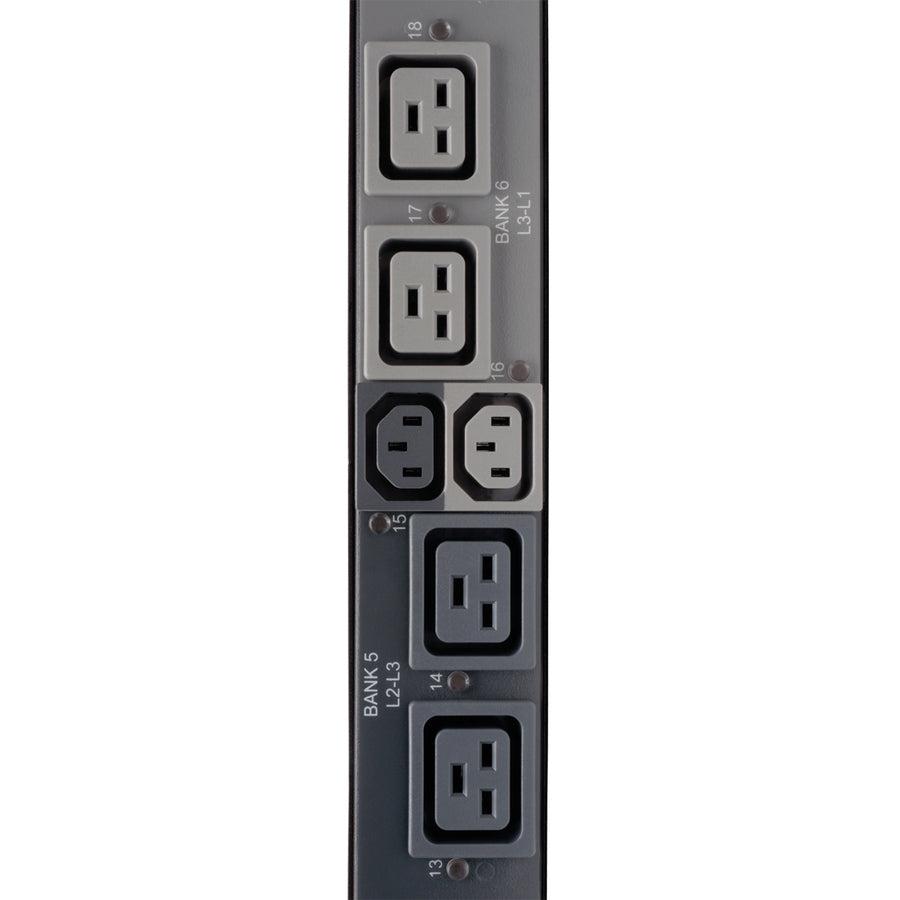

          18 Outlets Dispense AC Power to Connected Equipment

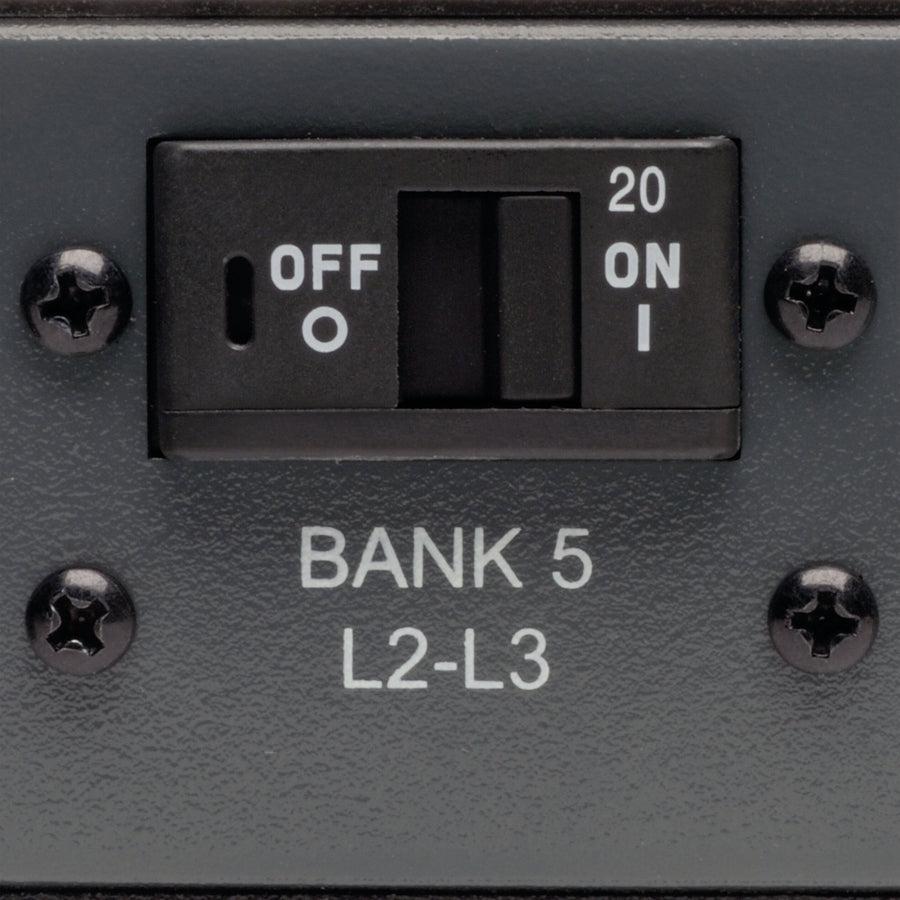

          During normal operation, 18 individually controllable outlets—six C13 and 12 C19—in six separately breakered load banks distribute AC power to rack equipment. Each 208V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets and banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

          Built-In LX Platform Network Management Card Allows Remote Access 24/7
          The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

          Reduce Service Calls with Auto Probe Autonomous Device Management
          The Auto Probe feature (Firmware 15.5.2 and greater) checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA)

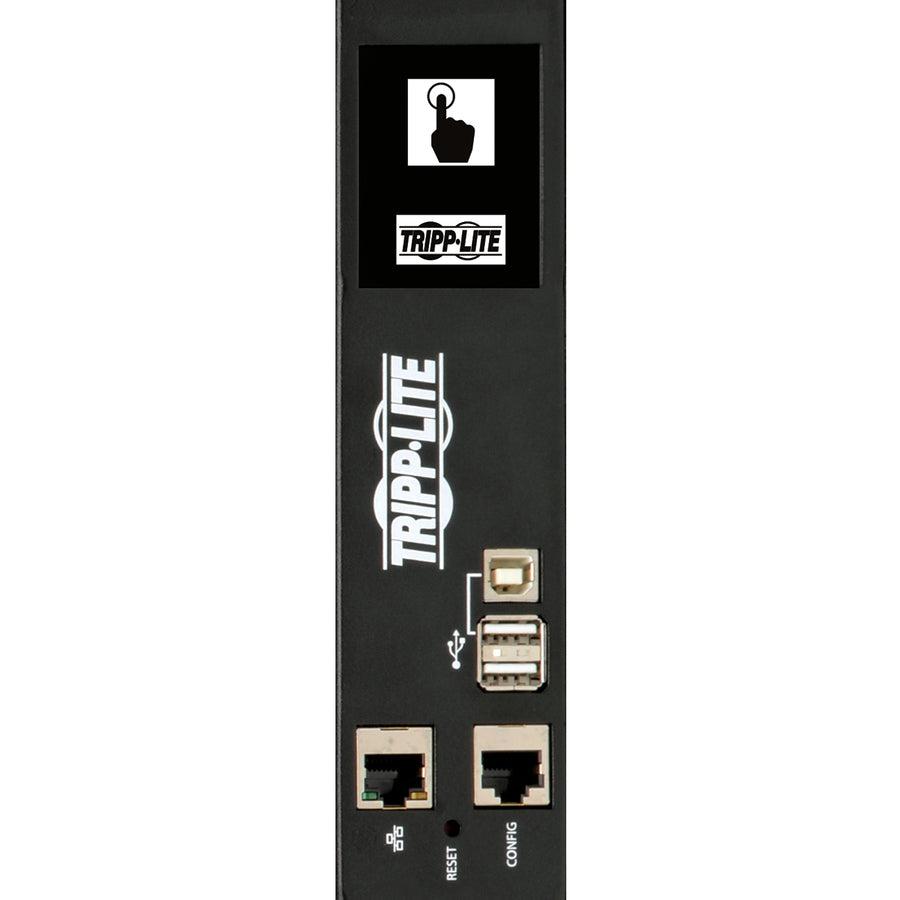

          Color Touchscreen LCD Offers Important Data at a Glance
          An easy-to-navigate color touchscreen LCD reports network data, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 3-phase PDU via mobile device. If an EnviroSense2 module is connected to the PDU, the LCD also displays its status and environmental data, such as temperature and humidity.

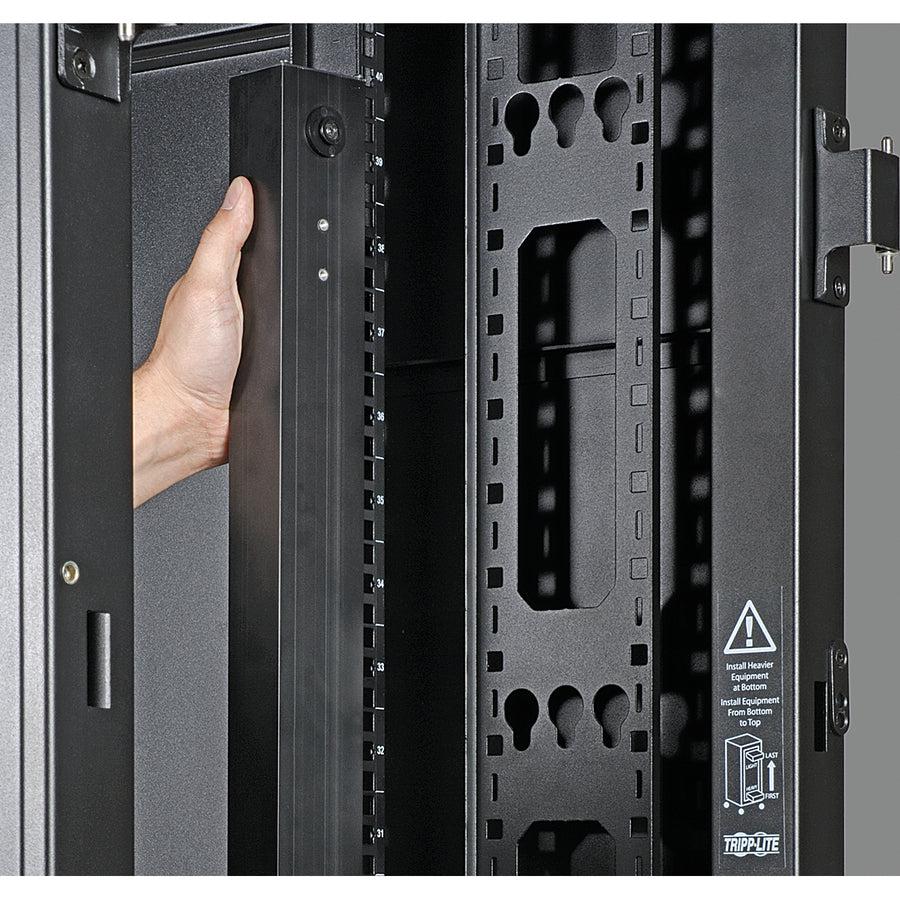

          Easy to Install Vertically in an EIA-Standard 19 in. Rack

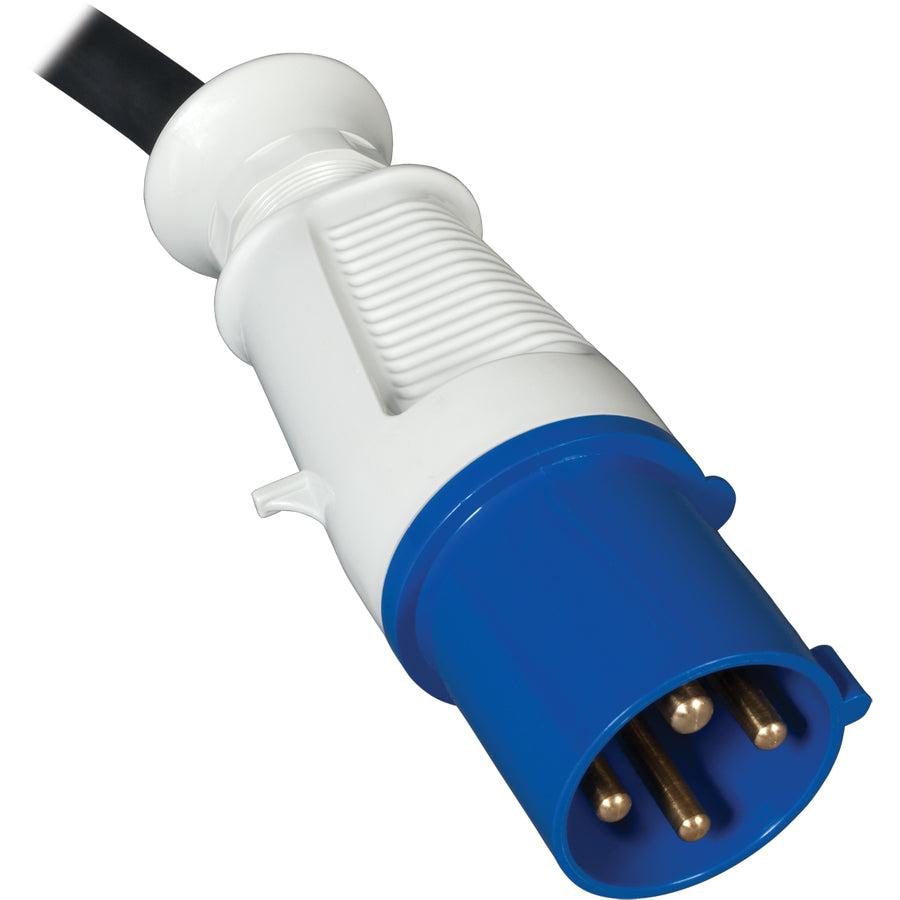

          The 70-inch 0U PDU mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with IEC 309 60A Blue (3P+E) 3-phase input connects the switched PDU to a compatible AC power source, generator or protected UPS.

          TAA-Compliant for GSA Schedule Purchases
          The PDU3EVSR6G60A is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

          2-Year Warranty
          The PDU3EVSR6G60A is backed by a 2-year warranty, ensuring reliability and performance.

          Typical Applications
          - Power mission-critical rack equipment in a data center, computer room or high-density network closet
          - Monitor power loads from various computers, switches, servers and other networking equipment
          - Maintain a computer network in a government, commercial or industrial facility
          - Manage multiple rack devices by rebooting or shutting down individual outlets as needed

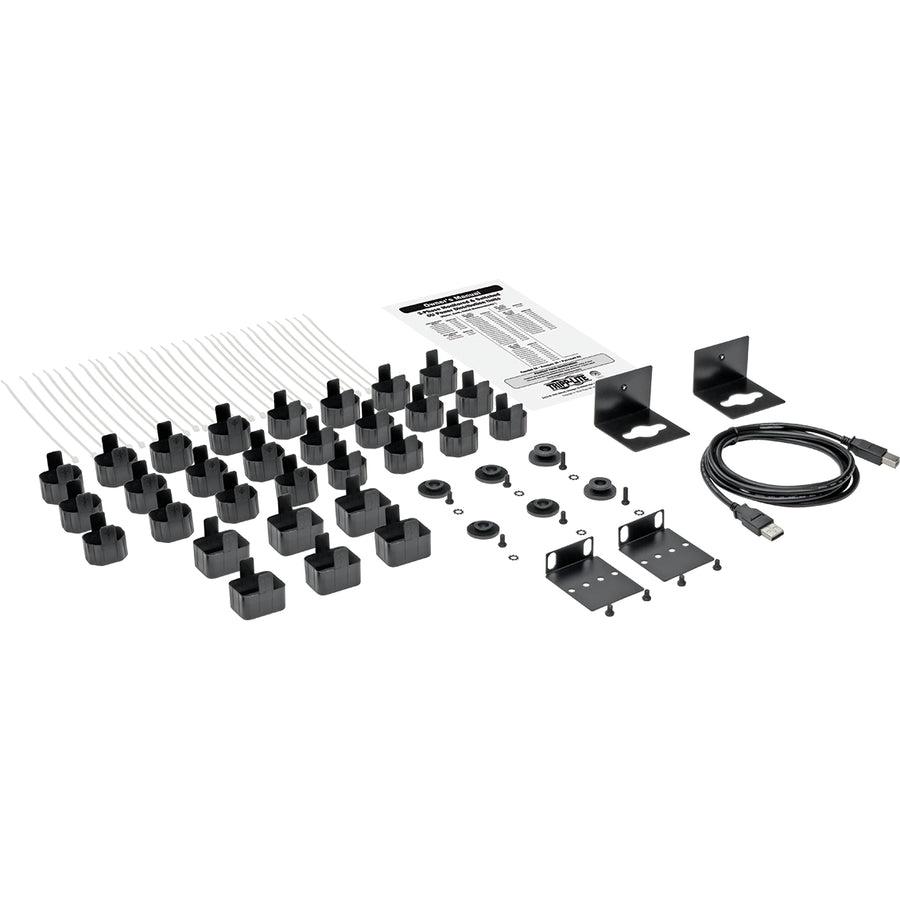

          Package Includes
          PDU3EVSR6G60A 16.2kW 3-Phase Switched PDU
          Built-in LX Platform interface
          Configuration cable
          (18) Plug-lock insert sleeves
          Rack-mounting hardware
          Spare mounting buttons
          PDUMVROTATEBRKT mounting bracket accessory
          Owner’s manual
