Tripp Lite 1.9Kw Single-Phase Basic Pdu, 120V Outlets (14 5-15/20R), L5-20P/5-20P Adapter, 15Ft Cord, 0U Vertical

Description :

1.9kW Single-Phase Basic PDU, 120V Outlets (14 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical

Tripp Lite 1.9kW Single-Phase Basic PDU, 120V Outlets (14 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 14 AC outlet(s), AC outlet types: NEMA 5–15,NEMA 5–20R, Input connection type: NEMA 5-20P, NEMA L5-20P. Cable length: 4.57 m, Certification: UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada). Nominal input voltage: 100-127 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Width: 38.1 mm, Depth: 41.7 mm, Dimensions (WxDxH): 44.5 x 31.8 x 914.4 mm

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

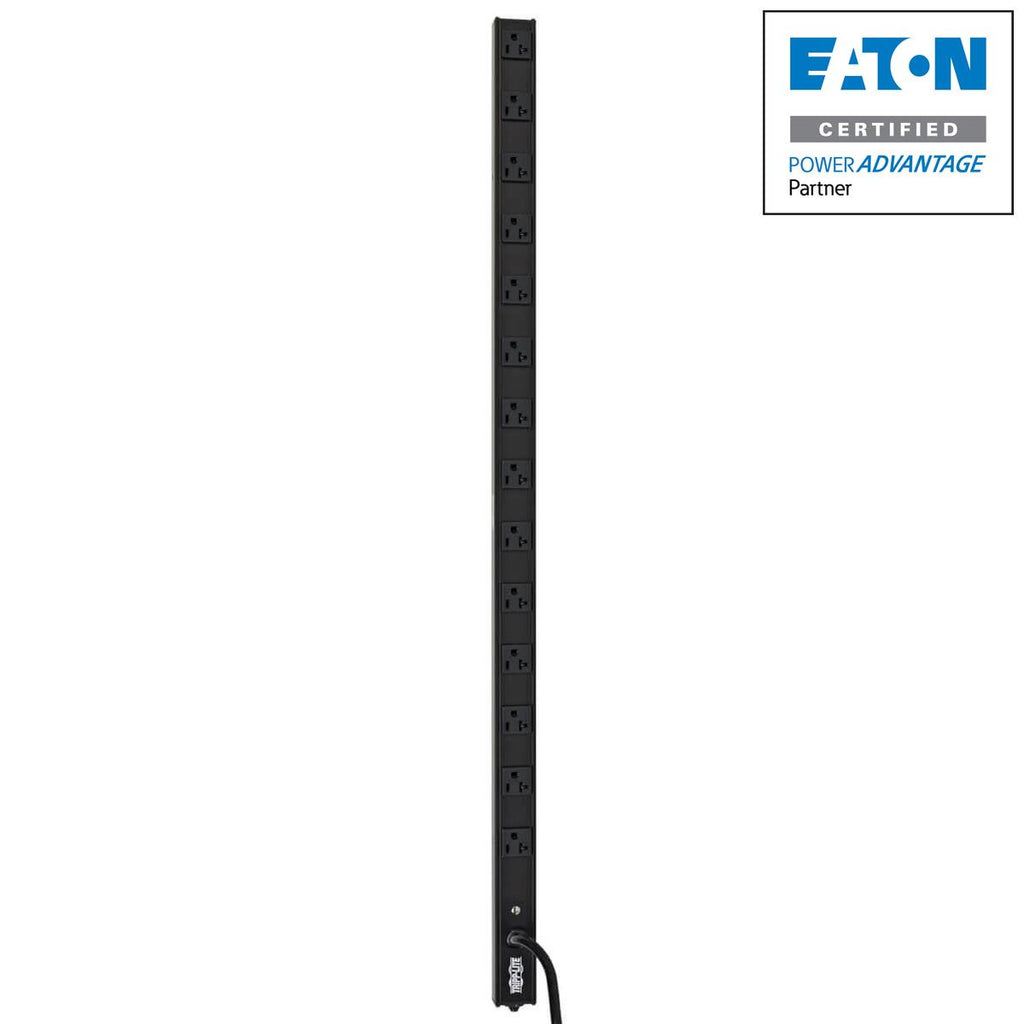

- PDUV20 offers highly reliable 20A 120V power distribution in a 36 in. / .9m 0U vertical rackmount format (Agency de-rated to 16A continuous)
- 14 NEMA 5-15/20R output receptacles
- NEMA L5-20P input plug and 5-20P adapter
- 15 ft. / 4.6m attached line cord

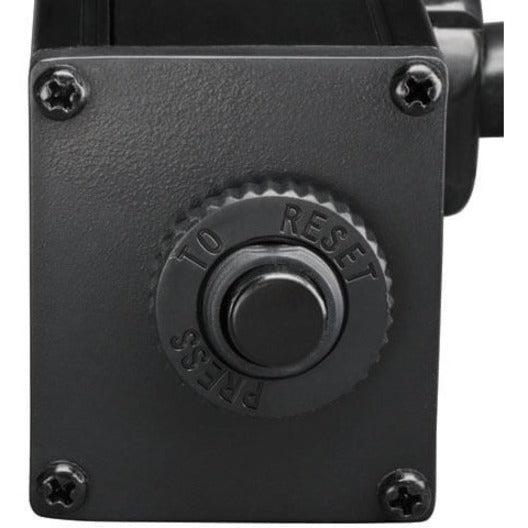

- 20A resettable circuit breaker
- Switch-free design prevents accidental shutoff

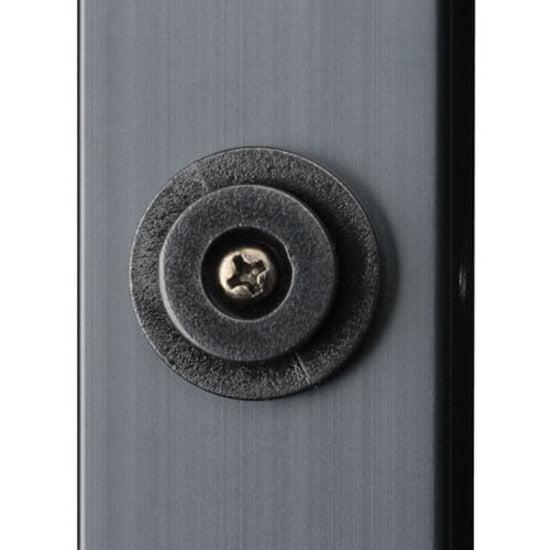

- Toolless mounting buttons enable simple installation in Tripp Lite and other button-mount compatible equipment racks
- Rear facing installation buttons can be relocated to the left or right surface of the PDU for rear, center or forward-facing outlet orientation in compatible racks

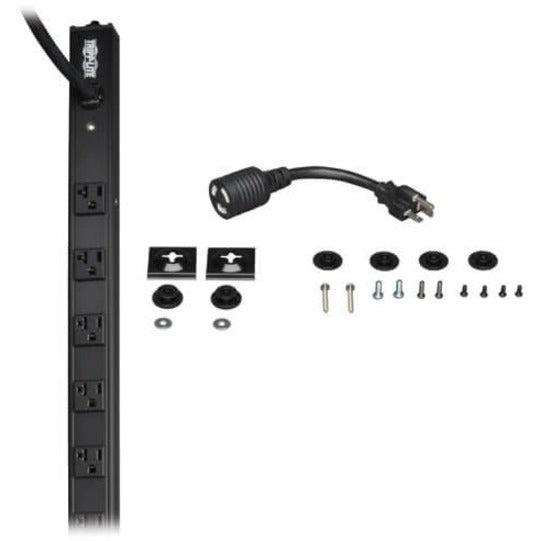

- Included nut and bolt mounting brackets support installation in non button-mount compatible racks, wallmount and raceway applications
