Tripp Lite 1.9 Kw Single-Phase Metered Pdu, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15Ft Cord, 0U Vertical

Description :

1.9 kW Single-Phase Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical

Tripp Lite 1.9 kW Single-Phase Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 28 AC outlet(s), AC outlet types: NEMA 5–15,NEMA 5–20R, Input connection type: NEMA 5-20P, NEMA L5-20P. Cable length: 4.6 m, Certification: UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada). Nominal input voltage: 100-127 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Width: 38.1 mm, Depth: 41.7 mm, Dimensions (WxDxH): 44.5 x 31.8 x 1524 mm

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

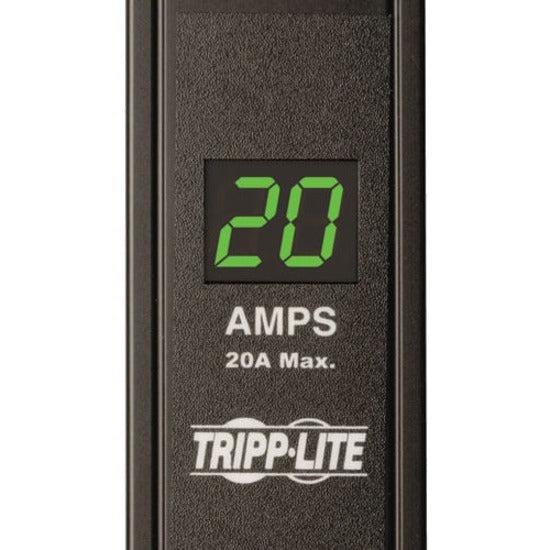

- Two-digit lighted meter reports combined total output current in amps

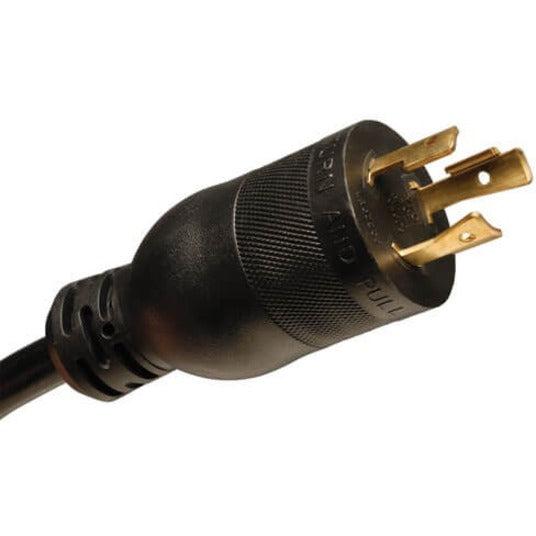

- Attached NEMA L5-20P input plug with 15ft / 4.6m line cord and 5-20P adapter

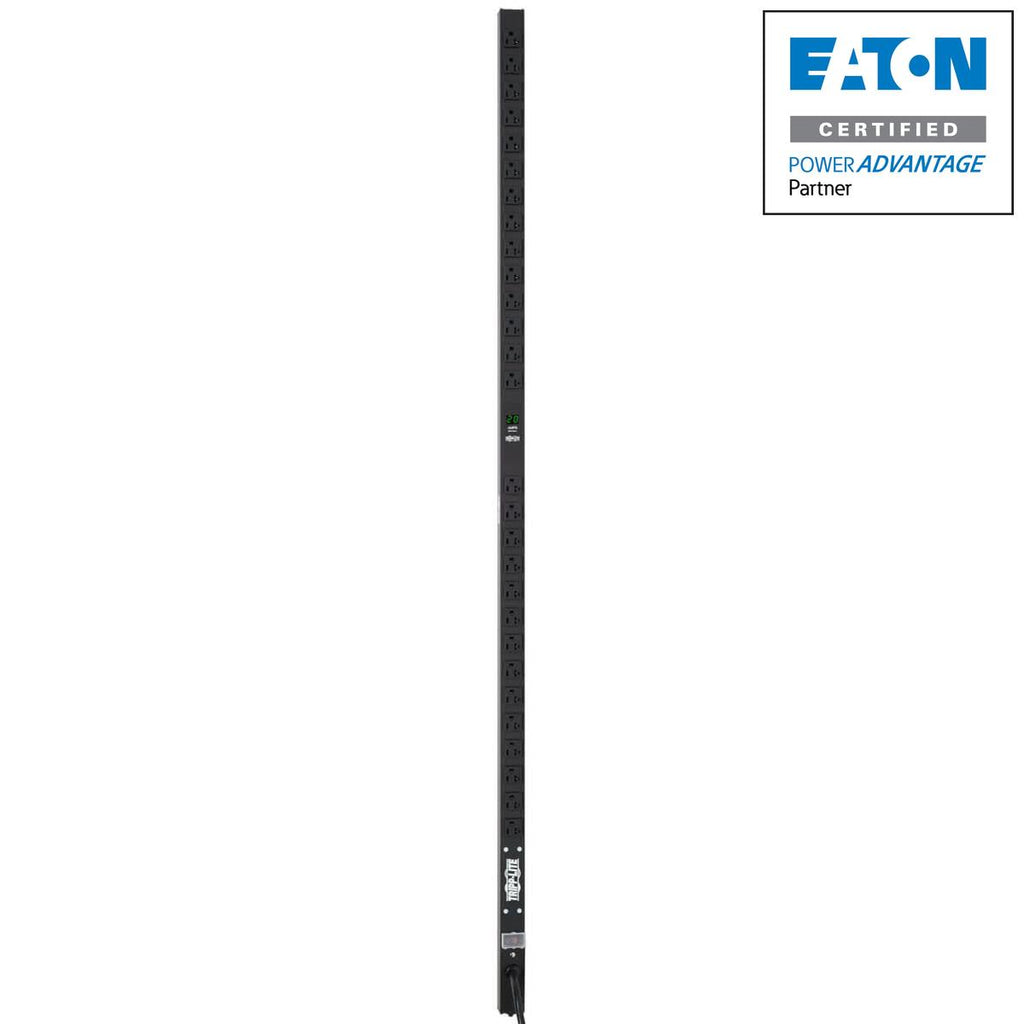

- 0U 60in / 152cm vertical rackmount format installs using no rack spaces
- 28 NEMA 5-15/20R outlets

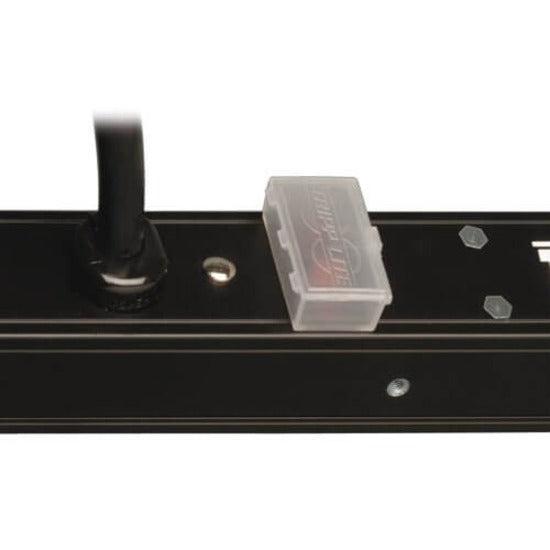

- Includes 20A circuit breaker and lighted power switch inside a transparent protective cover
- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
