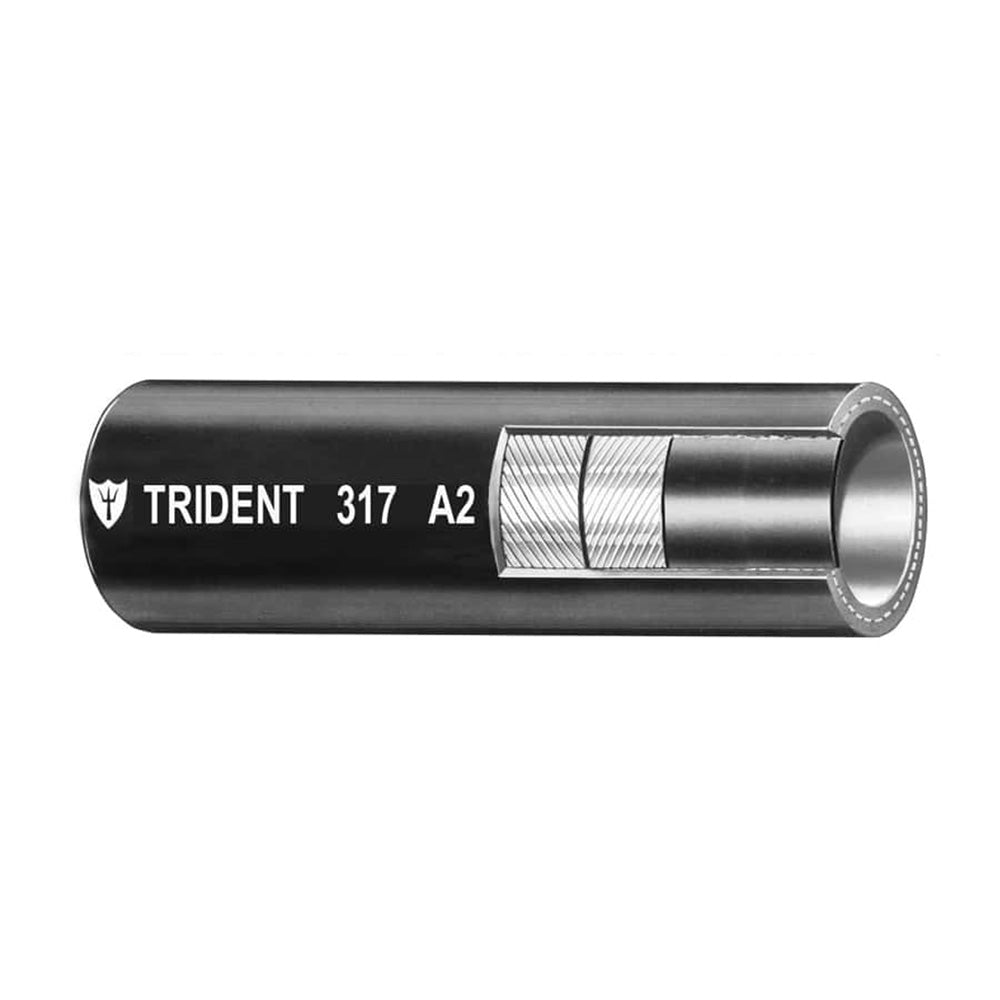

Trident Marine 5/8" x 50' Boxed Type A2 Fuel & Vent Line Hose - Black

Description :

5/8" x 50' Boxed Type A2 Fuel & Vent Line Hose - Black

Trident 5/8” A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.

Features:

• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also provides excellent bend-ability
• NMMA Type Accepted & CE certified

Application:

• Fuel Hose for vent and diesel distribution
• For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
• Length: 50 ft. (15 m) Boxed

Specifications:

• Inner Diameter: (inch) 5/8" / (mm) 15.9
• Outer Diameter: (inch) 0.960 / (mm) 24.4
• Burst Pressure: (psi) 200 / (mpa) 1.38
• Working Pressure: (psi) 50 / (mpa) 0.34
• Bend Radius: (inch) 3" / (mm) 76.2
• Weight: (lb/100 ft.) 25.84 / (kg/m) 11.72

*The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2
