Description :
1x Gigabit data/power in, 1x Gigabit data out, 1x Power out, LEDTrendnet TPE-104GS. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x, Cabling technology: 10/100/1000Base-T(X), Duplex system: Full, Half. Product colour: Black, Certification: CE, FCC. Input voltage: 48 DC, Output voltage: 5, 7.5, 9, 12 V, Output current (5V): 2 A. Width: 70 mm, Depth: 45 mm, Height: 25 mm

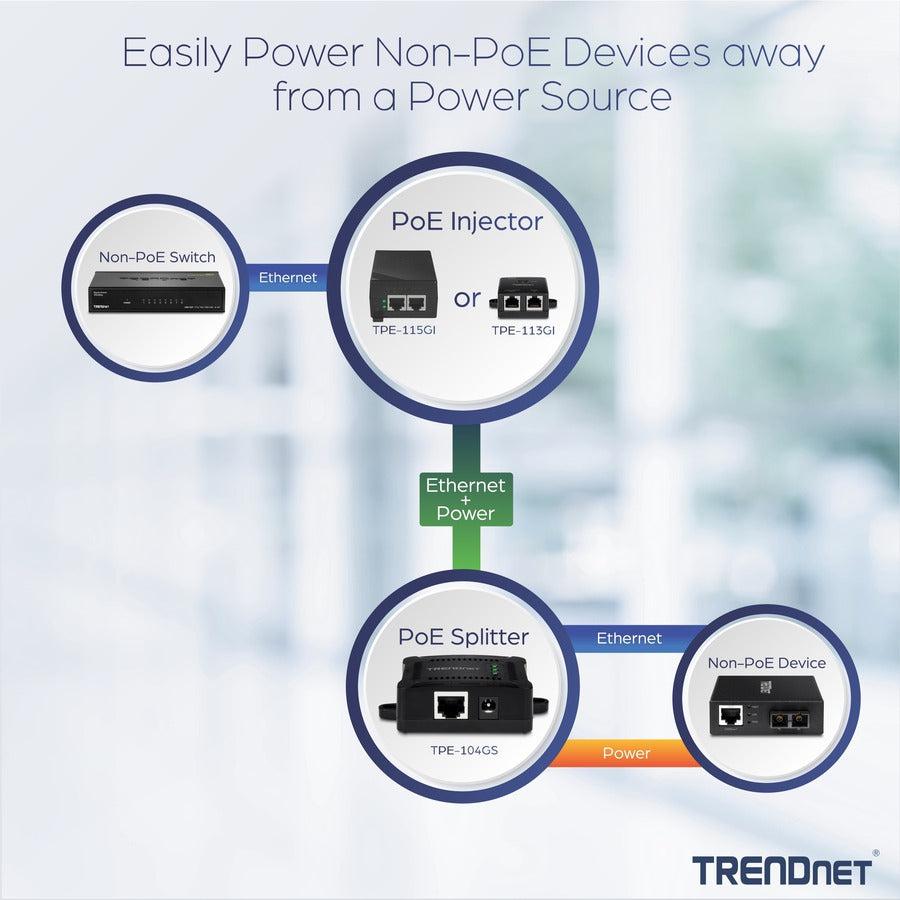

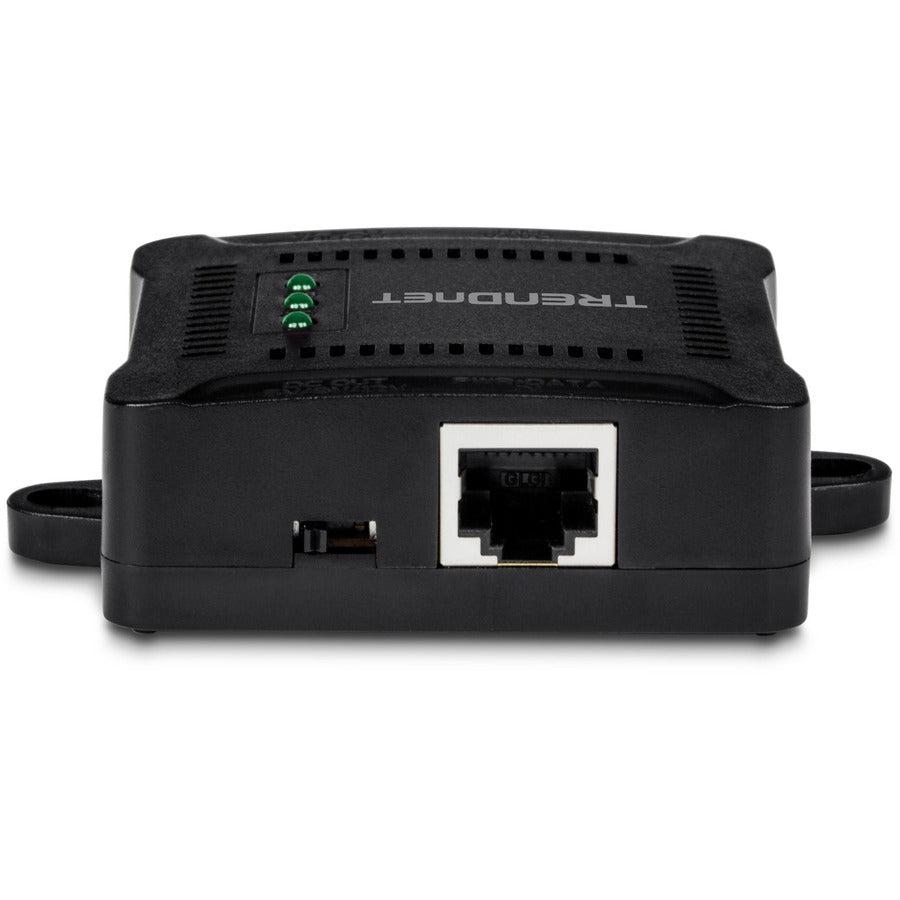

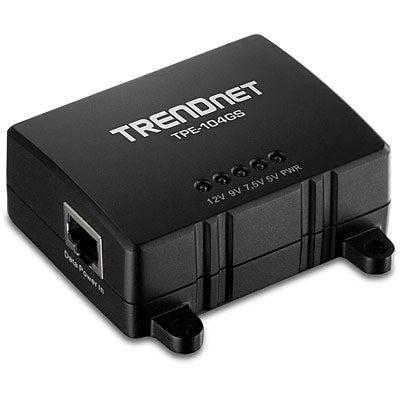

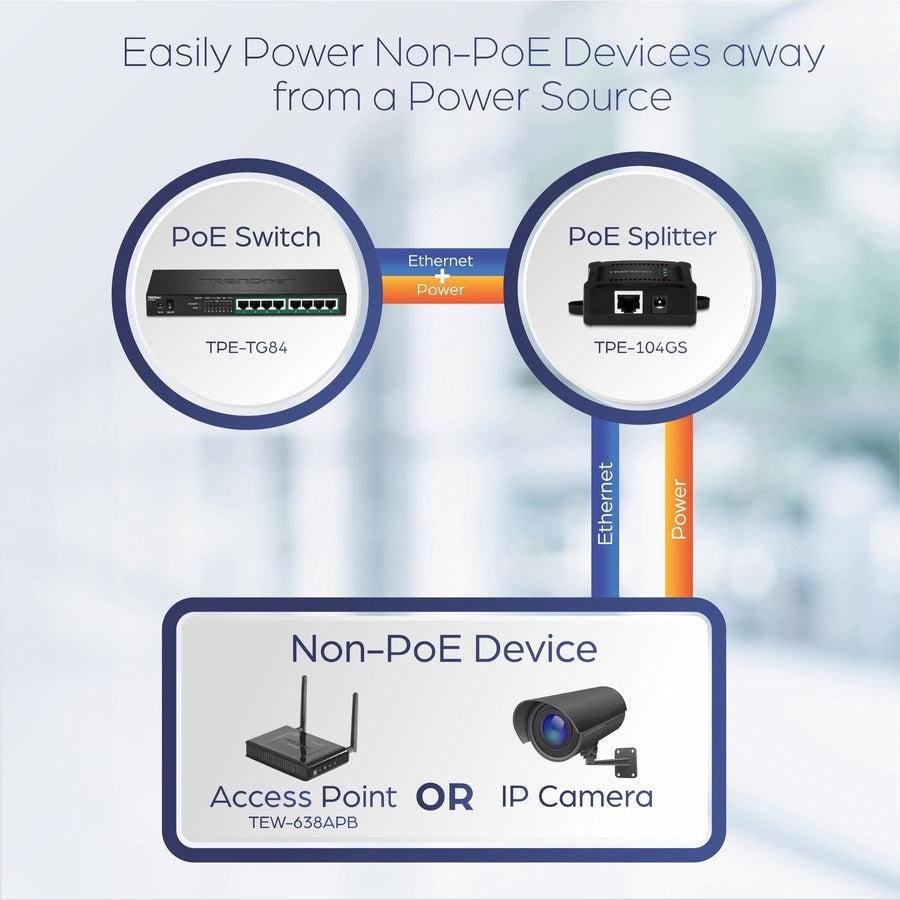

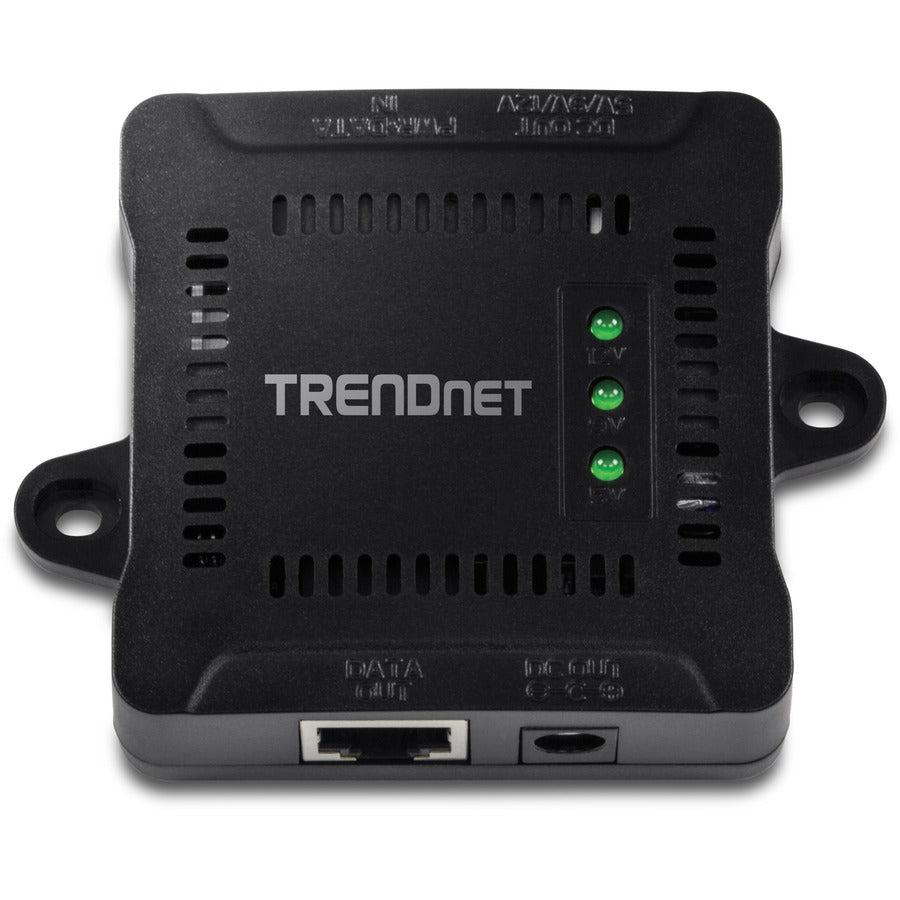

TRENDnet’s Gigabit PoE Splitter, model TPE-104GS, networks a non-PoE device in a remote location using a PoE network connection. The TPE-104GS splits a Gigabit PoE connection into separate power and Gigabit data sources. A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V, or 12 V in order to match non-PoE device power requirements. The included 2 and 2.5 mm jumper cables increase power pin device compatibility.
PoE
Compatible with PoE (802.3af ) network connections.
Adjustable Dip Switch
A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V, or 12 V in order to match non-PoE device power requirements.

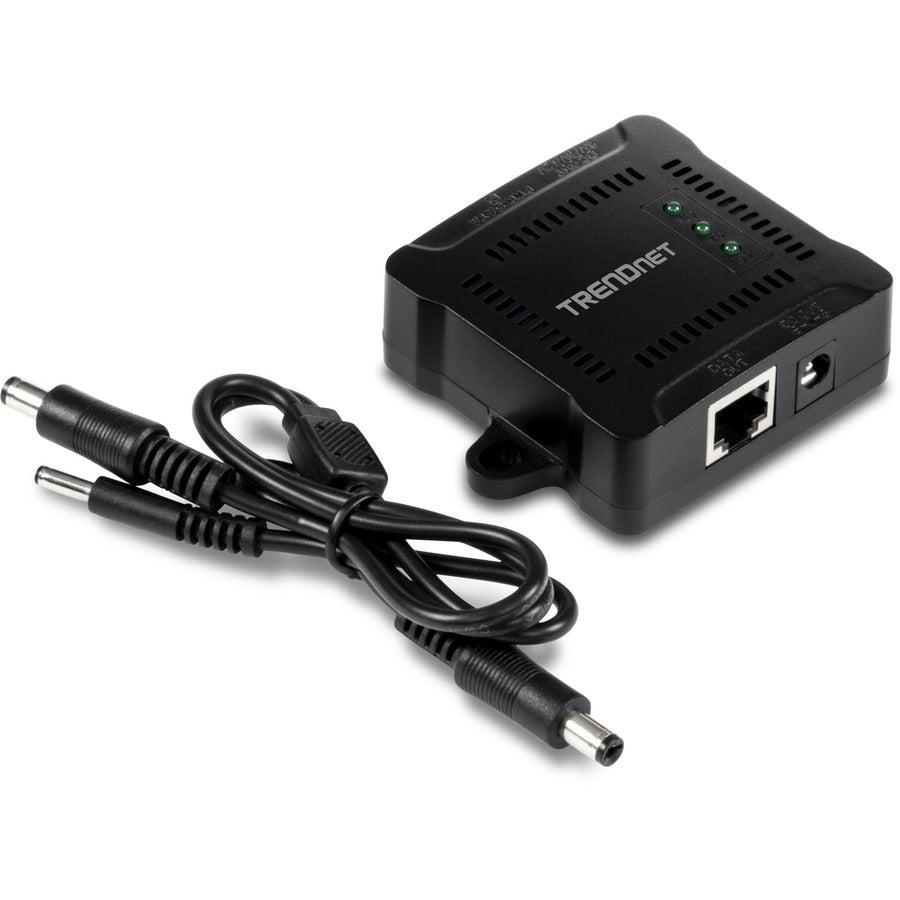

Jumper Cables
The included 2 and 2.5 mm jumper cables increase power pin device compatibility with the non-PoE networked device.
No Power Adapter
The TPE-104GS is powered by the PoE connection.
Mounting
Built-in mounting points increase installation flexibility.
Specifications :
General Information
UPC | 710931160178 |
---|
