Trendnet Ti-Pf11Sfp Network Media Converter 2000 Mbit/S 0.56 Nm Black

Description :

Industrial SFP to Gigabit PoE+ Media Converter

Trendnet TI-PF11SFP. Maximum data transfer rate: 2000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Fiber optic connector: SFP, Connectivity technology: Wired. Wavelength: 0.56 nm, Buffer size: 1000 KB, Mean time between failures (MTBF): 500000 h. Product colour: Black, Housing material: Aluminium, International Protection (IP) code: IP30. Input voltage: 48 - 56 V, Power consumption (typical): 2 W, Total Power over Ethernet (PoE) budget: 30 W

TRENDnet’s Industrial SFP to Gigabit PoE+ Media Converter, model TI-PF11SFP, converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for extreme industrial environments. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.

Industrial Applications
Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.

PoE+ Output
Converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.

Extreme Environments
Hardened IP30 converter, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range.

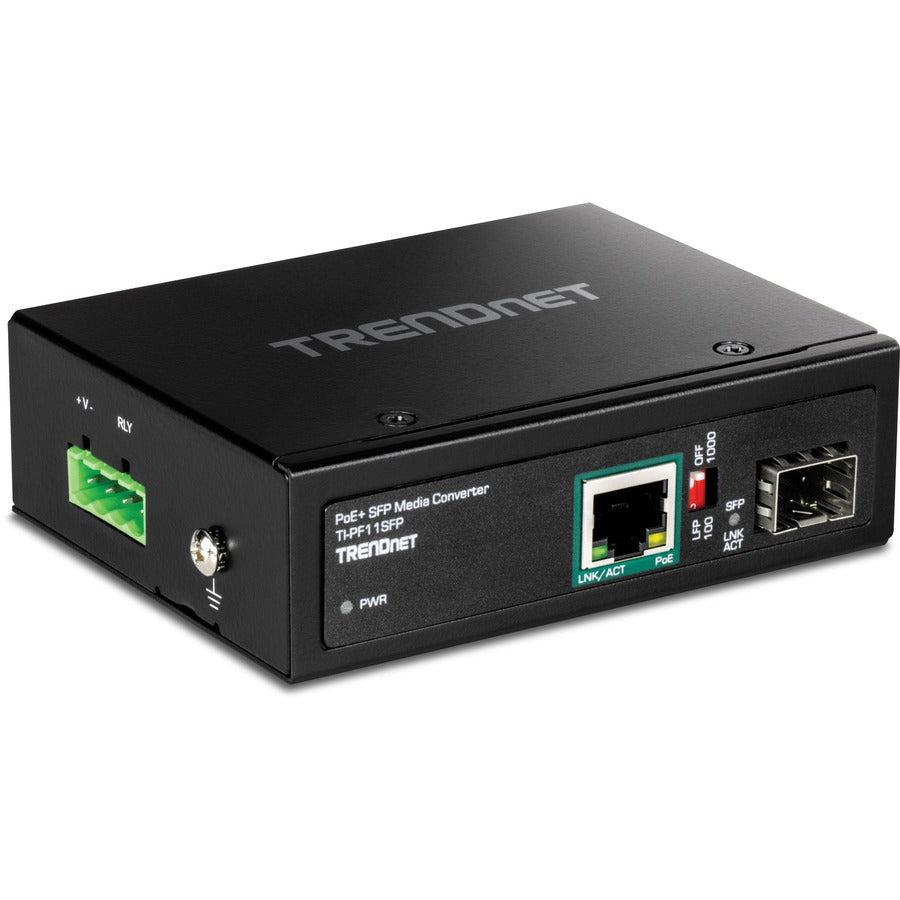

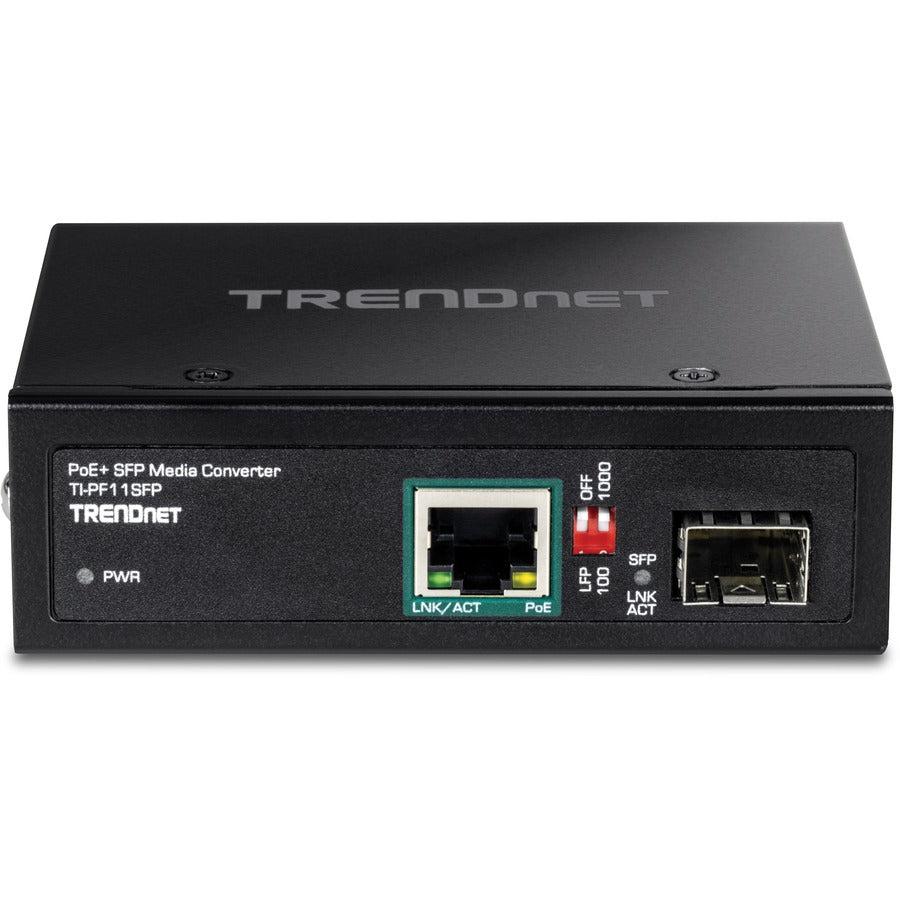

Network Ports
1 x Gigabit PoE+ Ethernet port and 1 x SFP slot

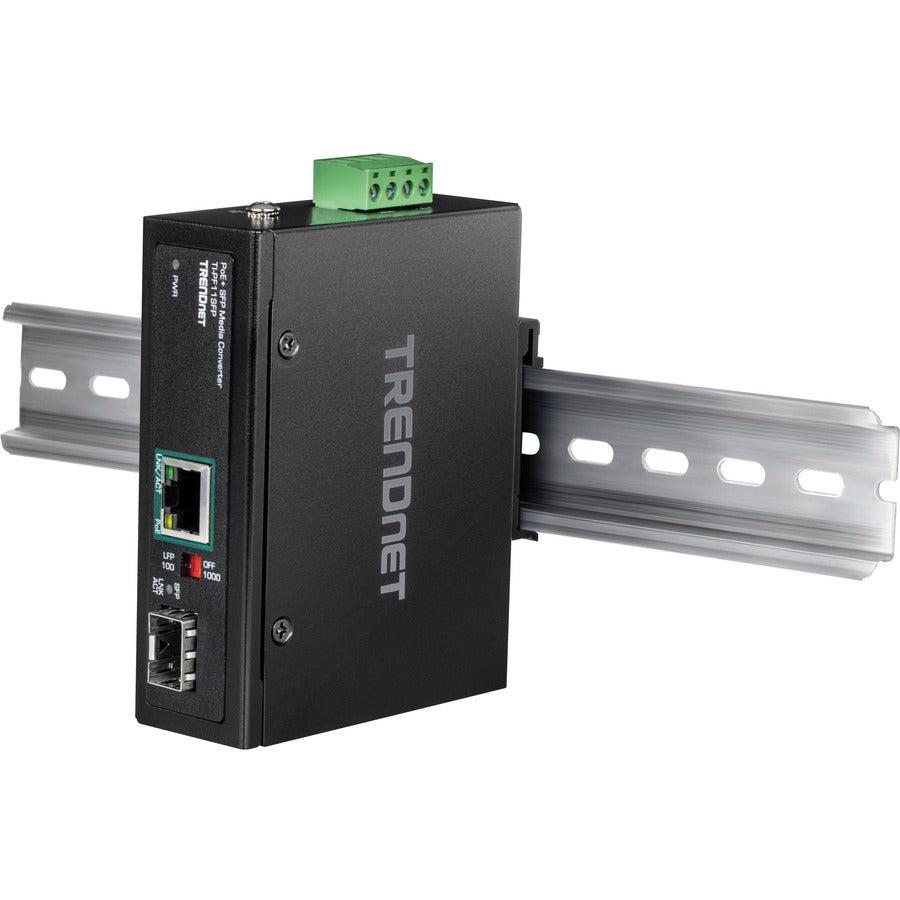

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity
2Gbps switching capacity

Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: model TI-S12048)

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperatures
Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F)

Electromagnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications
Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

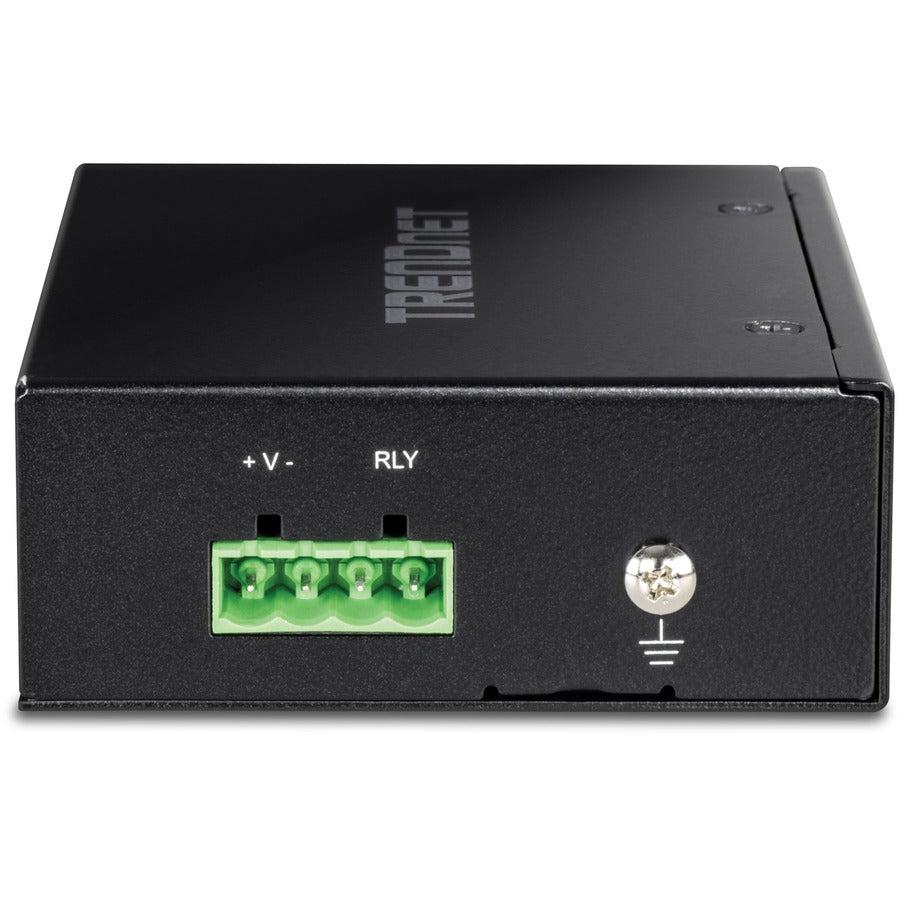

Grounding Point
Grounding point protects equipment from external electrical surges
