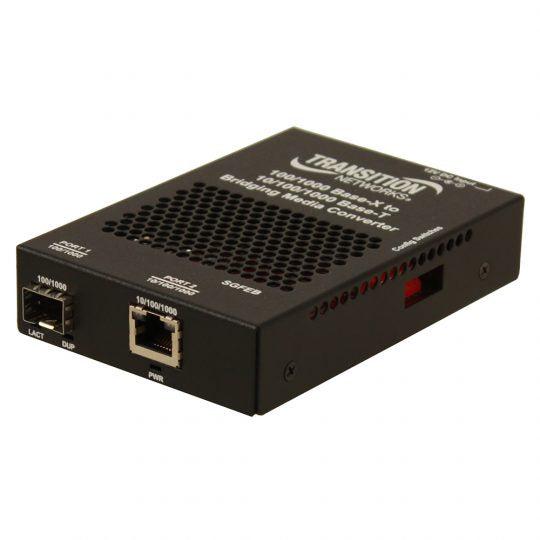

Transition Networks Sgfeb1013-130 Network Media Converter 1000 Mbit/S 850 Nm Multi-Mode Black

Description :

10/100/1000Base-T (RJ-45) to 1000Base-SX 850nm multimode (SC), 550m

Transition Networks SGFEB1013-130. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T,100Base-T,1000Base-T, Converter output interface: 1000Base-SX. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. Product colour: Black, Certification: EN55022, EN55024, UL60950. Input voltage: 24 V, Power consumption (typical): 2.2 W

The SGFEB provides a cost effective method for integrating 1000Base-SX/LX fiber into a 10/100/1000Base-T copper environment. Deploying fiber into today’s networks provides the ability to transmit data over significantly longer distances than is possible on copper. Fiber also protects your data from external sources of noise and interference, improving network performance.

Operating at Layer 2, this converter not only converts copper to fiber, it also does Rate conversion, converting 10/100/1000 copper to 1000Base fiber.
