Transition Networks

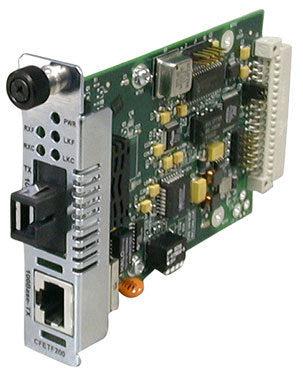

Transition Networks Point System Network Media Converter Internal 100 Mbit/S Single-Mode Green, Grey

SKU: CFETF1019-205

Regular price $454.14
Regular price Sale price $454.14
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

          100BASE-TX/100BASE-FX, 1 x RJ-45, 1310nm TX, 1550nm RX, SF, SM, 1 x LC, 20km Max

          Transition Networks Point System. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100Base-FX. Fiber optic connector: LC, Connectivity technology: Wired. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Tx power (min): -15.2 dBmW. Product colour: Green, Grey, Certification: CISPR/EN55022 Class A & B, FCC Class A & B, CE. Power consumption (typical): 3.4 W

          Features:

          - Round trip delay of only 40 bit times—far below the Class II rating of 92 bit times.
          - Auto-Negotiation (802.3u). Allows devices to perform automatic configuration to achieve the best possible mode of operation over a link.
          - AutoCross. Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.
          - Link Pass Through. Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal.
          - Far End Fault (FEF). A troubleshooting feature that is generally used in conjunction with Link Pass Through to notify both end devices of a loss of link.
          - Automatic Link Restoration. Transition Networks's converters will automatically re-establish link in all network conditions.
          - Pause (IEEE 802.3xy). Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed.
          - Remote Firmware Upgrade
          - Point System Chassis. Can be used with any Point System Chassis.
