Transition Networks M.2 Gigabit Ethernet Fiber Network Interface Card Nm2-Gxe-2230-Lc-01

Description :

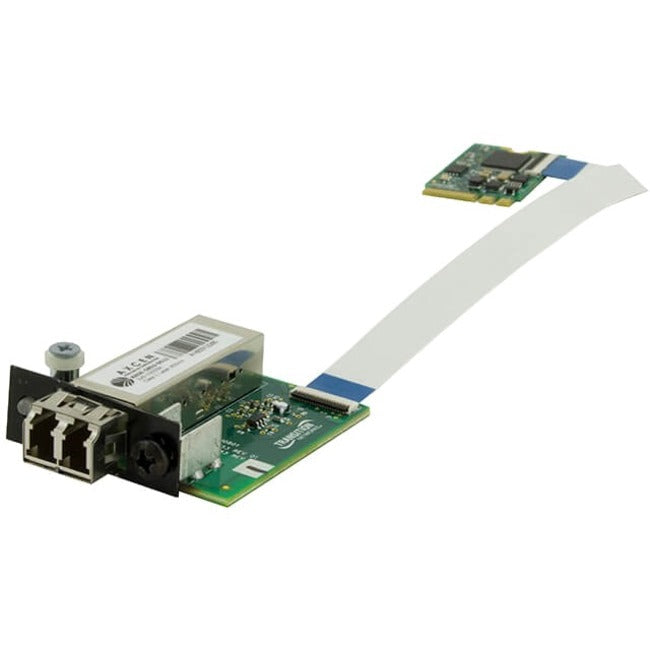

Transition Networks M.2 Gigabit Ethernet Fiber Network Interface Card (NIC) provides a fiber optic interface for the Dell OptiPlex™ 7040 and 7050 Micro PCs and the Wyse 7000 Series thin clients. The NM2-GXE-2230-xx-01 Series consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "E key" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The fiber optic adapter is available with either a 1000Base-SX LC optic or open SFP (SFP module sold separately).

• PCI Express M.2 compliant


• A + E keyed M.2 interface


• Full duplex


• IPv6 Capable


• Supports PXE boot


• Jumbo frame support 9014 bytes


• 1000Base-SX multimode LC fiber connector or open SFP interface

Product Type: Gigabit Ethernet Card
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: Taiwan
Product Series: NM2-GXE-2230-xx-01
Brand Name: Transition Networks
Manufacturer: Transition Networks, Inc
Product Model: NM2-GXE-2230-LC-01
Product Name: M.2 Gigabit Ethernet Fiber Network Interface Card
Device Supported: Server
Manufacturer Part Number: NM2-GXE-2230-LC-01
Manufacturer Website Address: http://www.transition.com
Packaged Quantity: 1
Limited Warranty: Lifetime
Weight (Approximate): 1.60 oz
