Description
Specifications
Description :

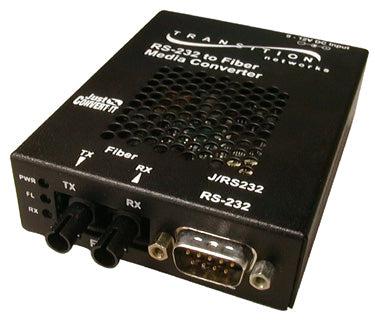

Media Converter, DB-9 (female) [15 m/49 ft.], 1300nm multimode (SC) [2 km/1.2 mi.], EUTransition Networks J/RS232-CF-01(SC). Dimensions (WxDxH): 76 x 100 x 25 mm. Certification: FCC A, CISPR/EN55022 A, EN55024, EN60950, CE, Safety: UL, CSA
Transition Networks’s ”Just Convert-IT™” serial RS232 to Fiber Media Converter is an inexpensive, no frills way to extend the distance between serial connections with the use of fiber optic cable. This converter supports full or half-duplex data transmission at speeds up to 120Kb/s. Unit and Port LEDs allow for quick status information on the converter.
- Offered with either a male or female connector
- Full/Half-duplex transmission at speeds up to 120Kb/s
- Fiber LED lights to show link with or without data transmission
Specifications :
General Information
Manufacturer | Transition Networks, Inc |
---|---|
Manufacturer Part Number | J/RS232-CF-01(SC)-NA |
Manufacturer Website Address | http://www.transition.com |
Brand Name | Transition Networks |
Product Line | Just Convert-IT |
Product Name | Just Convert-IT RS232 Copper to Fiber Stand-Alone Media Converter |
Product Type | Transceiver/Media Converter |
UPC | 648177013470 |
Height | 1" |
---|---|
Width | 3" |
Depth | 3.9" |
Limited Warranty | Lifetime |
---|
![Transition Networks J/Rs232-Cf-01(Sc) Serial Converter/Repeater/Isolator Rs-232 Fiber (Sc)](http://tecisoft.com/cdn/shop/products/Transition-Networks-JRS232-CF-01SC-serial-converterrepeaterisolator-RS-232-Fiber-SC.jpg?v=1681937105&width=1445)
