Transition Networks

Transition Networks C3210-1040 Network Media Converter Internal 1000 Mbit/S

Transition Networks C3210-1040 Network Media Converter Internal 1000 Mbit/S

SKU:C3210-1040

Regular price $336.43
Regular price Sale price $336.43
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          10/100/1000BASE-T (RJ-45) [100 m/328 ft.], 100BASE Open SFP

          Transition Networks C3210-1040. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3z. Fiber optic connector: SFP, Connectivity technology: Wired. Maximum transfer distance: 100 m. Certification: CISPR/EN55022 A, EN55024, EN61000, FCC A, CE. Power consumption (typical): 3.6 W

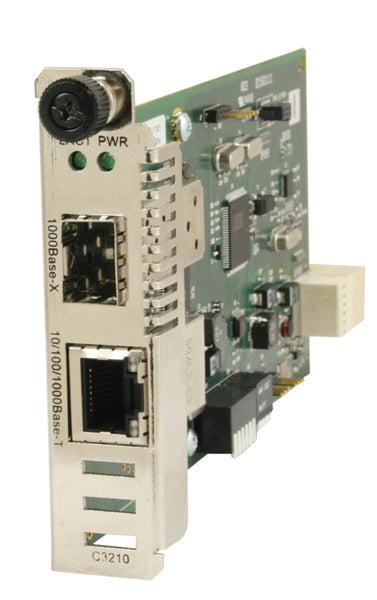

          The ION C3210 device provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports allowing users to integrated fiber optic cabling into 10/100/1000Base-T copper environments.

          - Intergrate fiber into copper based networking environments
          - Can be used in any ION Platform Chassis
          - Bridging legacy 10/100 devices into a Gigabit Backbone
          - Secure Uni-directional transmission
          - Standards based, will link with any standard 10/100/1000Base-T and any standard 1000Base-SX or LX ports

          - Copper and Fiber Auto-Negotiation
          - Switch Selectable Speeds
          - AutoCrossâ„¢
          Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.
          - Link Pass Through
          Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal.
          - Remote Fault Detect
          - Pause (IEEE 802.3xy)
          Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed.
          - Automatic Link Restoration
          Transition Networks's converters will automatically re-establish link in all network conditions.
          - IEEE 802.1P QoS, IPv4 TOS/Diffserv, IPv6 traffic class
          - IEEE 802.1q VLAN, tagging and doubling tagging (Q in Q)
          - Remote Firmware Upgrade
          - Virtual Cable Test on UTP port
          - Uni-directional data transmission
          - Bandwidth Allocation
          An important feature found on select converters which allows network administrators to set the bandwidth of the converter to 64KB increments via SNMP management.
          - DMI, digital diagnostics per SFF-8472
          - RMON counters for each port

          Specifications :

          General Information

          Manufacturer Transition Networks, Inc
          Manufacturer Part Number C3210-1040
          Manufacturer Website Address http://www.transition.com
          Brand Name Transition Networks
          Product Series C3210
          Product Model C3210-1040
          Product Name C3210-1040 Media Converter
          Product Type Transceiver/Media Converter
          UPC 0648177029389
          Network (RJ-45)Yes
          Height3.4"
          Width0.9"
          Depth6.5"

          Warranty

          Limited WarrantyLifetime
