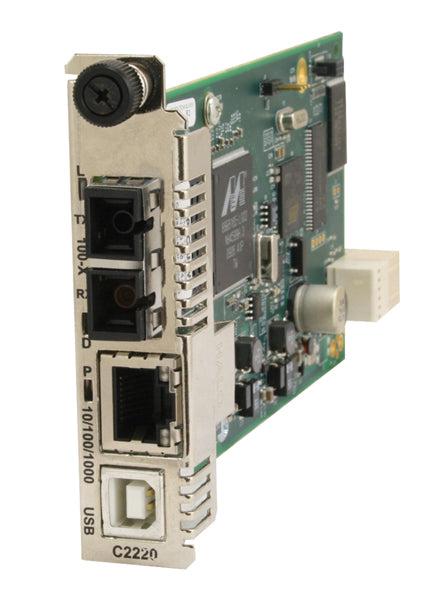

Transition Networks C2220-1040 Network Media Converter Internal 100 Mbit/S

Description :

10/100/1000BASE-T (RJ-45) [100 m/328 ft.], 100BASE-X SFP Slot (empty)

Transition Networks C2220-1040. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Networking standards: IEEE 802.1p,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3ah. Fiber optic connector: SFP, Connectivity technology: Wired. Maximum transfer distance: 100 m. Certification: EN55022 A, EN55024, CE. Power consumption (typical): 4.5 W

The ION 2220 Series of Network Interface Devices (NIDs) are a remotely managed product that offers IP or IP-Less management methods for secure delivery of Ethernet services for business and mobile backhaul applications. With MEF 9, 14 & 21 certification the ION 2220 Series ensures you are compliant with the latest standards. The ION 2220 Series is a 10/100Mbps product with advance features including – IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support and bandwidth allocation.

- 802.3ah Link OAM
- 10K Jumbo Frame Support
- Two selectable Remote Management modes
- IP-Based Remote Management
- In-Band Link OAM 802.3ah (remote device managed by local peer)
- AutoCross™
Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.
- Auto-Negotiation for 10/100BASE-TX
Allows devices to perform automatic configuration to achieve the best possible mode of operations over a link.
- Pause (IEEE 802.3xy)
Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed.
- Transparent Link Pass Through
Transparent Link Pass Through sends a link-loss signal over the fiber, instructing the remote converter to shut down the copper port—thus notifying the end device—while maintaining the fiber link between the two converters.
- Far End Fault (FEF)
A troubleshooting feature that is generally used in conjunction with Link Pass Through to notify both end devices of a loss of link.
- Remote Loopback
This feature puts a converter in a special mode that enables the device to loop back the signal from the RX port to the TX port on either media for testing and troubleshooting purposes.
- Remote Firmware Upgrade
- IEEE 802.1p q VLAN and double VLAN tagging with 4096 VIDs
- VLAN Tunneling
- DHCP client
- SNTP
- TFTP
- Syslog
- IEEE 802.1x
- RADIUS client
- RMON counters for each port
- Bandwidth profiling
- DMI Optical Management
- Cable diagnostic function for TP ports
- SSH
- Telnet
- Command Line Interface (CLI)
- Web management
- Focal Point management
- SNMP v1 & v2c
- USB port for basic setup
- Management VLAN
