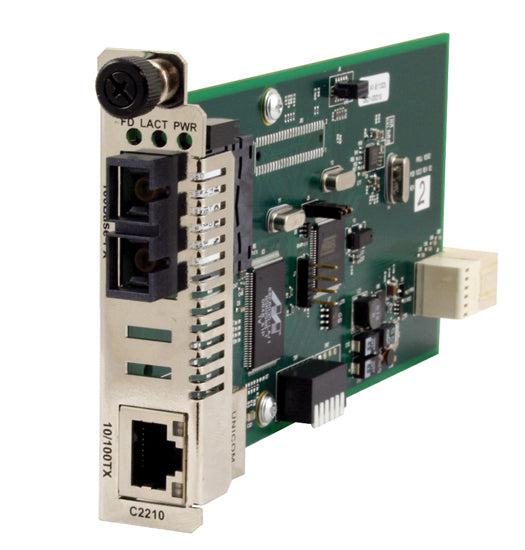

Transition Networks C2210-1011 Network Media Converter Internal 100 Mbit/S 1300 Nm Multi-Mode

Description :

10/100BASE-TX (RJ-45) [100 m/328 ft.], 100BASE-FX 1300nm multimode (ST) [2 km/1.2 mi.]

Transition Networks C2210-1011. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100BASE-FX. Fiber optic connector: ST, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1300 nm, Fiber mode structure: Multi-mode. Certification: CISPR/EN55022 A, FCC A, CE, EN55024. Power consumption (typical): 2.5 W

The ION C2210 device provides an interface between 10/100Base-TX ports and 100Base-FX ports allowing users to integrated fiber optic cabling into 10/100Base-TX copper environments.

- Auto-Negotiation of speed and duplex on TP port
- AutoCross™ on TP port
- Link Pass Through (LPT) fault monitoring
- Far-End-Fault (FEF) detection
- Pause (Software Controlled)
- Automatic Link Restoration
- Remote Firmware Upgrade
- Can be used in any ION Platform Chassis
- Standards based, will link with any standard 10/100Base-TX and any standard 100Base-FX ports
- The following manageable features are available when used in an ION Platform chassis along with an ION Management Module.

Report converter status to chassis management software:
- TP and Fiber Link Status
- Hardware switch settings
- Copper Port Speed
- TP and Fiber Port Duplex
- Fault condition

Write operation includes:
- Power on/off device
- Auto-Negotiation enable/disable
- Force 10 Mbps or 100 Mbps
- Force half or full duplex
- Select advertising modes when Auto-Negotiation is enabled
- LPT enable/disable
- FEF enable/disable
- Pause enable/disable
- AutoCross™ enable/disable
