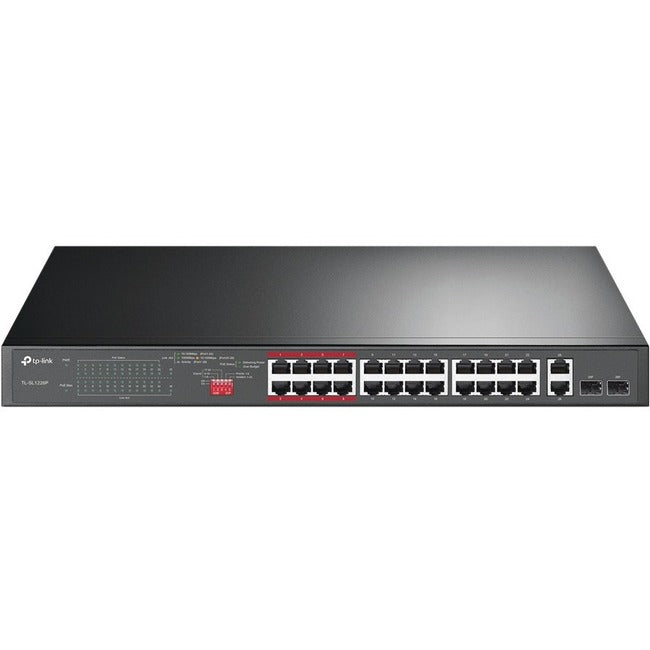

TP-Link TL-SL1226P - 24-Port 10/100Mbps Fast Ethernet PoE Switch

Description :

TP-Link TL-SL1226P - 24-Port 10/100Mbps Fast Ethernet PoE Switch - Limited Lifetime Protection

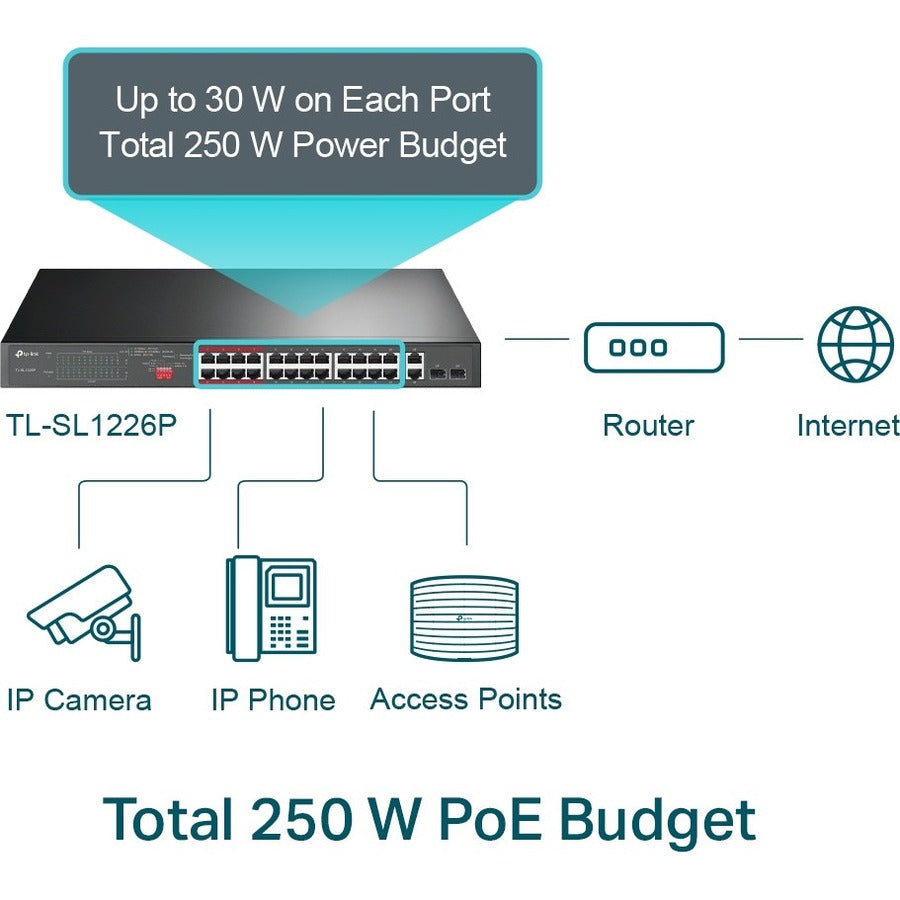

Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24 PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

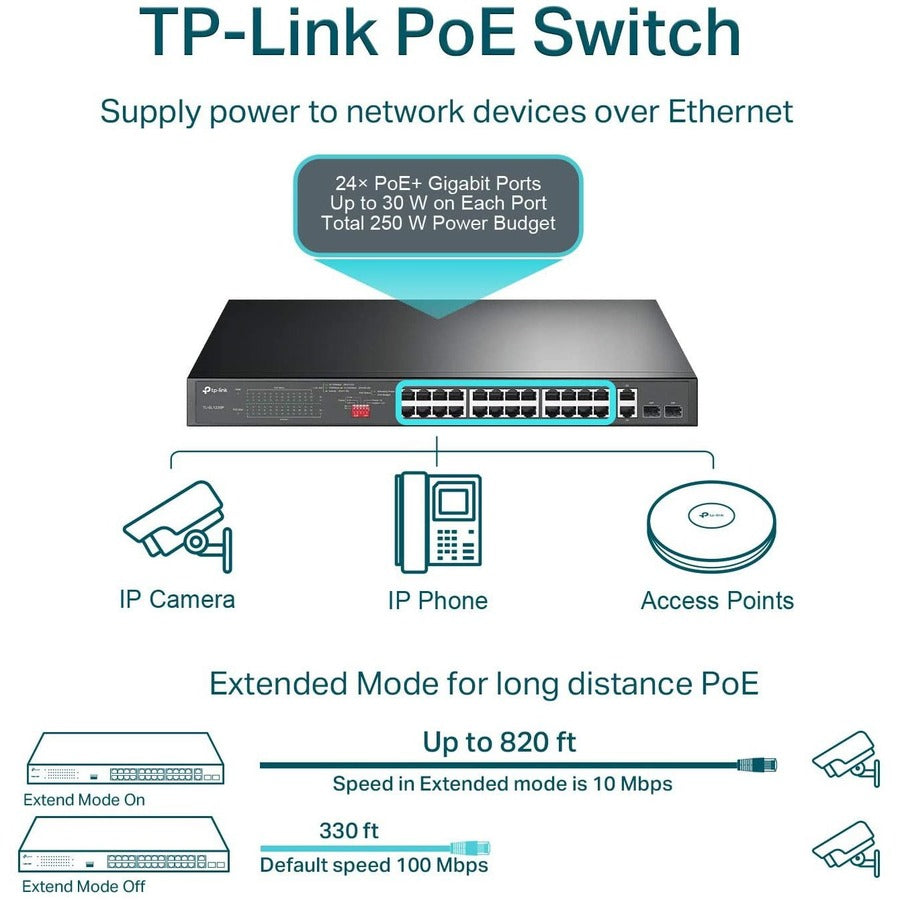

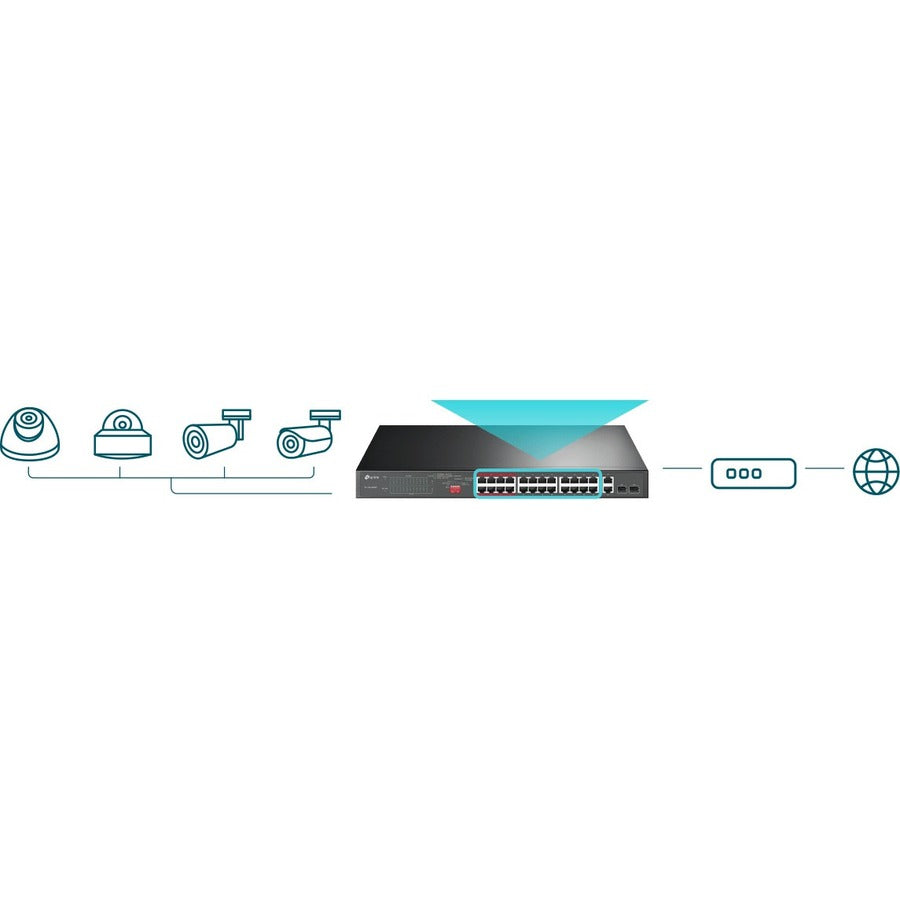

Dedicated Design for IP Surveillance-Up to 250 m Transmission

With extend mode, the PoE transmission distance reaches up to 250 m-perfect for IP Camera deployment in large areas.

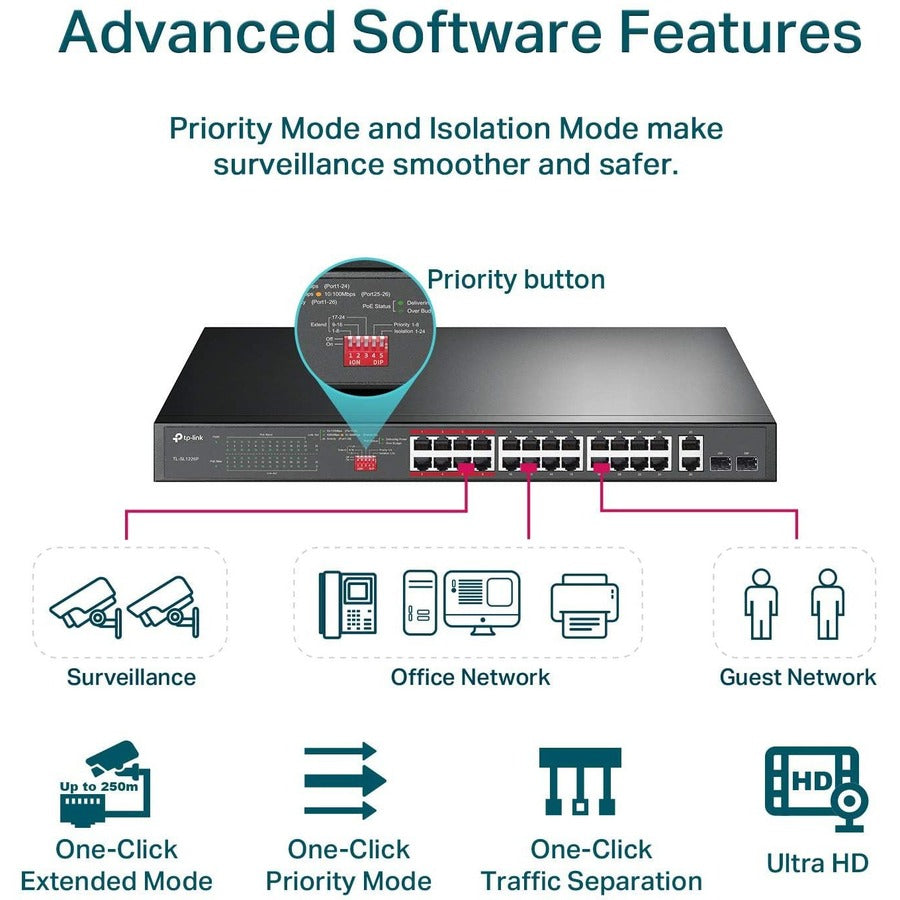

Dedicated Design for IP Surveillance-Higher Performance and Security

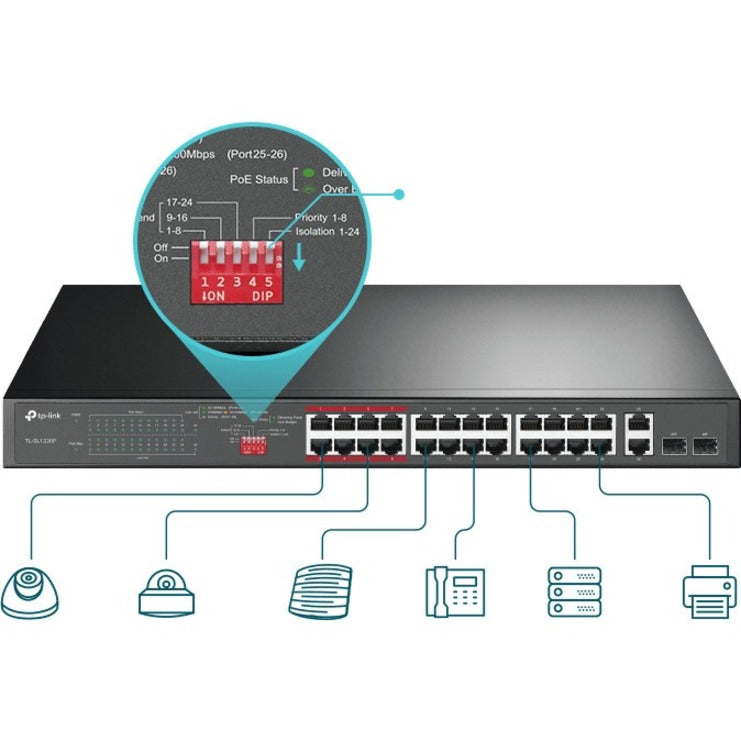

Priority Mode and Isolation Mode make surveillance smoother and safer.

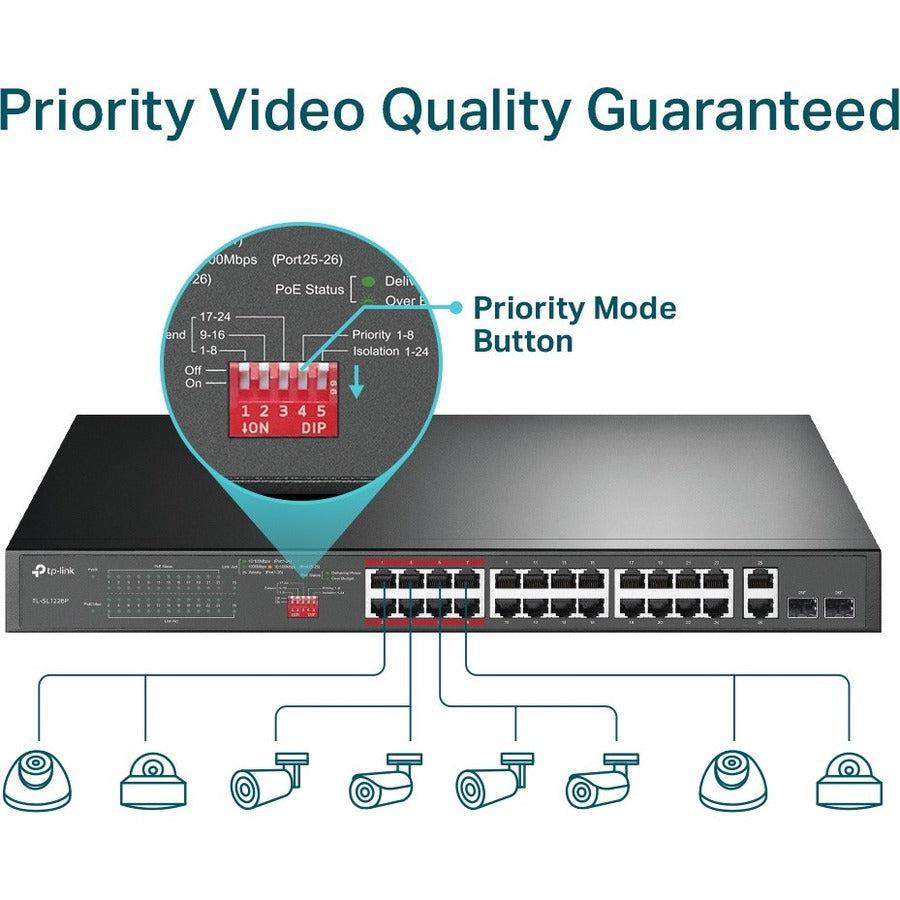

Priority Video Quality Guaranteed

One-Click Traffic Separation for Ports 1-24

With one click, Isolation Mode easily divides traffic for ports 1-24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Smooth HD Video Monitoring

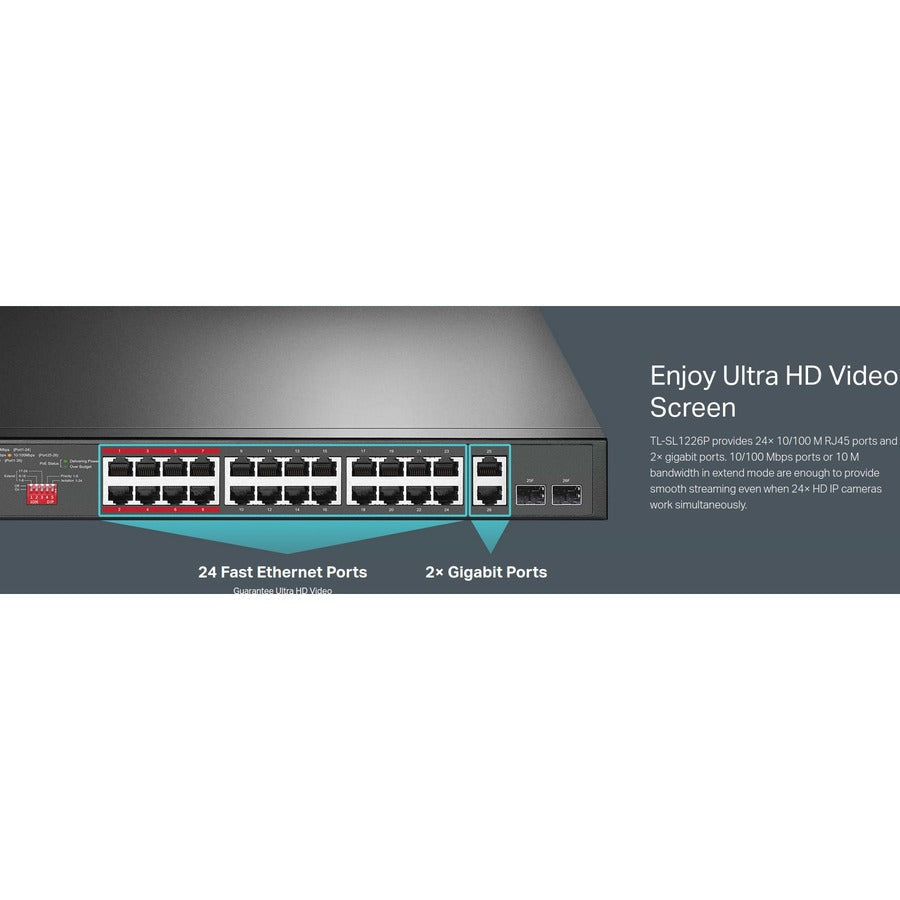

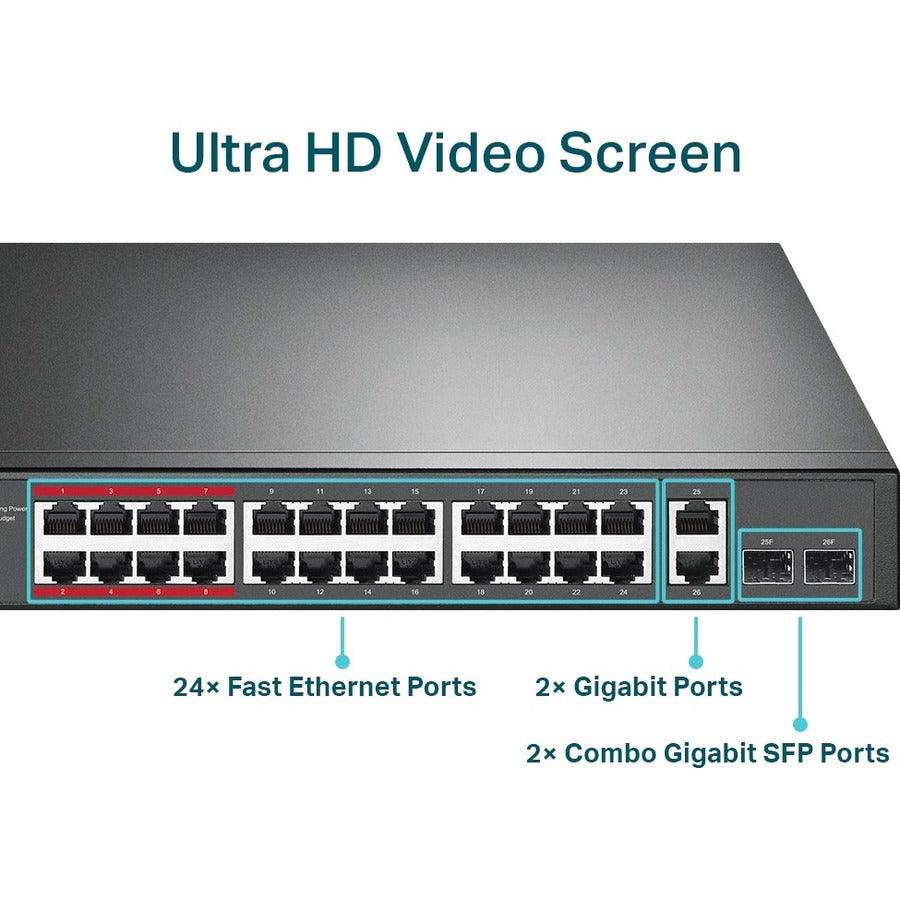

2 gigabit RJ45 ports and 2 combo gigabit SFP ports ensure smooth streaming even when 24 HD IP cameras work simultaneously.

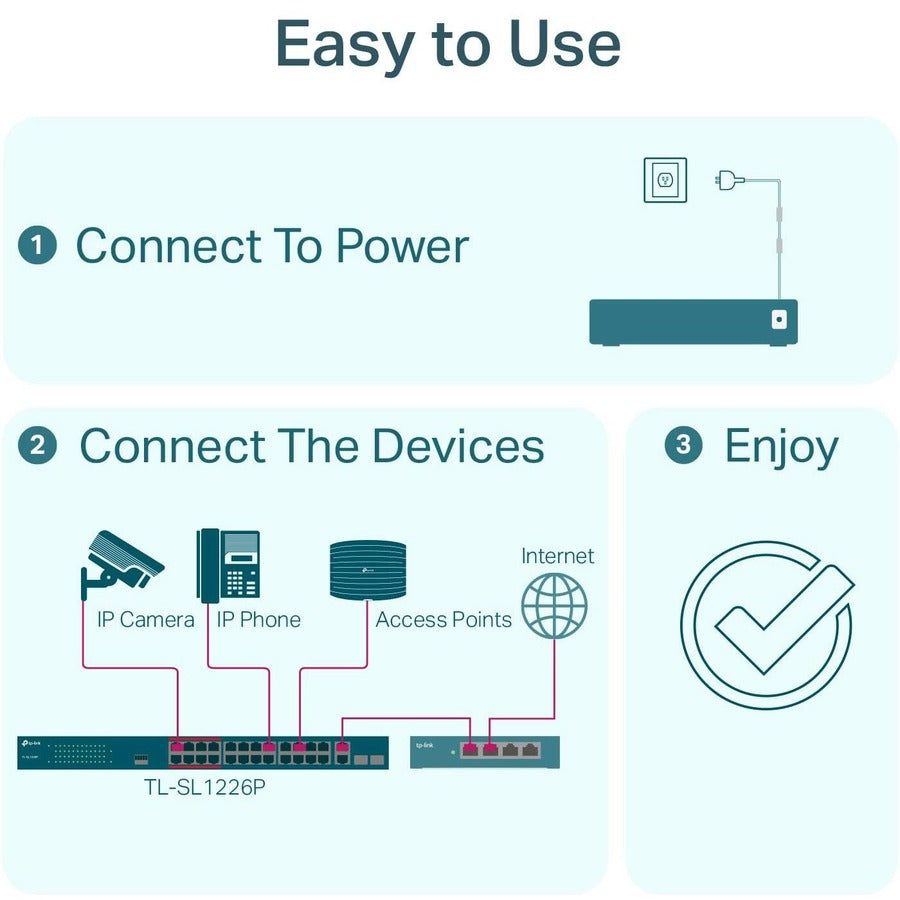

Plug and Play

Intelligent Power Management to Prevent Power Overload

When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports' power to ensure high-priority ports' power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

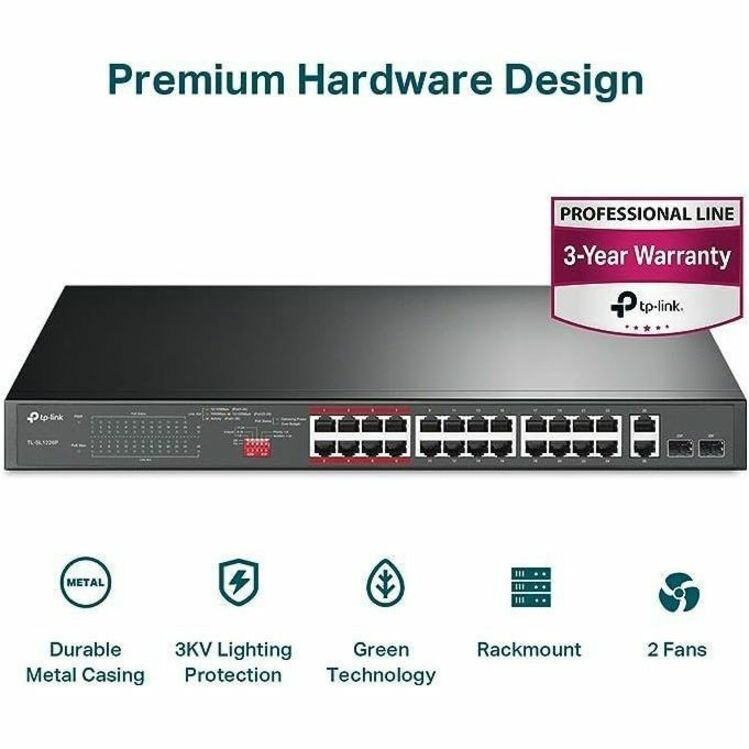

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50?) with reliability.

More from the Manufacturer

• [Flexible Port Configuration] 24 PoE+ 10/100 Mbps RJ45 ports, 2 Gigabit RJ45 Uplink ports, and 2 combo Gigabit SFP slots.


• [Power Over Ethernet] 24 PoE+(802.3at/af) ports providing up to 30W per port, total PoE budget 250W.


• [Plug and Play] Easy setup with no software installation or configuration needed.


• [Extend Mode] Up to 250m data and power PoE transmission range under Extend Mode, ideal for surveillance system (Speed will be downgraded to 10 Mbps).


• [Priority Mode] Support Priority mode for ports 1-8, guarantee high quality of video or voice data transmission.


• [Isolation Mode] Support Isolation Mode to isolate broadcast storm, improve Lan security and data transmission.


• [Limited Lifetime Warranty] Industry leading lifetime warranty and free 24/7 technical support.

Product Type: Ethernet Switch
Product Material: Metal
Brand Name: TP-Link
Manufacturer: TP-LINK Technologies Co., Ltd
Product Model: TL-SL1226P
Product Name: 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
Manufacturer Part Number: TL-SL1226P
Manufacturer Website Address: http://www.tp-link.com/us
Package Contents:

• 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
• Power Cable
• Installation Guide
• 2 x Mounting Brackets and the Fittings
