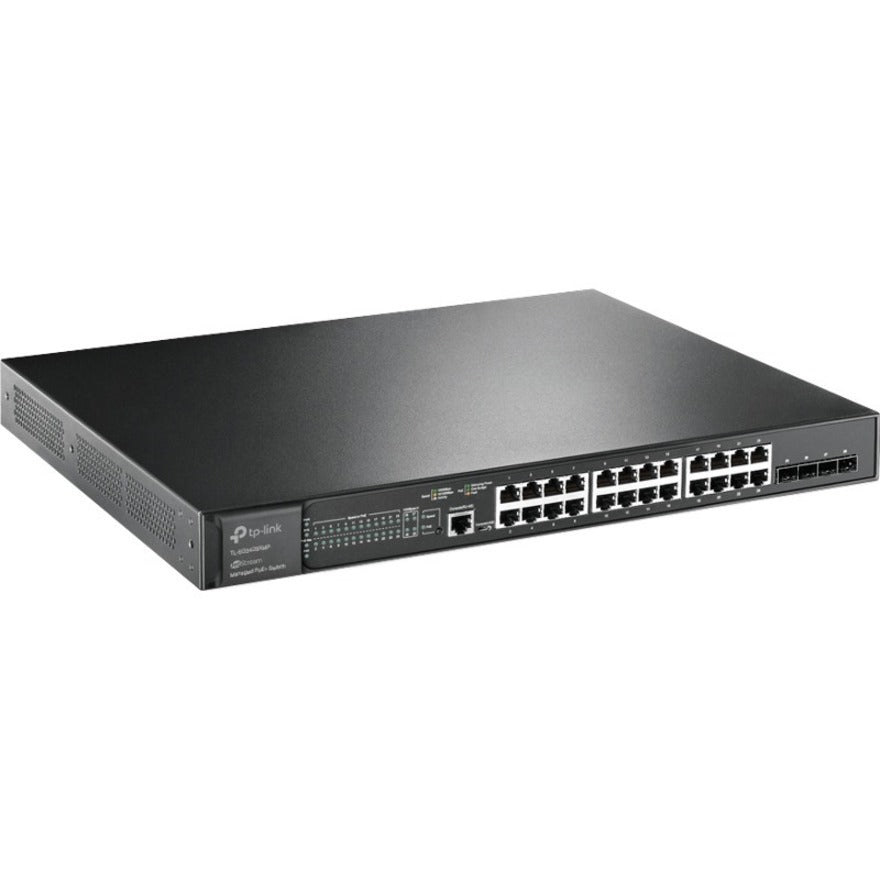

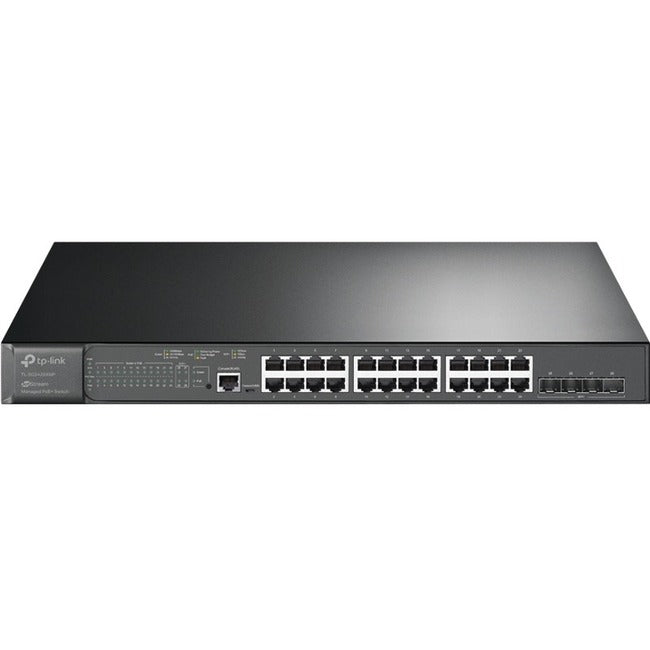

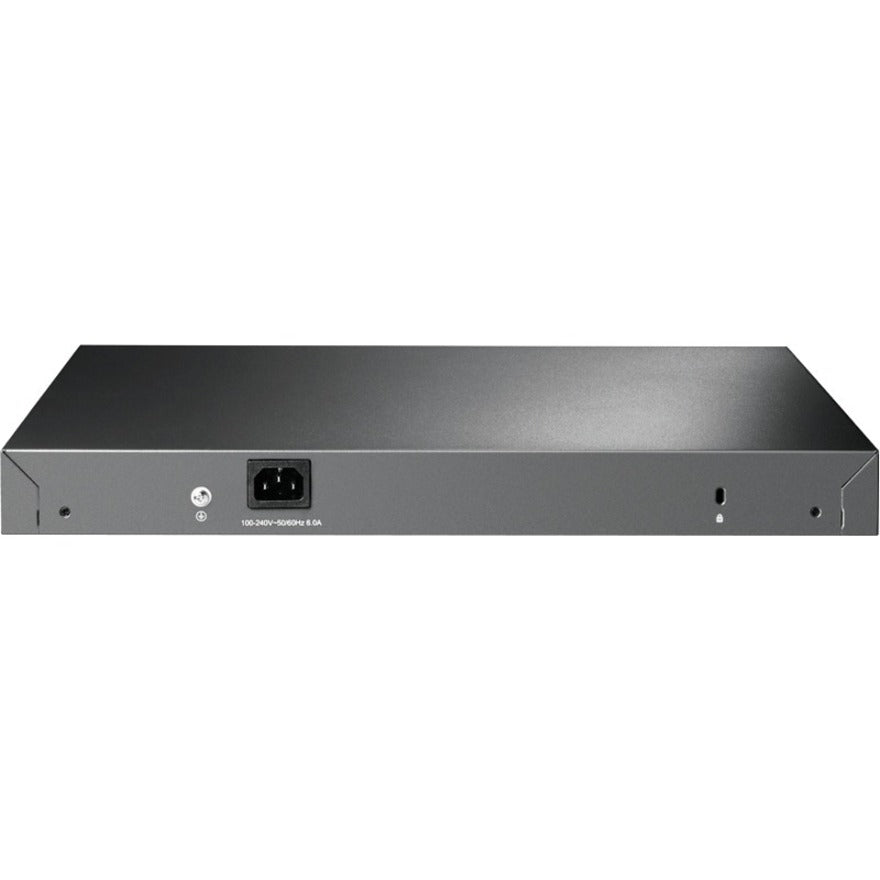

TP-Link TL-SG3428XMP -Jetstream 24 Port Gigabit Smart Managed L2+ PoE switch

Description :

TP-Link TL-SG3428XMP -Jetstream 24 Port Gigabit Smart Managed L2+ PoE switch - Limited Lifetime Protection

10G Uplink Managed Switch with 24 PoE+ Ports for a Complete Omada Network

• 10G Lightning-Fast Uplink Connection
  4 10 Gbps SFP+ Slots for High-Bandwidth Connectivity

• PoE+ Output
  24 Gigabit PoE+ Ports with Total 384 W Power Budget

• Centralized Cloud Management
  SDN Solutions Integration for a Highly Efficient Network

• Advanced L2+ Features
  Static Routing, IGMP Snooping, 802.1Q VLAN and More

Enterprise Switch with 10G Uplink

4 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.

Dedicated 24 PoE+ Ports (384 W Budget) for Numerous Applications

Features 24 802.3af/at compliant PoE+ ports, the switch supports up to 384 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Software-Defined Networking (SDN) with Cloud Access

Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

• Hassle-Free Cloud or On-Premises Controllers

• Multi-Site Cloud Management

• Zero-Touch Provisioning (ZTP)

• Intelligent Monitoring

Advanced L3 Features

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking

Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features

A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS

Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
