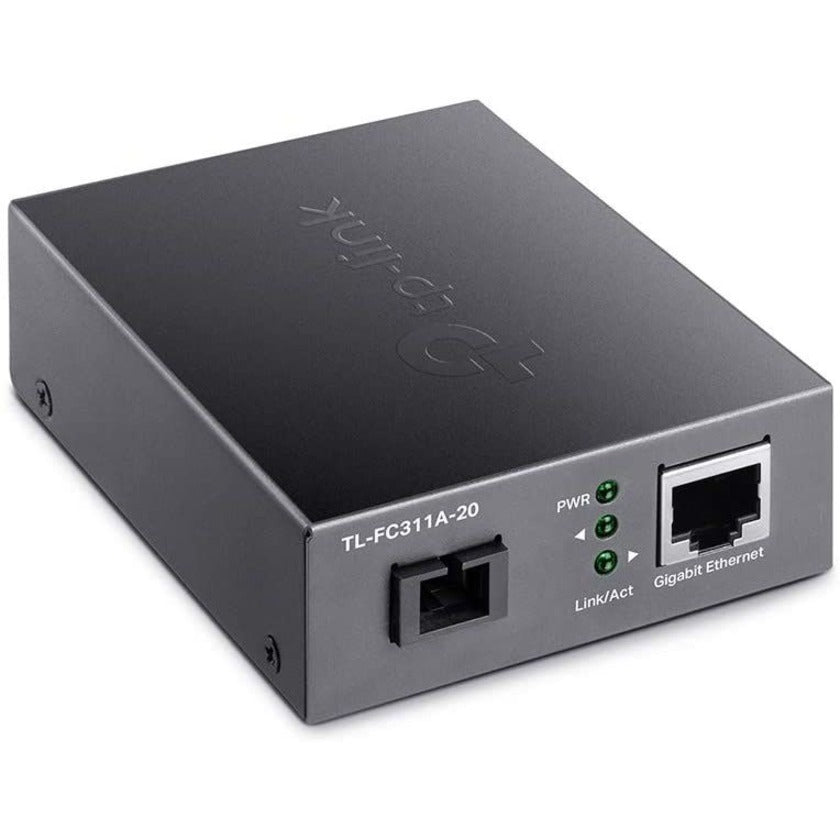

Tp-Link Tl-Fc311A-20 - Gigabit Wdm Sfp To Rj45 Fiber Media Converter

Description :

TP-Link TL-FC311A-20 - Gigabit WDM SFP to RJ45 Fiber Media Converter

What This Product Does

TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works

TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.

Other Features

Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

More from the Manufacturer

• Designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa.


• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.


• Supports auto MDI/MDIX for TX port.


• TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance up to 20 km with only one single-mode fiber, which saves half of the cable deployment cost for customers compares to dual-fiber deployment.


• Wavelength: Tx 1550 nm, Rx 1310nm; Compatible TP-Link model: TL-FC311B-20, TL-SM321B-2 and TL-FC311B-2 (Only under 2km transmission).

Product Type: Transceiver/Media Converter
Brand Name: TP-Link
Form Factor: Rack-mountable
Manufacturer: TP-LINK Technologies Co., Ltd
Product Model: TL-FC311A-20
Product Name: Gigabit WDM Media Converter
Manufacturer Part Number: TL-FC311A-20
Manufacturer Website Address: http://www.tp-link.com/us
Package Contents:

• Gigabit WDM Media Converter
• Power Adapter
• Installation Guide
