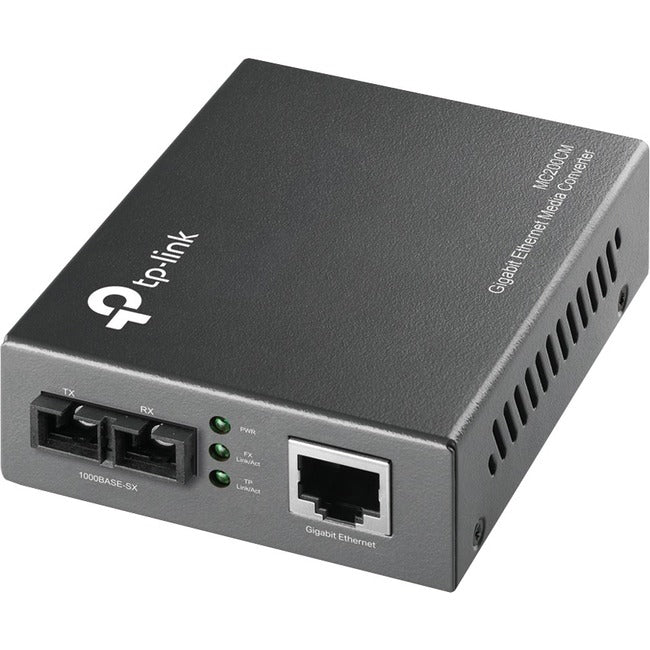

Tp-Link Mc200Cm - Gigabit Sfp To Rj45 Fiber Media Converter - Black

Description :

TP-LINK MC200CM - Gigabit SFP to RJ45 Fiber Media Converter - Black

The MC200CM is a media converter designed to convert 1000BASE-FX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. It works at 850nm on both transmitting and receiving data.

• External power supply. Wave Length: 850nm. Max Power Consumption: 1.66W.


• Easy-to-view LED indicators provide status to monitor network activity easily.


• Extends fiber distance up to 550m (1,800feet) using 50/125um Multi-Mode Fiber, 220m(720 feet) using 62.5/125um Multi-Mode Fiber.


• Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port.


• Works at 1000Mbps in Full-Duplex mode for both TX port and FX port.


• Designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa.

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: TP-Link
Form Factor: External
Manufacturer: TP-LINK Technologies Co., Ltd
Product Model: MC200CM
Product Name: MC200CM Gigabit Ethernet Media Converter
Manufacturer Part Number: MC200CM
Manufacturer Website Address: http://www.tp-link.com/us
Package Contents:

• MC200CM Gigabit Ethernet Media Converter
• Power Adapter
• Installation Guide
