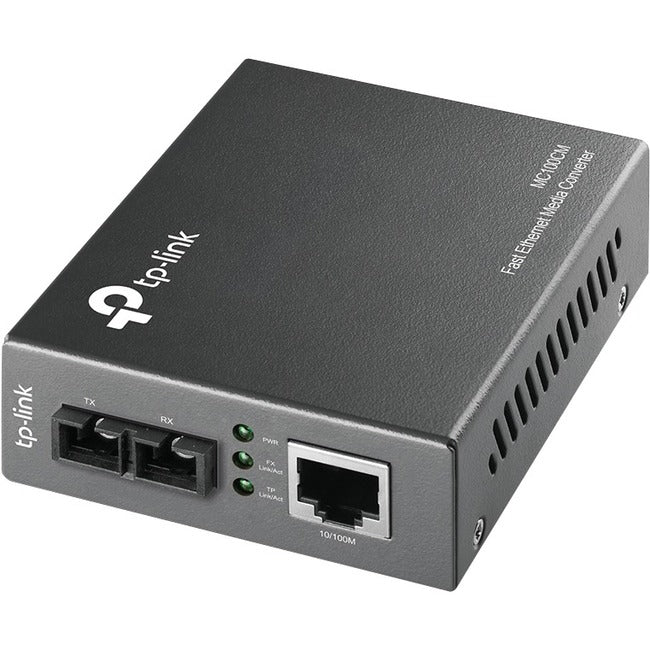

Tp-Link Mc100Cm - Fast Ethernet Sfp To Rj45 Fiber Media Converter

Description :

TP-LINK MC100CM - Fast Ethernet SFP to RJ45 Fiber Media Converter

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector.

• External power supply. Wave Length: 1310nm. Max Power Consumption: 2.4W.


• Easy-to-view LED indicators provide status to monitor network activity easily.


• Extends fiber distance up to 1.2 mile (2km).


• Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port.


• Works at 100Mbps in Full-Duplex mode for both TX port and FX port.


• Designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa.

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: TP-Link
Form Factor: External
Manufacturer: TP-LINK Technologies Co., Ltd
Product Model: MC100CM
Product Name: MC100CM Fast Ethernet Media Converter
Manufacturer Part Number: MC100CM
Manufacturer Website Address: http://www.tp-link.com/us
Package Contents:

• MC100CM Fast Ethernet Media Converter
• Power Adapter
• Installation Guide
