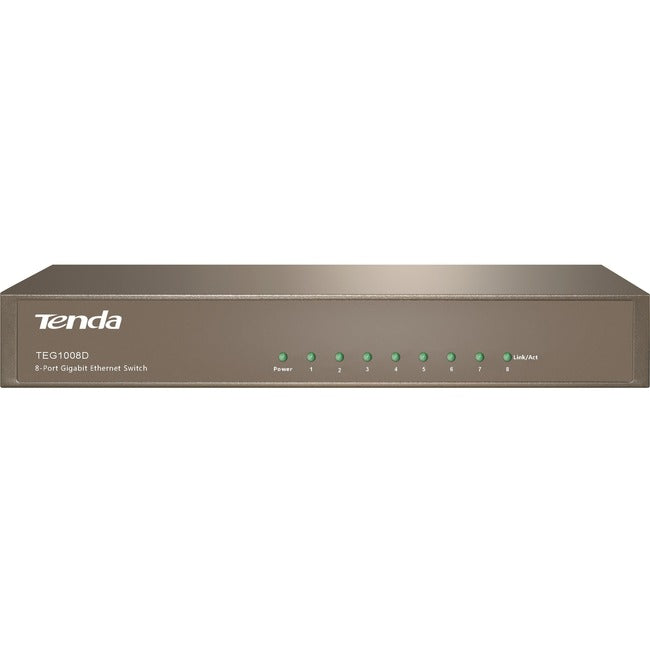

Tenda 8-Port Gigabit Desktop Switch TEG1008D

Description :

Tenda 8-Port Gigabit Desktop Switch
What It Does

TEG1008D is an unmanaged gigabit switch with 8 10/100/1000Mbps auto-negotiation RJ45 ports. Wire-speed forwarding rate of each port is up to 1000Mbps. TEG1008D supports 9k Jumbo Frame to increase the forwarding rate of large files in order to boost network performance . Lightning proof level is up to 4KV to ensure the stability and safety when you surf the internet. With bulit -in latest broadcom chip , fanless and greenlumi design , TEG1008D is the ideal choice for small & medium enterprises?schools , small offices to upgrade gigabit network.

Main Features

• Compliant with IEEE802.3, IEEE802.3u , IEEE802.3ab ethernet standard.
• Provides 8 10/100/1000Mbps auto-negotiation RJ45 Ports.
• Plug and play without configuration.
• Provides up to 16Gbps back panel bandwidth and supports non-blocking wire-speed forwarding.
• Provides LEDs to easily monitor link speed , activity and find problems in time.
• Supports IEEE802.3x full duplex flow control and half duplex backpressure flow control.
• Supports loop detection and loop prevention.
• Supports up to 4KV lightning-proof for each port.
• Support desk & wall-mounting installation.
• Full-metal & larger shell ensure effective cooling.

Support 9K jumbo Frame to speed up the transmission of large files and improve transmission efficiency.

Adopts advanced loop algorithm to prevent loop effectively.

Professional integrated lighting proof circuit with inductive lightning protection(?4KV).

Supports desktop & wall-mounting design; Full-metal & larger shell ensure effective cooling.

• Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily


• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters


• Gigabit Ethernet port for ultra-fast network speeds


• Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree


• The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed


• No need to deal with power supply issues, the switch comes with a separate AC adapter to power up the unit


• With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Tenda
Form Factor: Desktop
Manufacturer: Tenda Technology Inc
Product Model: TEG1008D
Product Name: 8-Port Gigabit Desktop Switch
Manufacturer Part Number: TEG1008D
Manufacturer Website Address: http://www.tendaus.com
Weight (Approximate): 2.20 lb
