QCT Next-Generation 25G ToR Switch for Datacenter and Cloud Computing 1IX2UZZ0STM

Description :

QCT Next-Generation 25G ToR Switch for Datacenter and Cloud Computing

Data center networks face changes with hardware and meeting the requirements of the software it hosts. Quanta Cloud Technology provides a series of Bare Metal Switches, the QantaMesh BMS product line, that addresses these changes in the data center market. The QuantaMesh BMS product lines support speeds up to 100G speeds on their Ethernet Switches. To meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in data center applications, the QuantaMesh BMS product line is the best choice.

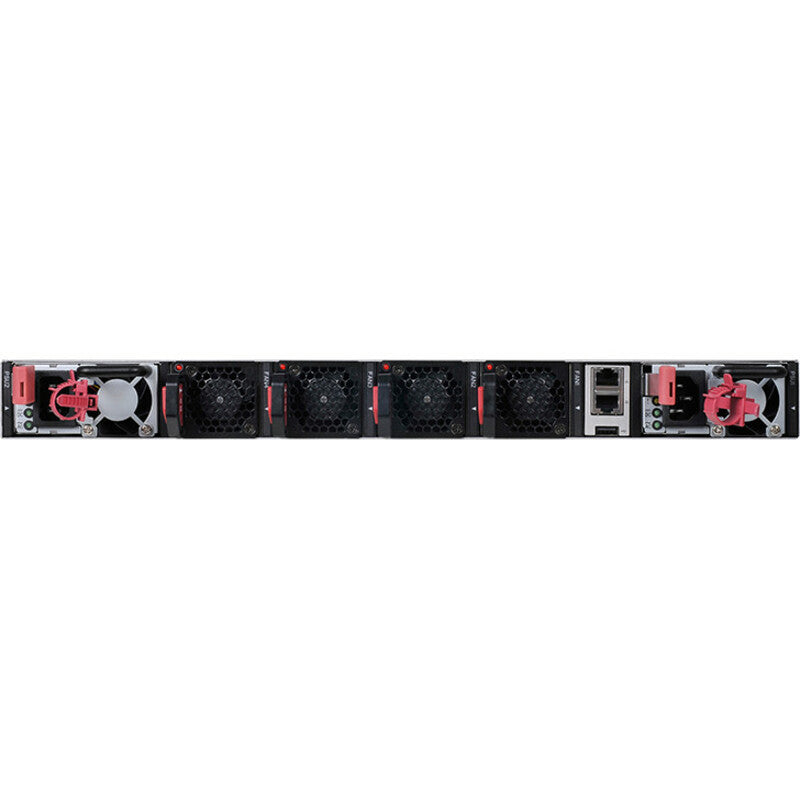

BMC (Baseboard Management Controller) embedded on the server as the core of the Intelligent Platform Management Interface (IPMI) architecture can now be implemented in the Ethernet switch. In addition to providing health monitoring of the temperature, power status, and cooling fans; BMC also aids in the deployment and management of software and hardware peripherals.

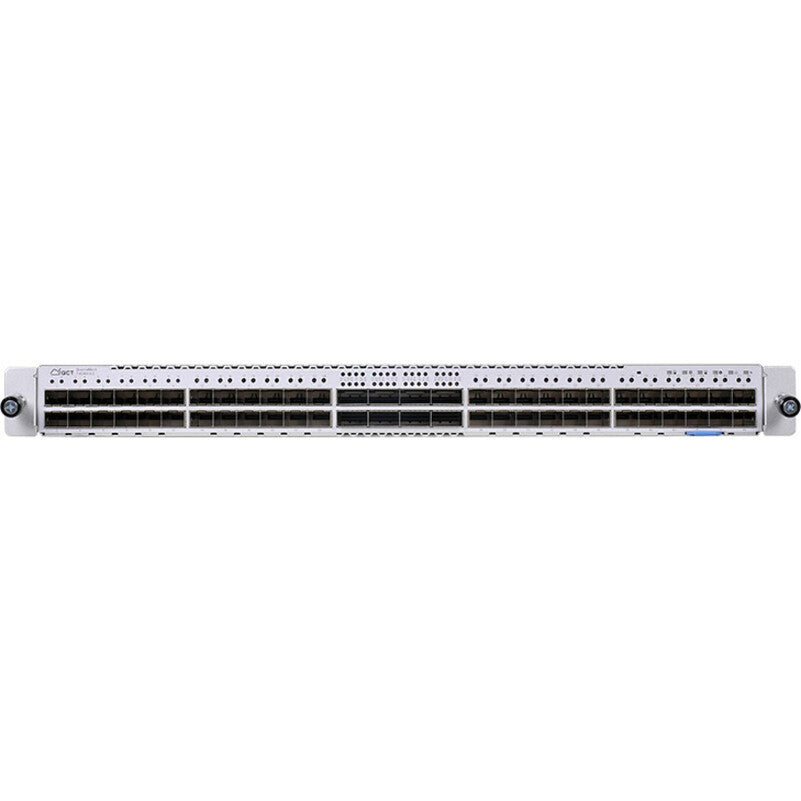

QuantaMesh T4048-IX2 supports 48 SFP28 and 8 QSFP28 (10/25/40/50/100GbE speed) ports in a compact rack unit size. By leveraging merchant silicon chipsets, the T4048-IX2 is a high-performance, high-density Ethernet switch with an affordable price for the deployment of datacenter infrastructure. With ONIE (Open Network Installation Environment) pre-loaded, the T4048-IX2 can be used with multiple operating system that supports ONIE installers to achieve agile installation and fast response when demand changes.

• ONIE Pre-loaded


• x86 CPU Board Support


• ONL Ready


• BMC Built-in


• Cumulus Linux Ready

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: QCT
Form Factor: Rail-mountable
Manufacturer: Quanta Computer, lnc
Product Model: T4048-IX2
Product Name: Next-Generation 25G ToR Switch for Datacenter and Cloud Computing
Product Line: QuantaMesh
Manufacturer Part Number: 1IX2UZZ0STM
Manufacturer Website Address: http://www.quantatw.com
Package Contents:

• Next-Generation 25G ToR Switch for Datacenter and Cloud Computing
• Rail Kit
