QCT The Next Wave Data Center/Enterprise Switch 1LY7UZZ0ST3

Description :

QCT The Next Wave Data Center/Enterprise Switch

Data center networks face changes with hardware and meeting the requirements of the software it hosts. Quanta Cloud Technology provides a series of Bare Metal Switches, the QantaMesh BMS product line, that addresses these changes in the data center market. The QuantaMesh BMS product lines support speeds up to 100G speeds on their Ethernet Switches. To meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in data center applications, the QuantaMesh BMS product line is the best choice.

BMC (Baseboard Management Controller) embedded on the server as the core of the Intelligent Platform Management Interface (IPMI) architecture can now be implemented in the Ethernet switch. In addition to providing health monitoring of the temperature, power status, and cooling fans; BMC also aids in the deployment and management of software and hardware peripherals.

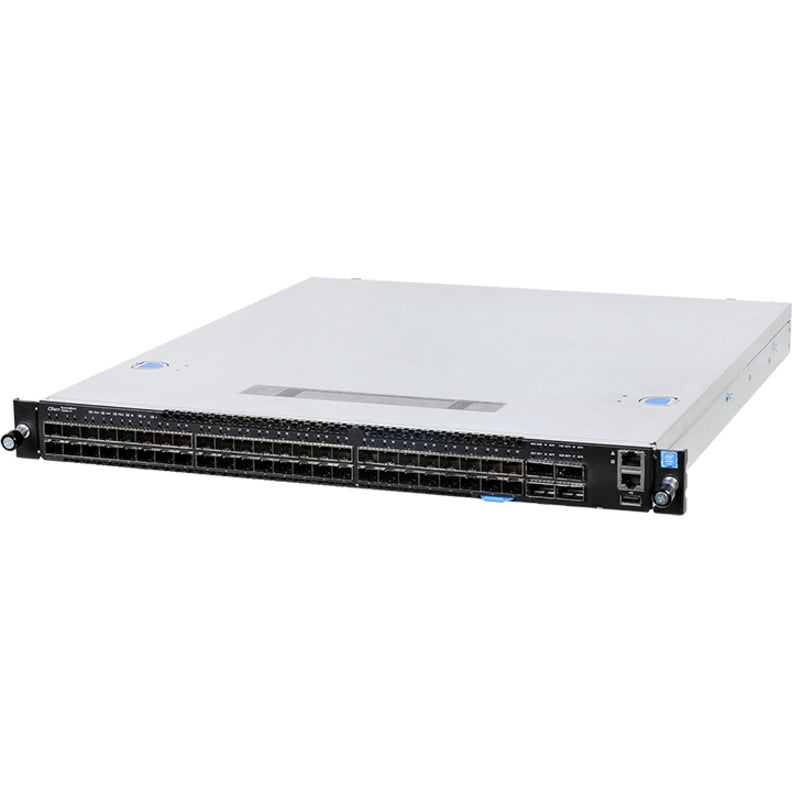

QuantaMesh T3048-LY7 supports 48 SFP+ (1/10GbE speed) ports and 4 QSFP28 (40/100GbE speed) in a compact rack unit size. By levering merchant silicon chip, T3048-LY7 is a high performance high density Ethernet switch with advanced features such as smart table, dynamic load balancing, and RIOT support. With ONIE (Open Network Installation Environment) pre-loaded it could be used for any OS which supports ONIE installer to achieve agile installation and fast response for the changing demand.

• ONIE Pre-loaded


• x86 CPU Board Support


• ONL Ready


• BMC Built-in


• Cumulus Linux Ready

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Brand Name: QCT
Form Factor: Rail-mountable
Manufacturer: Quanta Computer, lnc
Product Model: T3048-LY7
Product Name: The Next Wave Data Center/Enterprise Switch
Product Line: QuantaMesh
Manufacturer Part Number: 1LY7UZZ0ST3
Manufacturer Website Address: http://www.quantatw.com
Package Contents:

• The Next Wave Data Center/Enterprise Switch
• Rail Kit
