QUANTA COMPUTER USA
QCT The Next Wave Data Center Rack Management Switch 1LY4BZZ0STA
QCT The Next Wave Data Center Rack Management Switch 1LY4BZZ0STA
SKU:1LY4BZZ0STA
Couldn't load pickup availability
Description :

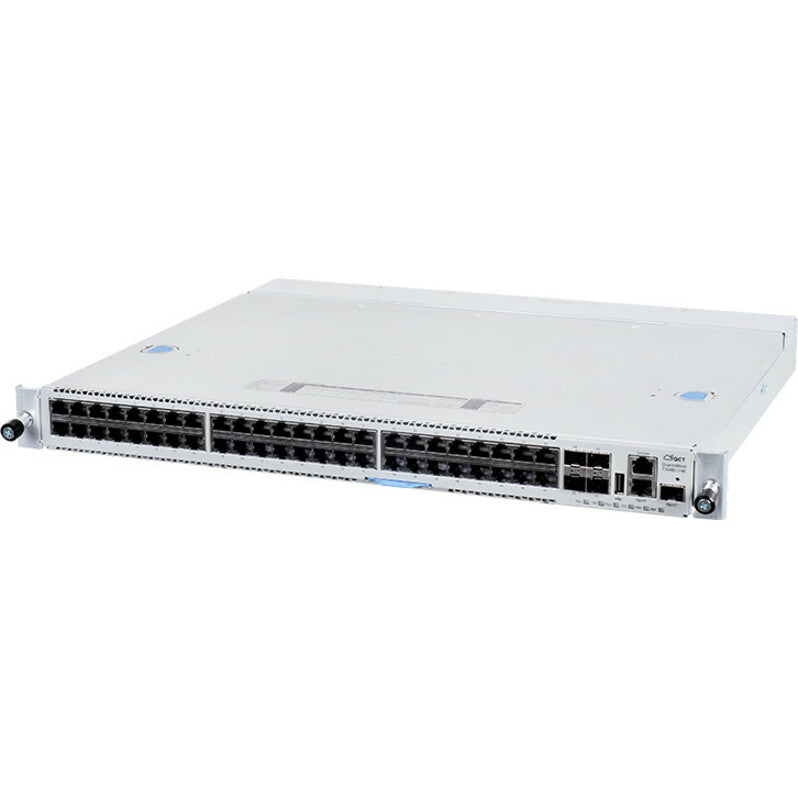

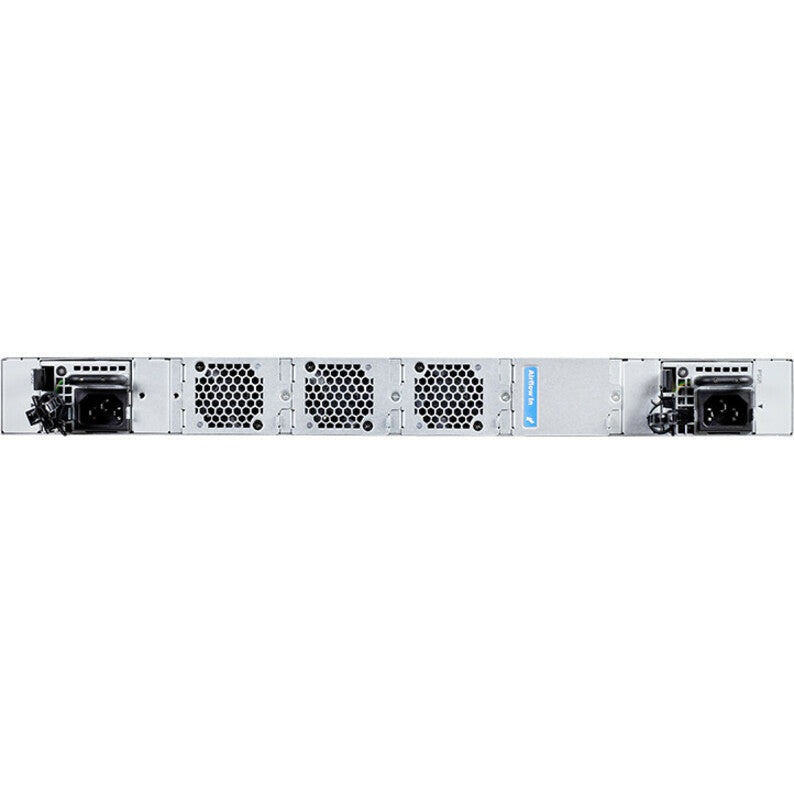

QCT The Next Wave Data Center Rack Management Switch
Data center networks face changes with hardware and meeting the requirements of the software it hosts. Quanta Cloud Technology provides a series of Bare Metal Switches, the QuantaMesh BMS product line, that addresses these changes in the data center market. The QuantaMesh BMS product lines support speeds up to 100G speeds on their Ethernet Switches. To meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in data center applications, the QuantaMesh BMS product line is the best choice.
BMC (Baseboard Management Controller) embedded on the server as the core of the Intelligent Platform Management Interface (IPMI) architecture can now be implemented in the Ethernet switch. In addition to providing health monitoring of the temperature, power status, and cooling fans; BMC also aids in the deployment and management of software and hardware peripherals.
QuantaMesh T1048-LY4R supports 48 10BASE-T/100BASE-TX/1000BASE-T and 4 1/10G SFP+ ports equipped with BMC in a compact rack unit size. T1048-LY4R plays a management role in a server rack with not only Ethernet switch functions but also IPMI 2.0 compliance. With ONIE (Open Network Installation Environment) pre-loaded it can be used with any OS which supports the ONIE installer to achieve agile installation and fast response for today's IT demands.
- ONIE Pre-loaded
- x86 Support
- ONL Ready
- BMC Built-in
- Cumulus Linux Ready
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Product Series: T1000
Brand Name: QCT
Form Factor: Rail-mountable
Manufacturer: Quanta Computer, lnc
Product Model: T1048-LY4R
Product Name: The Next Wave Data Center Rack Management Switch
Product Line: QuantaMesh
Manufacturer Part Number: 1LY4BZZ0STA
Manufacturer Website Address: http://www.quantatw.com
Package Contents:
- The Next Wave Data Center Rack Management Switch
- Rail Kit
Limited Warranty: 3 Year
Weight (Approximate): 13.32 lb
Specifications :
General Information
| Manufacturer | Quanta Computer, lnc |
|---|---|
| Manufacturer Part Number | 1LY4BZZ0STA |
| Manufacturer Website Address | http://www.quantatw.com |
| Brand Name | QCT |
| Product Line | QuantaMesh |
| Product Series | T1000 |
| Product Model | T1048-LY4R |
| Product Name | The Next Wave Data Center Rack Management Switch |
| Product Type | Ethernet Switch |
| UPC | 0884430103575 |
| Ethernet Technology | 10 Gigabit Ethernet |
|---|
| Height | 1.7" |
|---|---|
| Width | 17.3" |
| Depth | 15.5" |
| Weight (Approximate) | 13.32 lb |
| Package Contents |
|
|---|---|
| Environmentally Friendly | Yes |
| Limited Warranty | 3 Year |
|---|
