Description :
- Mfr Part Number: RS820RP+
-
Hardware:
- CPU: Intel Atom C3538 (2.1 GHz, Quad Core)
- Memory: 2GB DDR4 (Expandable, Up to 18GB, 2GB + 16 GB)
- Drive Bay: 4x 3.5" or 2.5" SATA SSD/HDD (Hard drive not included)
- Maximum Internal Raw Capacity: 64 TB (4x 16 TB drive) (Capacity may vary by RAID types)

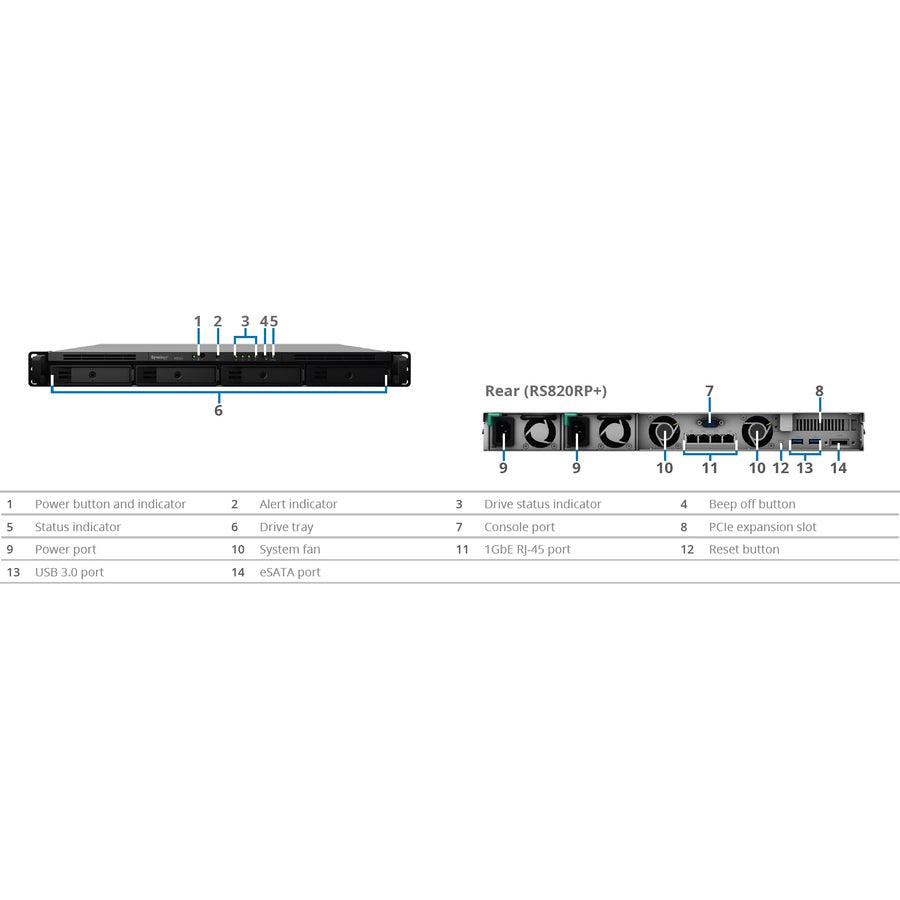

- External Ports: 2x USB 3.0 Ports, 1x eSATA Port, 4x RJ45 1GbE LAN Ports
- PCIe: 1x Gen3 x8 slot (x4 link)
- Fan: 2x (40 x 40 mm) Fans
- Power Recovery
- Noise Level: 39.9 dB(A)
- Scheduled Power On/Off
- Redundant Power Supply
- Wake on LAN/WAN
- Power Supply Unit/Adapter: 150W
- AC Input Power Voltage: 100 ~ 240 V AC
- Power Frequency: 50/60Hz, Single Phase
- Networking Protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
-
File System:
- Internal: Btrfs, EXT4
- External: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
-
File Sharing:
- Maximum Local User Accounts: 2048
- Maximum Local Groups: 256
- Maximum Shared Folder: 512
- Maximum Shared Folder Sync Tasks: 8
- Maximum Concurrent CIFS/AFP/FTP Connections: 500
- Windows Access Control List (ACL) Integration
- NFS Kerberos Authentication
- Utilities: Synology Assistant
- Supported Clients: Windows 7 and 10, Mac OS X 10.11 onwards
- Power Consumption: 45.28W (Access); 20.81W (HDD Hibernation)
- Certifications: EAC, VCCI, CCC, RCM, KC, FCC, CE, BSMI
- Dimensions (WxDxH): 480.0 x 518.6 x 44.0 mm
- Weight: 7.96 kg
- Package Contents: Main Unit, Accessory Pack, 2x AC Power Cord, Quick Installation Guide
- RoHS Compliant
Specifications :
General Information
Manufacturer | Synology, Inc |
---|---|
Manufacturer Part Number | RS820RP+ |
Manufacturer Website Address | http://www.synology.com |
Brand Name | Synology |
Product Line | RackStation |
Product Series | Plus |
Product Model | RS820RP+ |
Product Name | RackStation RS820RP+ SAN/NAS Storage System |
Product Type | SAN/NAS Storage System |
UPC | 846504003389 |
Processor Manufacturer | Intel |
---|---|
Processor Type | Atom |
Processor Model | C3538 |
Processor Core | Quad-core (4 Core) |
Processor Speed | 2.10 GHz |
Ethernet Technology | Gigabit Ethernet |
---|
Total Number of USB Ports | 2 |
---|---|
Network (RJ-45) | Yes |
Operating System | DiskStation Manager |
---|
Maximum Power Supply Wattage | 150 W |
---|
Height | 1.7" |
---|---|
Width | 18.9" |
Depth | 20.4" |
Weight (Approximate) | 17.55 lb |
