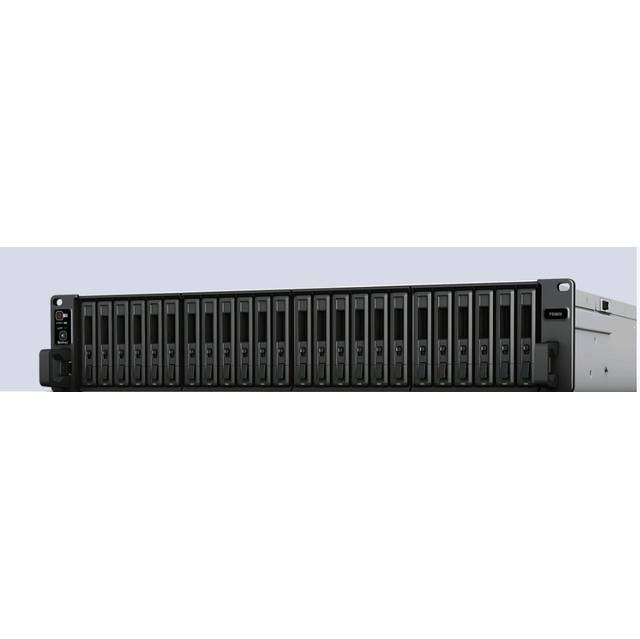

Name: Synology Flashstation Fs3600 24-Bay
Brand: Synology
SKU: FS3600
Price: 10465.25 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Mfr Part Number: FS3600
CPU:
- CPU Model: Intel Xeon D-1567
- CPU Architecture: 64-bit
- CPU Frequency: 12-Core 2.1 (base) / 2.7 (turbo) GHz
- Hardware Encryption Engine (AES-NI): Y
Memory:
- System Memory: 16 GB DDR4 ECC RDIMM
- Memory Module Pre-installed: 16 GB (16 GB x 1)
- Total Memory Slots: 4
- Memory Expandable up to: 128 GB (32 GB x 4)
Storage:
- Drive Bays: 24
- Maximum Drive Bays with Expansion Unit: 48 (RX1217sas) / 72 (RX2421* x2)
- Compatible Drive Type* (See all supported drives): 2.5" SAS HDD/ 2.5" SAS SSD/ 2.5" SATA SSD
- Maximum Internal Raw Capacity: 92.16 TB (3.84 TB drive x 24) (Capacity may vary by RAID types)
- Maximum Raw Capacity with Expansion Units: 276.48 TB (92.16 TB + 3.84 TB drive x 48) (Capacity may vary by RAID types)
- Maximum Single Volume Size: 200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)/ 108 TB
- Hot Swappable Drive: Y
External Ports:
- RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
- RJ-45 10GbE LAN Port: 2 (with Link Aggregation / Failover support)
- USB 3.0 Port: 2
- Expansion Port: 1
PCIe:
- PCIe Expansion: 1 x Gen3 x8 slot (x8 link)
- Add-In-Card Support: PCIe Network Interface Card
File System:
- Internal Drives: Btrfs; EXT4
- External Drives: Btrfs; EXT4; EXT3; FAT; NTFS; HFS+; exFAT*
- Notes exFAT Access is purchased separately in Package Center.
Appearance:
- Size (Height x Width x Depth): 88 mm x 482 mm x 724 mm
- Weight: 14.9 kg
- Rack Installation Support: 4-post 19" rack (Synology Rail Kit - RKS1317)
- Notes: The rail kit is sold separately
Others:
- System Fan: 80 mm x 80 mm x 4 pcs
- Fan Speed Mode: Full-Speed Mode; Cool Mode; Quiet Mode
- Easy Replacement System Fan: Y
- Power Recovery: Y
- Noise Level: 57 dB(A)
- Scheduled Power On/Off: Y
- Wake on LAN/WAN: Y
- Power Supply Unit / Adapter: 500W
- Redundant Power Supply: Y
- AC Input Power Voltage: 100V to 240V AC
- Power Frequency: 50/60Hz, Single Phase
- Power Consumption: 258.23W (Access); 127.99 W (HDD Hibernation)
- British Thermal Unit: 881.12 BTU/hr (Access); 436.72 BTU/hr (HDD Hibernation)
Temperature:
- Operating Temperature: 0C to 35C (32F to 95F)
- Storage Temperature: -20C to 60C (-5F to 140F)
- Relative Humidity: 5% to 95% RH
- Certification: EAC; VCCI; CCC,RCM; FCC; CE; BSMI
Storage Management:
- Maximum Internal Volume Number: 256
- Maximum iSCSI Target Number: 256
- Maximum iSCSI LUN: 512
- iSCSI LUN Clone/Snapshot, Windows ODX: Y
- SSD Read/Write Cache (White Paper): Y
- SSD TRIM: Y
- RAID Group: Y
- Supported RAID Type: RAID F1/Basic/JBOD/RAID 0/RAID 1/RAID 5/RAID 6/RAID 10
- RAID Migration: Basic to RAID 1/Basic to RAID 5/RAID 1 to RAID 5/RAID 5 to RAID 6
- Volume Expansion with Larger HDDs: RAID F1/RAID 1/RAID 5/RAID 6/RAID 10
- Volume Expansion by Adding a HDD: RAID F1/JBOD/RAID 5/RAID 6
- Global Hot Spare Supported RAID Type: RAID F1/RAID 1/RAID 5/RAID 6/RAID 10
File Services:
- File Protocol: CIFS/AFP/NFS/FTP/WebDAV
- Maximum Concurrent CIFS/AFP/FTP Connections: 4000
- Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion): 10000
- Windows Access Control List (ACL) Integration: Y
- NFS Kerberos Authentication: Y
Account & Shared Folder:
- Maximum Local User Accounts: 16000
- Maximum Local Groups: 512
- Maximum Shared Folder: 512
- Maximum Shared Folder Sync Tasks: 32
Synology High Availability: Y
Log Center: Y
- Syslog Events per Second: 3000
Virtualization:
- VMware vSphere 6 with VAAI: Y
- Windows Server 2016: Y
- Citrix Ready: Y
- OpenStack: Y
Antivirus by McAfee (Trial): Y
Synology Chat: Y
- Maximum Users: 6,000

General Information

Manufacturer	Synology, Inc
Manufacturer Part Number	FS3600
Manufacturer Website Address	http://www.synology.com
Brand Name	Synology
Product Line	FlashStation
Product Series	FS
Product Model	FS3600
Product Name	FlashStation FS3600 SAN/NAS Storage System
Product Type	SAN/NAS Storage System
UPC	846504003617

Processor

Processor Manufacturer	Intel
Processor Type	Xeon
Processor Model	D-1567
Processor Core	Dodeca-core (12 Core)
Processor Speed	2.10 GHz

Ethernet Technology	10 Gigabit Ethernet

Total Number of USB Ports	2
Network (RJ-45)	Yes

Operating System	DiskStation Manager

Power Description

Maximum Power Supply Wattage	500 W

Height	3.5"
Width	19"
Depth	28.5"
Weight (Approximate)	32.85 lb

Synology Flashstation Fs3600 24-Bay

Description

Synology Flashstation Fs3600 24-Bay
