Syba Multimedia 6 Port Sata Iii To Pcie 3.0 X1 Non-Raid Expansion Card Sy-Pex40166

Description :

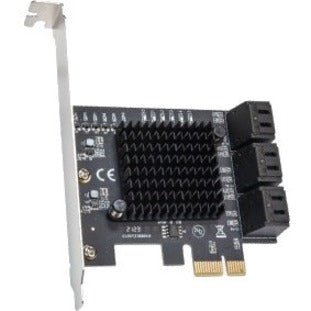

SYBA Multimedia 6 Port SATA III to PCIe 3.0 x1 Non-RAID Expansion Card SY-PEX40166

The SY-PEX40166 adds 6 SATA 6G ports through a PCIe 3.0 x1 card to your PC System. It's an ideal solution for surveillance users to install up to 10 SATA drives and/or ODD drives in one low profile PCIe card without driver installation required.

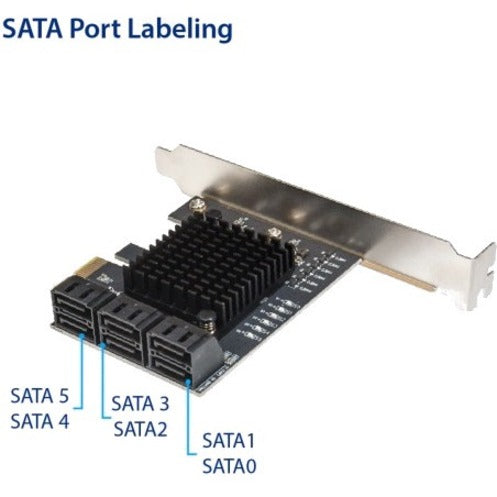

• Supports 6-port 6Gb/s SATA III interface,Supports Port Multiplier,Supports Hot-Plug,Supports drive power control and staggered spin-up.Supports SATA Partial / Slumber power management state.


• Compliant with Serial ATA AHCI (advanced host controller interface) Specification Rev 1. 0, supports SATA 3. 0 transfer rate up to 6Gbps. Maximum sequencing read/ write speed 850 MB/s.

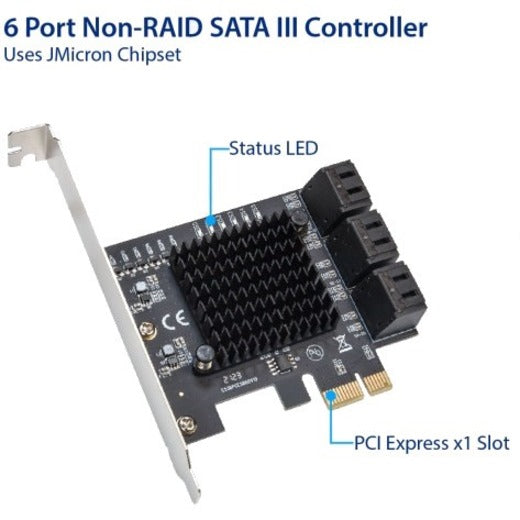

• Micron JMB582 Chipset, Port Multiplier FIS-based and Command-based switching supported. Hot plug and Hot swap SATA ports. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.


• Compatible with Windows XP/7/8/10/Mac/NAS/Linux OS. No driver installation is required. Support install Windows OS from Win10 PE.

Product Type: SATA Controller
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: SYBA Multimedia
Form Factor: Plug-in Card

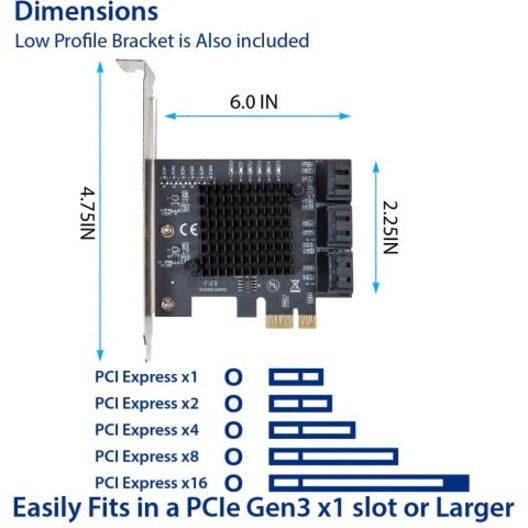

Length: 6"
Manufacturer: SYBA Multimedia, Inc
Product Name: 6 Port SATA III to PCIe 3.0 x1 Non-RAID Expansion Card SY-PEX40166
Manufacturer Part Number: SY-PEX40166
Manufacturer Website Address: http://www.syba.com
Packaged Quantity: 1
Platform Supported: Linux
Package Contents:

• 6 Port SATA III to PCIe 3.0 x1 Non-RAID Expansion Card SY-PEX40166
• 3 x SATA Cable (18")
• 1 x User's Manual
• 1 x Low-Profile Bracket
