Server Technology PRO1 C1W16HR-2CAA5BAC 16-Outlets PDU

Description :

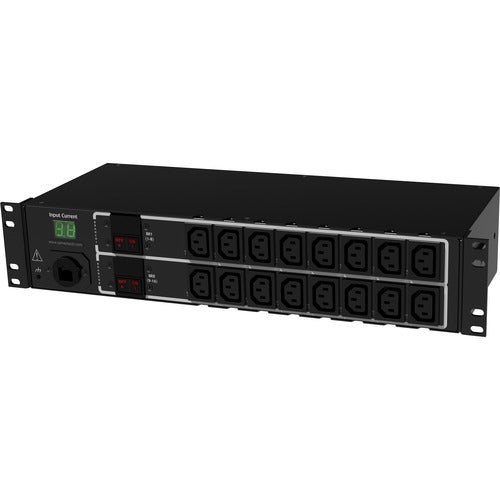

Server Technology PRO1 C1W16HR-2CAA5BAC 16-Outlets PDU

The Server Technology® PRO1 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched "Master" PDU can be connected to as many as three PRO1 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

• Network Monitoring


• Temperature/ Humidity Monitoring


• Branch Circuit Protection


• High Temperature Rating


• Hot-Swap Network Card


• Auto-Flip Current Display


• Outlet Control


• Color Identification


• Star Multi-Linking


• Per-Inlet Power Sensing

Product Type: PDU
Environmentally Friendly: Yes
Environmental Certification: cTUVus
Mounting Orientation: Horizontal
Product Series: PRO1
Rack Height: 2U
Brand Name: Server Technology
Manufacturer: Server Technology, Inc
Product Model: C1W16HR-2CAA5BAC
Product Name: PRO1 C1W16HR-2CAA5BAC 16-Outlets PDU
Mount Type: Rack-mountable
Manufacturer Part Number: C1W16HR-2CAA5BAC
Manufacturer Website Address: http://www.servertech.com
Package Contents:

• PRO1 C1W16HR-2CAA5BAC 16-Outlets PDU
• Mounting Brackets
