Support Intel Xeon E5-2600 and E5-2600 v2 Family Processor
Cache up to 30MB
QPI up to 8 GT/s
Support up to 130W TDP
Chipset:Intel C602J
Memory:16x 240pin DDR3-1866/ 1600/ 1333/ 1066/ 800 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory or 128GB ECC Unbuffered Memory
Backplane:SAS2/SATA3 Single Expander per Backplane
Ports:9x USB 2.0 Ports (4 rear, 4 via headers, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port

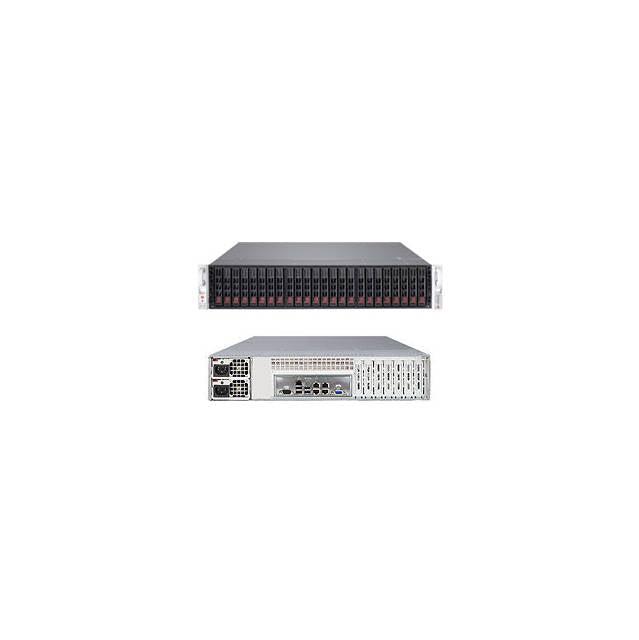

Form Factor:2U Rackmount
Power Supply:920W 80 PLUS Platinum Certified High-efficiency (94%+) AC-DC Redundant Power Supplies w/ PMBus and I2C
System Cooling: 3x 8cm 9.5K RPM, 4-pin PWM Fans
Front Panel:
Buttons:Power On/Off, System Reset
LEDs:Power Status, Hard Drive Activity, 2x Network Activity, System Overheat, Power Fail
Color:Black
Dimensions (WxDxH):17.2 x 24.8 x 3.5 inch / 437.0 x 630.0 x 89.0 mm
