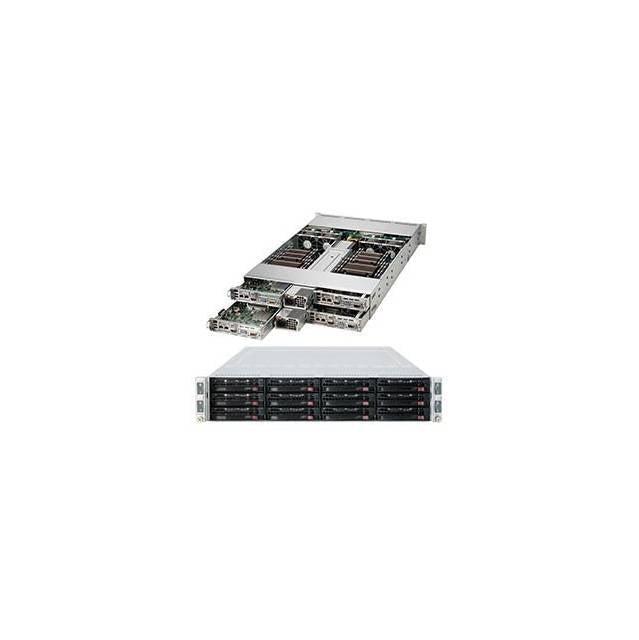

Supermicro Superserver Sys-6027Tr-Htrf+ Dual Lga2011 1620W 2U Rackmount Server Barebone System (Black)

Roll over image to zoom in Click on image to zoom

Mfr Part Number:SYS-6027TR-HTRF+
Motherboard:Super X9DRT-HF+
Processor/Cache:
- CPU:Dual Socket R (LGA 2011); Intel Xeon processor E5-2600 and E5-2600 v2 family (up to 135W TDP )
- Note: BIOS version 3.0 or above is required
- Cache: Up to 30MB
- System Bus: QPI up to 8 GT/s
System Memory:
- Memory Capacity:
  - 16x 240-pin DDR3 DIMM slots
  - Up to 1TB DDR3 ECC LRDIMM

  - Up to 512GB DDR3 ECC Registered memory (RDIMM)
- Memory Type:1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
- DIMM Sizes:32GB, 16GB, 8GB, 4GB, 2GB, 1GB
- Memory Voltage:1.5 V, 1.35 V
- Error Detection:
  - Corrects single-bit errors

  - Detects double-bit errors (using ECC memory)
On-Board Devices:
- Chipset:Intel C602 Chipset
- SATA: SATA 2.0 & 3.0 with RAID 0, 1, 5, 10
- IPMI:
  -Support for Intelligent Platform Management Interface v.2.0
  - IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  - Nuvoton WPCM450 BMC
- Network Controllers:
  - Intel i350 Dual Port Gigabit Ethernet
  - Virtual Machine Device Queues reduce I/O overhead

  - Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

  - 1x Realtek RTL8201N PHY (dedicated IPMI)
- Graphics:Matrox G200eW
Input/ Output:
- Serial ATA:
  - 2x SATA 3.0 ports (6Gbps)

  - 1x SATA 2.0 ports (3Gbps)
- LAN:

  - 2x RJ45 Gigabit Ethernet LAN ports

  - 1x RJ45 Dedicated IPMI LAN port
- USB: 5x USB 2.0 ports total (2 rear + 2 via header + 1 Type A)
- VGA: 1x VGA port
- Serial Port / Header: 1x Fast UART 16550 port
Chassis:
- Form Factor:2U Rackmount
- Model:CSE-827HQ-R1620MB
Front Panel:
- Buttons:
  - Power On/Off button
  -System Reset button
  -UID button
- LEDs:
  -Power status LED
  - HDD activity LED

  - 2x Network activity LEDs

  - Universal Information (UID) LED
Expansion Slots:
- PCI-Express: 1 Micro Low Profile PCI-E 3.0 x8 slot MicroLP Adapter Matrix (Networking options)
Drive Bays:
- Hot-swap: 3x 3.5" Hot-swap SATA HDD trays
System Cooling:4x 8cm heavy duty PWM fans with optimal fan speed control
Power Supply:1620W high-efficiency redundant power supply w/ PMBus
- AC Input:
  - 1000W Output @ 100-120V, 12-10A, 50-60Hz
  - 1200W Output @ 120-140V, 12-10A, 50-60Hz

  - 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
- DC Output:
  -1000W: +12V/84A; +5Vsb/4A
  - 1200W: +12V/100A; +5Vsb/4A
  -1620W: +12V/150A; +5Vsb/4A
- Certification: 80 PLUS PlatinumCertified
System BIOS:
- BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS
- BIOS Features:
  - Plug and Play (PnP)

  - APM 1.2

  -PCI 2.2

  - ACPI 1.0 / 2.0

  - USB Keyboard support

  - SMBIOS 2.3
  -UEFI
Operating Environment / Compliance:
- RoHS:RoHS Compliant
- Environmental Specifications:
  - Operating Temperature: 10C to 35C (50F to 95F)
  - Non-operating Temperature: -40C to 70C (-40F to 158F)
  - Operating Relative Humidity: 8% to 90% (non-condensing)
  - Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimensions(WxHxD):17.25" x 3.47" x 26.75"/ 438mmx 88mmx 679mm
Gross Weight:85 lbs (38.6kg)
Color:Black
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	SYS-6027TR-HTRF+
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Line	SuperServer
Product Model	6027TR-HTRF
Product Name	SuperServer 6027TR-HTRF
Product Type	Barebone System
UPC	0672042112906

Chipset

Chipset Manufacturer	Intel

Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200eW

Ethernet Technology	Gigabit Ethernet

Total Number of USB Ports	3
Network (RJ-45)	Yes

Power Description

Maximum Power Supply Wattage	1620 W

Product Color	Black
Height	3.5"
Width	17.3"
Depth	26.8"
Weight (Approximate)	85 lb

Miscellaneous

Package Contents

SuperServer 6027TR-HTRF
4 x Super X9DRT-HF Motherboard
1 x 2U Chassis
4 x 6-PORT SATA ADAPTER FOR TWIN Backplane
1 x SAS Backplane, x12 3.5" HDD, 2U Twin
8 x 30AWG 21cm S-S SATA Cable
1 x Driver CD for X9 Series
4 x RSC-R1U-E16R Riser Card
4 x 1U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM
4 x 1U Passive Customized Rear CPU Heat Sink for X9 Twin Series Motherboards
2 x 1620W REDUNDANT POWER MODULE

Environmentally Friendly

Yes

Warranty

Limited Warranty	3 Year
