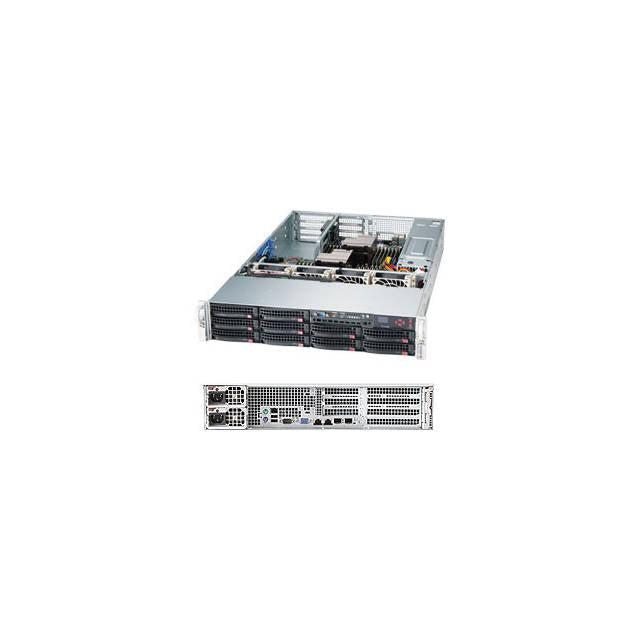

Name: Supermicro Superserver Sys-6027R-72Rftp+ Dual Lga2011 920W 2U Rackmount Server Barebone System (Black)
Brand: Supermicro
SKU: SYS-6027R-72RFTP+
Price: 2694.48 USD
Availability: InStock

Supermicro Superserver Sys-6027R-72Rftp+ Dual Lga2011 920W 2U Rackmount Server Barebone System (Black)

Roll over image to zoom in Click on image to zoom

Mfr Part Number: SYS-6027R-72RFTP+
Motherboard: Super X9DRW-7TPF+
Processor: Dual LGA2011
- Support Intel Xeon E5-2600 Processors
- Cache up to 20MB
- QPI up to 8 GT/s
- Support up to 135W TDP
Chipset: Intel C602J
Memory: 24x 240pin DDR3-1600/1333/1066/800 DIMM Slots; Supports up to 768GB ECC/REG Memory or up to 128GB ECC/Unbuffered Memory
Slots (via Riser Card):
- Left: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 3.0 x8 Slots (Full-height)
- Right: 2x PCI-Express 3.0 x8 Slots (Low-profile)
SATA: 2x SATA2 Ports, Support RAID 0, 1; SATA2 Supports RAID 0, 1, 5, 10
SAS: 8x SAS2 Ports, Support RAID 0, 1, 5, 6, 10, 50, 60
Video: Matrox G200eW Graphics
LAN: Intel 82599 Dual Port 10-Gigabit SFP+ and Intel i350 Dual Port Gigabit Ethernet Controllers; 1x Realtek RTL8201N PHY (dedicated IPMI)
Drive Bays: 10x 3.5" Hot-swap SAS/SATA HDD Trays
Backplane: 1x SAS2/SATA Backplane
Ports: 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x SFP+ LAN Ports, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: 2U Rackmount
Power Supply: 920W 80 PLUS Platinum Certified High-efficiency (94%+) AC-DC Redundant Power Supplies w/ PMBus and I2C
System Cooling: 4x 8cm Heavy Duty PWM Fans
Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power Status, Hard Drive Activity, 2x Network Activity, System Overheat, Power Fail
Color: Black
Dimensions (WxDxH): 17.20 x 27.75 x 3.50 inch / 437.0 x 705.0 x 89.0 mm
Gross Weight: 52.0 lbs / 23.6 kg
RoHS Compliant

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	SYS-6027R-72RFTP+
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Line	SuperServer
Product Model	6027R-72RFTP+
Product Name	SuperServer 6027R-72RFTP+ (Black)
Product Type	Barebone System
UPC	672042132782

Chipset

Chipset Manufacturer	Intel

Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200eW

Ethernet Technology	Fast Ethernet

Total Number of USB Ports	5
Network (RJ-45)	Yes

Power Description

Maximum Power Supply Wattage	920 W

Product Color	Black
Height	3.5"
Width	17.2"
Depth	27.8"

Miscellaneous

Package Contents	SuperServer 6027R-72RFTP+ (Black) 1 x Super X9DRW-7TPF+ Motherboard 1 x 2U Chassis 1 x 10 HDD BPN, SGPIO only support; added precharged resistor for hot-swap 1 x 8 pin to 8 pin ribbon SGPIO cable with tube, 61.5cm, PBF 2 x 65CM SATA ROUND S-RA PBF. 26AWG 1 x IPASS TO 4 SATA RA 64/54/44/34CM W/64CM SB, RA. 30AWG 1 x IPASS TO 4 SATA 43/43/33/33CM, W/ 43cm SB, RA ,30AWG 1 x 4 pin to 4 pin 15cm LAN3/4 LED extension cable for 829B with X9DRW-7TPF+. 26AWG.,RoHS/REACH,PBF 1 x RSC-R2UW-2E8E16 1 x RSC-R2UW-2E8R-O-P 2 x 2U Passive CPU HS for 2U WIO+ Servers 2 x 920W 1U Redundant PWS W/ Quiet Mode 1 x set Rail set, quick/quick, default for 2,3U 17.2"W
Environmentally Friendly	Yes
Environmental Certification	RoHS

Warranty

Limited Warranty	3 Year

Supermicro Superserver Sys-6027R-72Rftp+ Dual Lga2011 920W 2U Rackmount Server Barebone System (Black)
