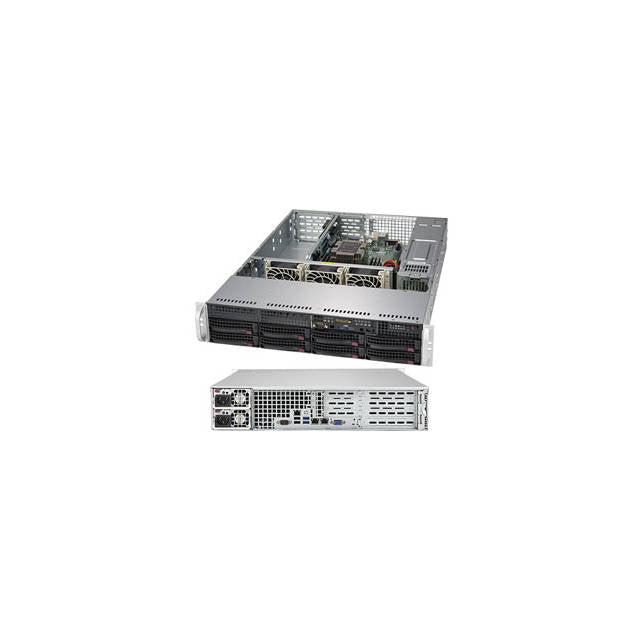

Name: Supermicro Superserver Sys-5029P-Wtr Lga3647 500W 2U Rackmount Server Barebone System (Black)
Brand: Supermicro
SKU: SYS-5029P-WTR
Price: 2190.50 USD
Availability: OutOfStock

Supermicro Superserver Sys-5029P-Wtr Lga3647 500W 2U Rackmount Server Barebone System (Black)

Roll over image to zoom in Click on image to zoom

Mfr Part Number: SYS-5029P-WTR

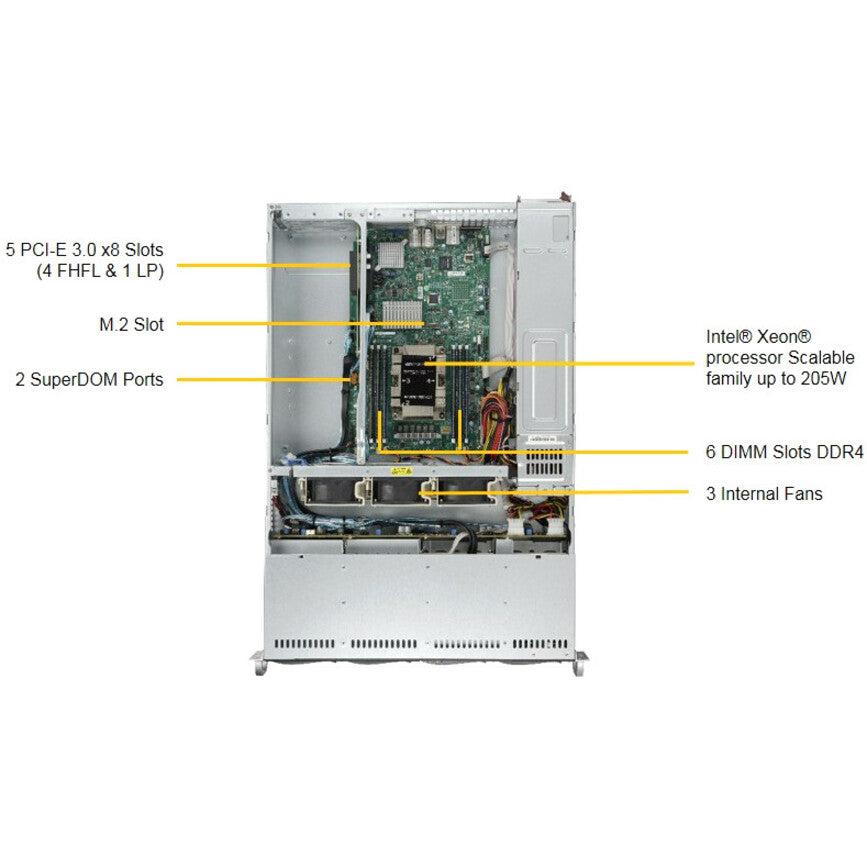

Motherboard: Super X11SPW-TF
Processor: LGA 3647
- Intel Xeon Scalable Processors
- Support CPU TDP 70-205W
- Up to 28 Cores with Intel HT Technology
Chipset: Intel C622
Memory: 6x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Supports up to 768GB ECC 3DS Load Reduced Memory, 192GB ECC/REG Memory
Slots: 4x PCI-Express 3.0 x8 Slots (Full-height, Full-length), 1x PCI-Express 3.0 x8 Slot (Low Profile)
SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
Video: Aspeed AST2500 BMC Graphic
LAN: Dual 10GBase-T LAN with Intel X772 + X557

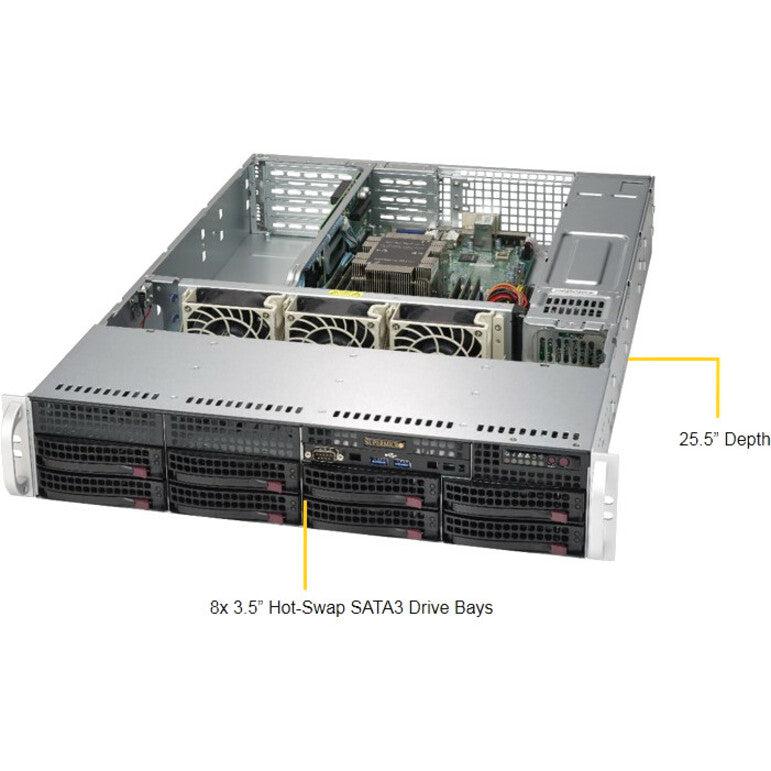

Drive Bays: 8x 3.5" Hot-swap SATA3 drive bays, M.2 mini-PCI-e support
Peripheral Drives: 1 Slim DVD-ROM drive bay
Ports: 2x USB 3.0 Ports (rear), 2x USB 2.0 Ports (rear), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 10GBase-T LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: 2U Rackmount
Power Supply: 500W 80 PLUS Platinum Certified High-efficiency Redundant Power Supplies w/ PMBus
System Cooling: 3x 8cm Hot-swap PWM Cooling Fans

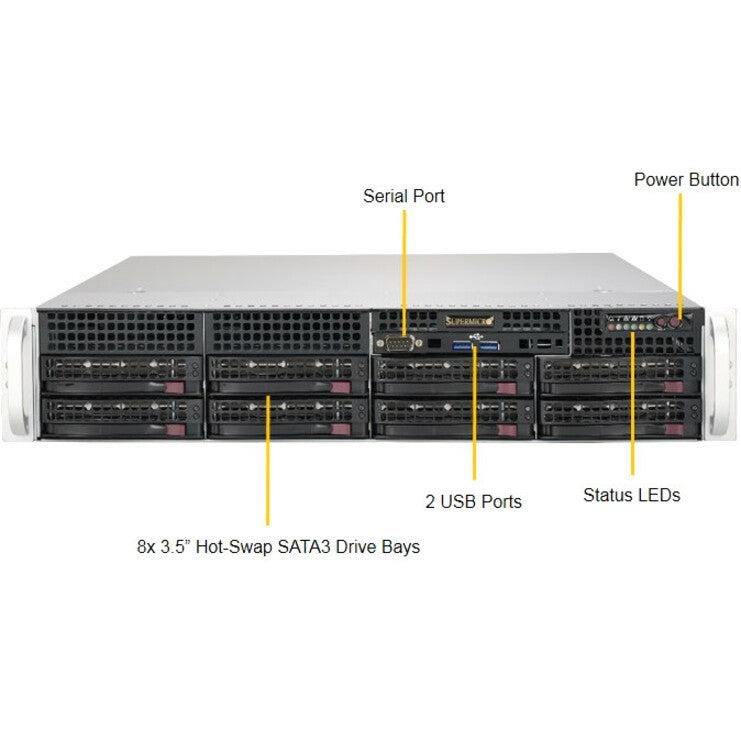

Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power, Hard drive activity, Network Activity, System Overheat, Information (temp, status)
Color: Black
Dimensions (WxDxH): 17.2 x 25.6 x 3.5 inch / 437.0 x 650.0 x 89.0 mm
Weight: 34.0 lbs / 15.42 kg
RoHS Compliant

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	SYS-5029P-WTR
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Line	SuperServer
Product Model	5029P-WTR
Product Name	SuperServer 5029P-WTR (Black)
Product Type	Barebone System
UPC	672042263790

Chipset

Chipset Manufacturer	Intel

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500

Ethernet Technology	10 Gigabit Ethernet

Total Number of USB Ports	4

Power Description

Maximum Power Supply Wattage	500 W

Product Color	Black
Height	3.5"
Width	17.2"
Depth	25.6"
Weight (Approximate)	34 lb

Supermicro Superserver Sys-5029P-Wtr Lga3647 500W 2U Rackmount Server Barebone System (Black)

Description

Supermicro Superserver Sys-5029P-Wtr Lga3647 500W 2U Rackmount Server Barebone System (Black)
