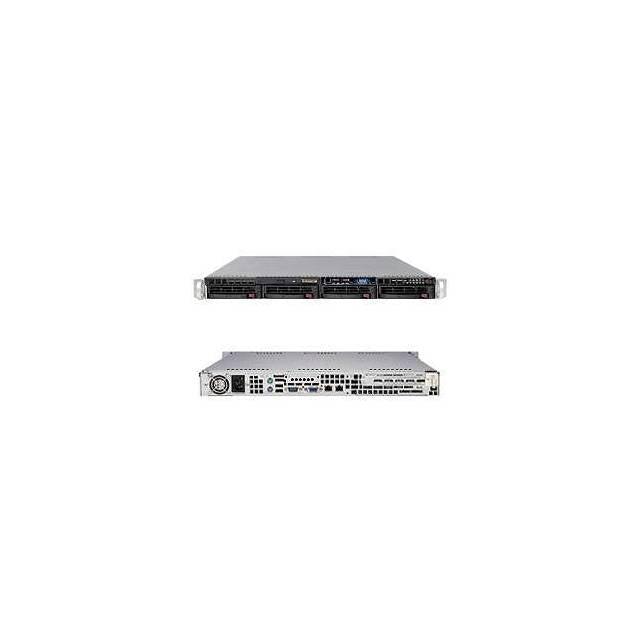

• Supermicro Superserver Sys-5016I-Mthf Lga1156 350W 1U Rackmount Server Barebone System (Black)
1 1

Supermicro

Supermicro Superserver Sys-5016I-Mthf Lga1156 350W 1U Rackmount Server Barebone System (Black)

Supermicro Superserver Sys-5016I-Mthf Lga1156 350W 1U Rackmount Server Barebone System (Black)

SKU:SYS-5016I-MTHF

$899.99
$899.99
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :


          • Mfr Part Number: SYS-5016I-MTHF
          • Motherboard: Super X8SIE-F
          • Processor: LGA1156
            • Supports Intel Xeon X3400/L3400 Series Processors
            • Supports Intel Core i3/ Pentium G6950/ Celeron G1101 Processors
          • Chipset: Intel 3420
          • Memory: 6x 240pin DDR3-1333/1066/ 800 MHz DIMM Slots, Supports up to 48GB ECC/REG Memory or up to 16GB ECC/ Unbuffered Memory
          • Slots: 1x PCI-Express 2.0 x16 Slot via riser card
          • SATA: 6x SATA2 Ports, Support RAID 0, 1, 5, 10 (Windows), Support RAID 0, 1, 10 (Linux)
          • Video: Matrox G200eW Graphics w/ 16MB DDR2 Video Memory
          • LAN: 2x Intel 82574L Gigabit Ethernet Controllers; 1x Realtek RTL8201N PHY (dedicated IPMI)
          • Drive Bays: 4x 3.5" SATA Hot-swap drive bays
          • Ports: 8x USB 2.0 Ports (2 rear, 4 via headers, 2 on-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Ports
          • Form Factor: 1U Rackmount
          • Power Supply: 350W 80 PLUS Gold Certified AC Power Supply w/ PFC
          • System Cooling: 4x 4cm 12,500 RPM PWM Fans
          • Front Panel:
            • Buttons: Power On/Off, System Reset
            • LEDs: Power, Hard drive activity, 2x Network Activity, System Overheat/ Fan Fail
            • Ports: 2x Front USB Ports, 1x Serial COM Port
          • Color: Black
          • Dimensions (WxDxH): 17.2 x 19.8 x 1.7 inch / 437.0 x 503.0 x 43.0 mm
          • Gross Weight: 38.0 lbs / 17.2 kg



          Specifications :

          General Information

          Manufacturer Supermicro Computer, Inc
          Manufacturer Part Number SYS-5016I-MTHF
          Manufacturer Website Address http://www.supermicro.com
          Brand Name Supermicro
          Product Line SuperServer
          Product Model 5016I-MTHF
          Product Name SuperServer 5016I-MTHF Barebone System
          Product Type Barebone System
          UPC 672042083763

          Chipset

          Chipset ManufacturerIntel
          Graphics Controller ManufacturerMatrox
          Graphics Controller ModelG200eW
          Graphics Memory TechnologyDDR2 SDRAM
          Ethernet TechnologyFast Ethernet
          Total Number of USB Ports8
          Network (RJ-45)Yes

          Power Description

          Maximum Power Supply Wattage350 W
          Product ColorBlack
          Height1.7"
          Width17.2"
          Depth19.8"
          Weight (Approximate)37.92 lb

          Miscellaneous

          Package Contents
          • SuperServer 5016I-MTHF Barebone System
          • 1 x Super X8SIE-F Motherboard
          • 1 x 1U Chassis
          • 1 x BPN-SAS-815TQ-O-P
          • 1 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
          • 1 x SATA SET OF 4-56/45.5/35/23CM ROUND S-RA
          • 1 x 1CH internal 10P to 4P USB 2.0 cable for LCD,DVD, 70cm
          • 1 x mini-SATA to USB adapter for slim DVD
          • 1 x BLACK PANASONIC SLIM DVD ROM SATA DRIVE
          • 1 x BLACK TEAC SLIM DVD ROM SATA DRIVE ROHS
          • 1 x DRIVER CD FOR X8 UP MOTHERBOARD
          • 1 x RSC-RR1U-E16 with PIC-E x16 output(Riser Card)
          • 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156
          • 1 x 1U 350W MULTI OUTPUT 80PLUS GOLD PWS
          • 1 x Front ctrl cable 16 PIN TO 16 PIN, LF, Flat (L=54cm)
          • 1 x ROUND FLOPPY CABLE 60CM FOR 5013S, LF
          • 4 x 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
          • 4 x SCA TYPE ASSY (W/O LOGO)BLACK
          • 1 x THIRD GENERATION GUIDE RAIL ASSY. Outer slides extendable length: 26" to 33.5"
          Environmentally FriendlyYes

          Warranty

          Limited Warranty3 Year
