- 500W Redundant w/ 80PLUS Platinum Level
- 8 x 2.5" SAS/SATA Hot-Swap Drive Bays
- 3 40mm Fans

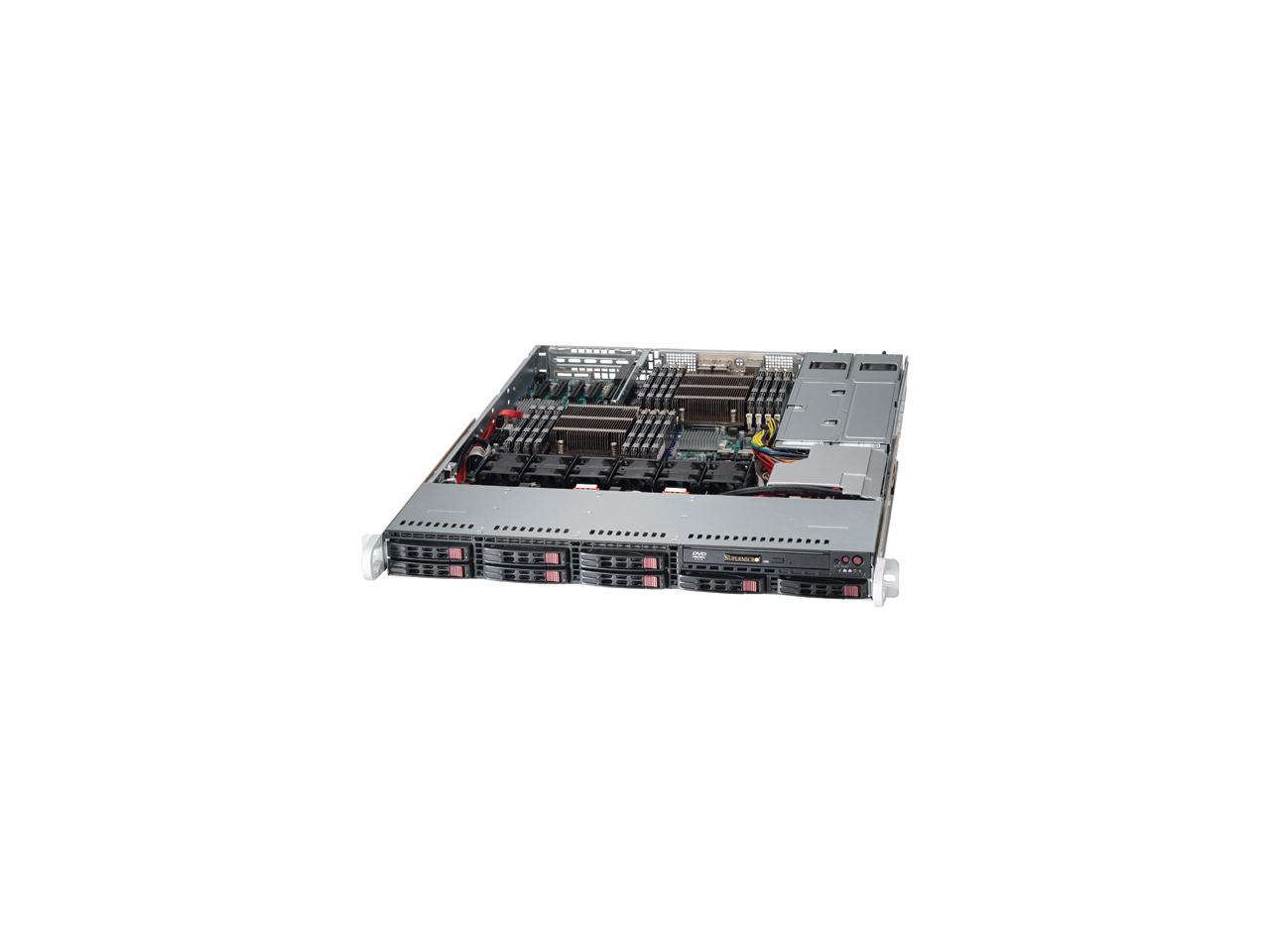

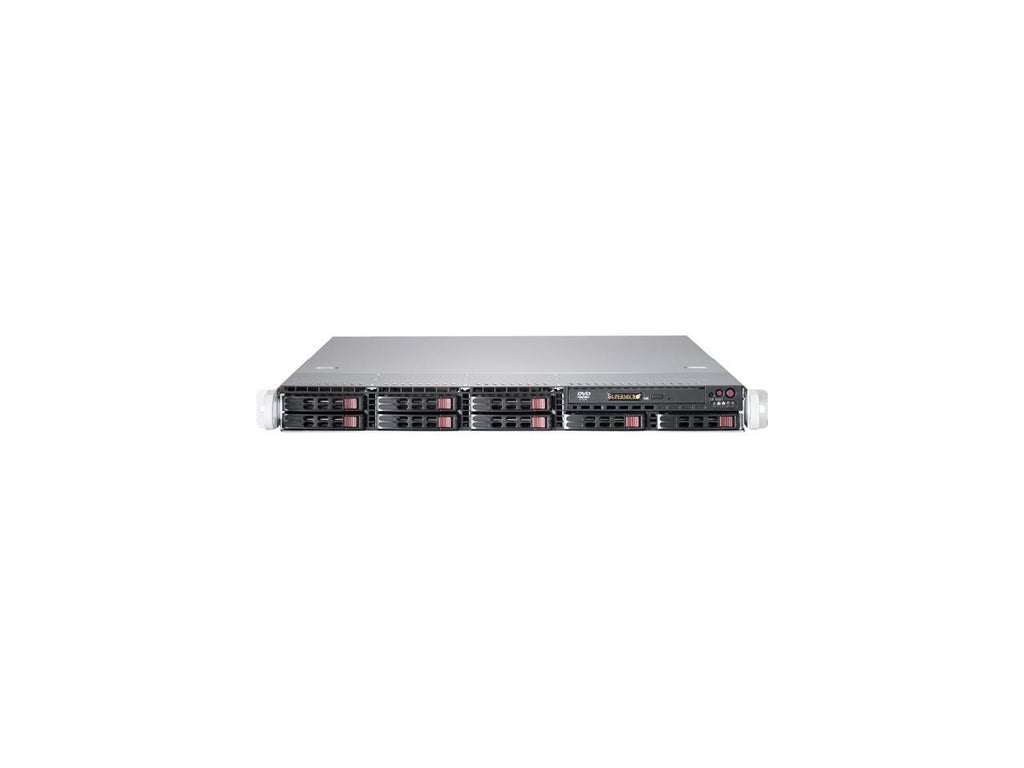

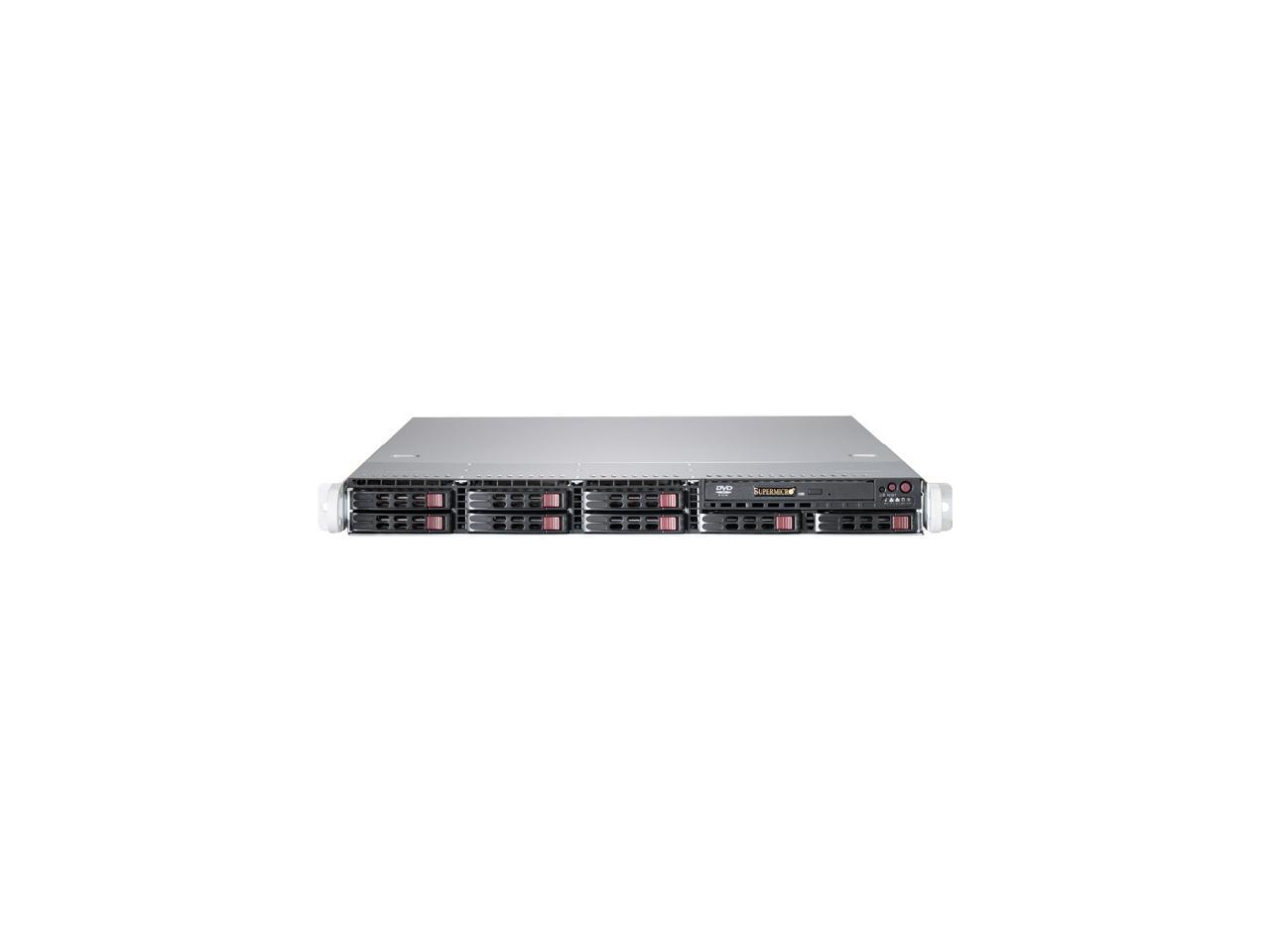

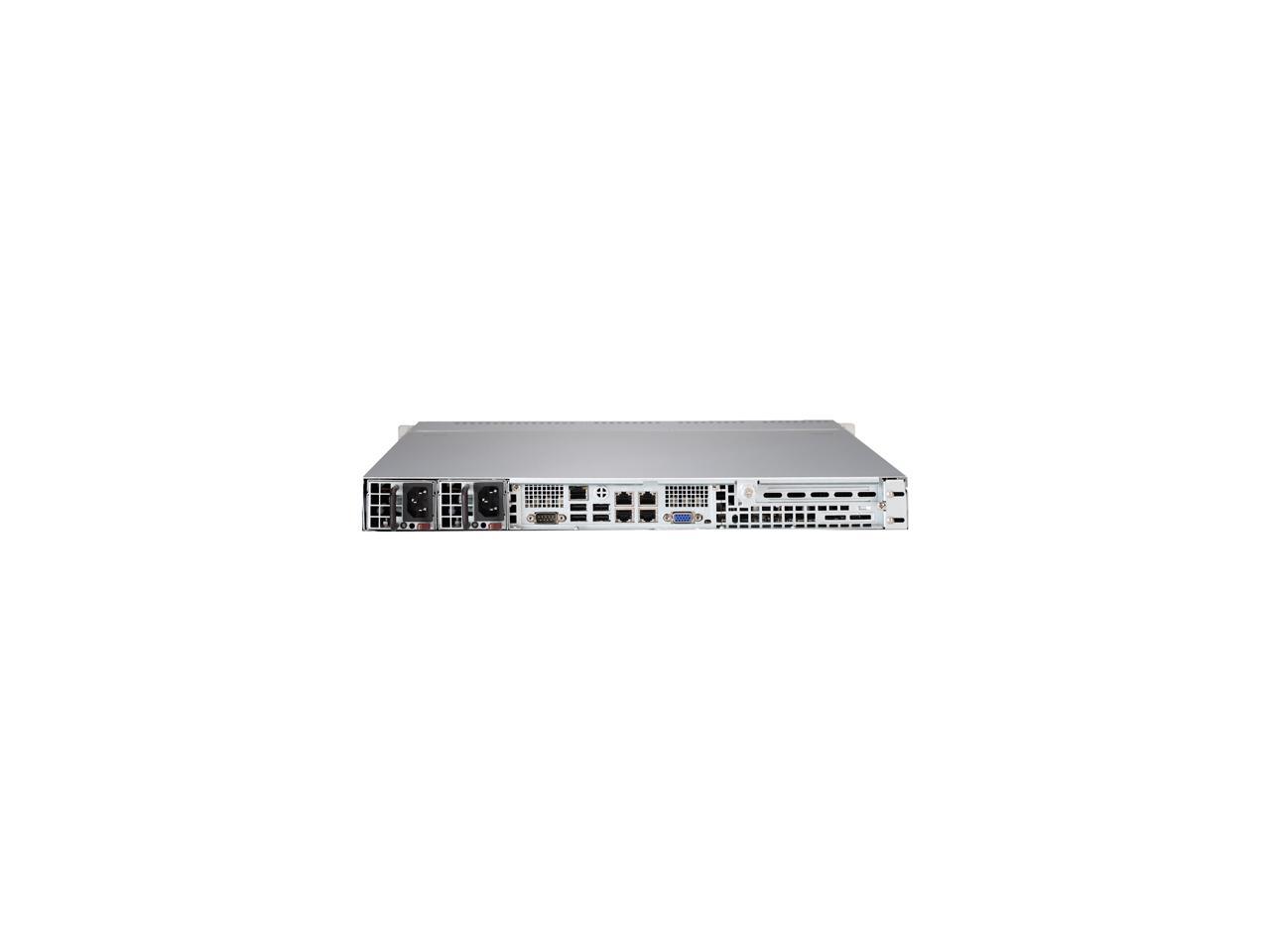

Case Type: 1U Rackmount Color: Black M/B Type: EATX (12 x 13 inch) & Support Motherboard Size 13.68 x 10.50 inch Processor Support: Dual, Single Intel / AMD Processors Drive Bays: 8x 2.5' Hot-swap SAS/SATA HDD Trays Expansion Slots: 1x Full-height and Full-length PCI Expansion Slot Backplane: 1x 1U SAS/SATA Backplane w/ SES2 Cooling System: 3x (40x56mm) Counter-rotating PWM Fans Front Panel: Buttons: Power On/Off, UID, System Reset LEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID) Power Supply: 500W 80PLUS Platinum Certified High-efficiency Power Supply w/ PMBus Dimensions (WxDxH): 17.2 x 23.5 x 1.7 inch / 437.0 x 597.0 x 43.0 mm Gross Weight: 25.0 lbs / 11.34 kg Chassis Only. CPU, MB, HD, memory and other parts are not included. Package Contents: SuperChassis 113TQ-R500CB System Cabinet 1 x Backplane Sup 8x2.5 Hot-swap SAS/SATA HDD, SATA con 2 x 48cm SATA Round S-RA PBF Cable 2 x 8pin to 8pin Ribbon Cable with Tube for SGPIO, 40cm, PBF 2 x 48cm SATA Round S-S PBF Cable 1 x SC112 24pin Redundant PWS Distributor 1 x Front Control cable 20pin to 20pin with Tube,70cm, PBF 1 x Black DVD Dummy Tray support 1x2.5 HDD for SC113,815,825,836 1 x Front Control Board for SC113,113M (U/C Share) 1 x Fan Holder for Six 40X56MM Counter Rotating Fans 3 x Dummy Fans 40x56mm for SC815T (cost-effective) 8 x Black gen 3 Hot swap 2.5 HDD Trays 1 x SC113 Control Panel Module (w/o DVD) 1 x Outer Rail Set, Screw Type 1 x Inner Rail Set, Front, Short, Screw Type 1 x Inner Rail Set, Extension, Long, Screw Type 1 x STD Rear Window for SC113 Redundant PWS Product Type: Server Case Motherboard Supported: EATX Product Type: Server Case Manufacturer Part Number: CSE-113TQ-R500CB Motherboard Supported: EATX Color: Black Form Factor: Rack-mountable Color: Black Form Factor: Rack-mountable Manufacturer: Supermicro Computer, Inc Product Model: 113TQ-R500CB Product Name: SuperChassis 113TQ-R500CB System Cabinet Product Line: SuperChassis Brand Name: Supermicro Brand Name: Supermicro Height: 1.7 Width: 17.2 Depth: 23.5 Number of External 5.25 Bays: 1 Compatible Rack Unit: 1U Number of Power Supplies Supported: 2 Number of Power Supplies Installed: 2 Power Supply Wattage: 500 W Number of Total Expansion Bays: 9 Product Family: SuperChassis Number of Fans Supported: 5 Number of Fans Installed: 3 Number of External 2.5 Bays: 8 Number of External 5.25 Bays: 1 Compatible Rack Unit: 1U Number of Power Supplies Supported: 2 Number of Power Supplies Installed: 2 Power Supply Wattage: 500 W Number of Total Expansion Bays: 9 Number of Total Expansion Slots: 1
