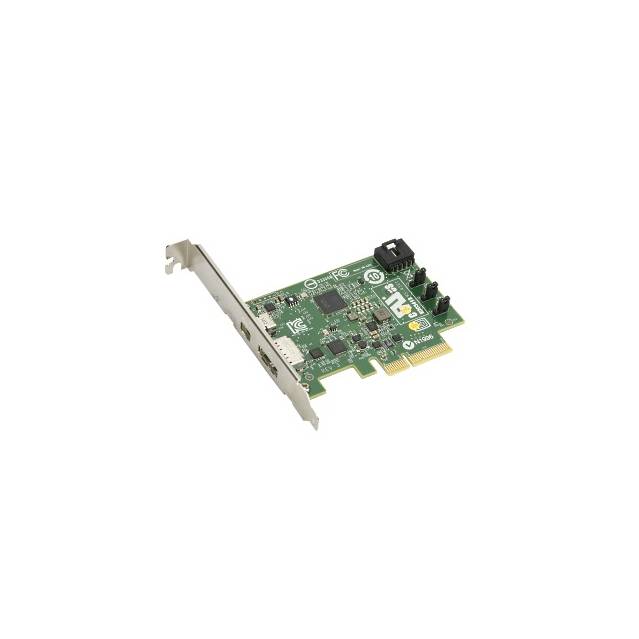

Mfr Part Number: AOC-TBT-DSL5320
-
Form Factor: Single slot (3.71" length x 2.99" height) with full height bracket
-
Chipset: DSL5320 Thunderbolt 2 controller (Falcon Ridge)
-
Thunderbolt Connector: 1
-
DisplayPort Connector: 1
-
DisplayPort Revision: 1.2
-
PCIe Connection: PCIe 2.0 x4 from PCH PCIe slot
-
GPIO Connector: Needs GPIO cable to TBT GPIO header on MB (Supported on X10DAi/C/X, X10DAL and X10DRG-Q)
-
Thunderbolt Bandwidth: 20 Gbps
-
TBT AIC Power Consumption: 4.1W max
