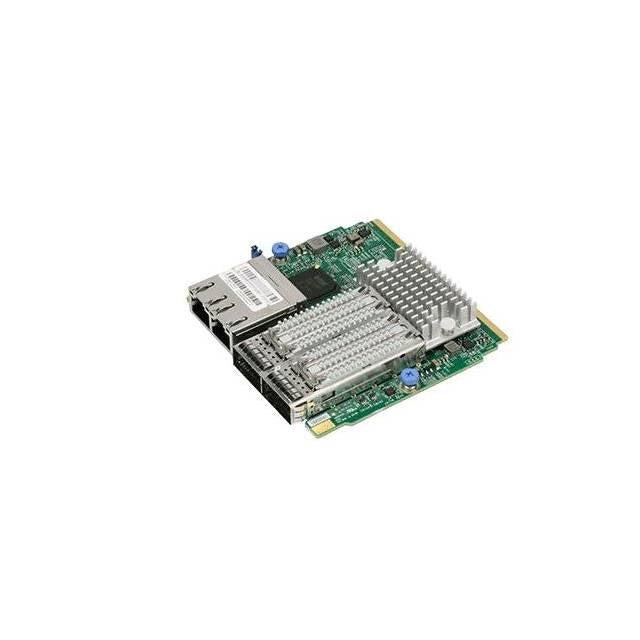

Name: Supermicro Aoc-Mhibf-M2Q2Gm-O Siom 2-Port Infiniband Fdr Adapter
Brand: Supermicro
SKU: AOC-MHIBF-M2Q2GM-O
Price: 1029.37 USD
Availability: InStock

Supermicro Aoc-Mhibf-M2Q2Gm-O Siom 2-Port Infiniband Fdr Adapter

Roll over image to zoom in Click on image to zoom

Mfr Part Number: AOC-MHIBF-M2Q2GM-O
Add-on Card: The Ultimate InfiniBand FDR Adapter, in Supermicro Super I/O Module (SIOM) Form Factor
Key Features:
- Super I/O Module (SIOM) Form Factor
- Mellanox ConnectX-3 Pro InfiniBand FDR controller
- Dual QSFP connector model
- Up to 56Gbps InfiniBand or 40Gbps Ethernet
- Virtual Protocol Interconnect (VPI)
- VXLAN and NVGRE
- Intel i350 GbE controller
- Dual RJ45 Connectors
- NC-SI for Remote Management
- Asset Management Features with thermal sensor
- RoHS compliant 6/6
Compliance: RoHS: RoHS Compliant 6/6, Pb Free
General:
- Super I/O Module (SIOM) Form Factor
- Mellanox ConnectX-3 Pro FDR controller
- Intel i350 GbE controller
- Dual QSFP ports and Dual RJ45 port
Cables Support:
- InfiniBand FDR: QSFP 56Gbps Copper cables
- GbE: RJ45 Category 5/5e up to 100m
Power Consumption: Maximum 11W
Operating Conditions:
- Operating temperature: 0C to 55C (32F to 131F)
- Storage temperature: -40C to 70C (-40F to 158F)
- Storage humidity: 90% non-condensing relative humidity at 35C
Physical Dimensions (L x H): Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
Supported Platforms:
- Supermicro motherboards with Super I/O Module slot
- Supermicro server systems with Super I/O Module slot
Compatibility Matrices:
- Servers: Supermicro Servers with SIOM support
- Cables & Transceivers: Networking Cables & Transceivers
InfiniBand FDR QSFP Specifications:
- Connectivity:
  - Interoperable with InfiniBand or 40GbE switches
  - Passive copper cable with ESD protection
- InfiniBand:
  - IBTA Specification 1.2.1 compliant

  - Hardware-based congestion control

  - 256 to 4Kbyte MTU, 2GB messages
- Enhanced InfiniBand:
  - Hardware-based reliable transport
  - Collective operations offloads
  - Hardware-based reliable multicast
  - Extended Reliable Connected transport
  - Enhanced Atomic operations
- Ethernet:
  - IEEE 802.3ba 40 Gigabit Ethernet

  - IEEE Std 802.3ad Link Aggregation

  - IEEE Std 802.3az Energy Efficient Ethernet

  - IEEE Std 802.1Q, .1P VLAN tags and priority

  - IEEE P802.1bb D1.0 Priority-based Flow Control

  - IEEE 1588
  - Jumbo frame support (9600B)
- Hardware-based I/O Virtualization:
  - Single Root IOV
  - Address translation and protection
  - Dedicated adapter resources
  - Multiple queues per virtual machine
  - Enhanced QoS for vNICs
  - VMware NetQueue support
- Overlay Networks: VXLAN and NVGRE
- Additional CPU Offloads:

  - RDMA over Converged Ethernet

  - TCP/UDP/IP stateless offload

  - Intelligent interrupt coalescence
- FlexBoot Technology:

  - Remote boot over InfiniBand

  - Remote boot over Ethernet

  - Remote boot over iSCSI
- Protocol Support:

  - Open MPI, OSU MVAPICH, Intel MPI, MS

  - MPI, Platform MPI

  - TCP/UDP, EoIB, IPoIB, RDS

  - SRP, iSER, NFS RDMA

  - uDAPL
- Operating System Support:

  - Citrix XenServer 6.1

  - RHEL/CentOS 5.X and 6.X, Novell SLES10 SP4; SLES11 SP1, SLES 11 SP2, OEL, Fedora 14, 15, 17, Ubuntu 12.04
  - Windows Server 2008/2012/2012 R2

  - FreeBSD

  - OpenFabrics Enterprise Distribution (OFED)

  - OpenFabrics Windows Distribution (WinOF)

  - VMware ESXi 4.x and 5.x
GbE RJ45 Specifications:
- Ethernet and Virtualization Features:

  - PC-SIG SR-IOV support

  - Jumbo Frames support
- Performance and Efficiency Features:

  - Energy Efficient Ethernet (EEE)

  - TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage

  - Low Latency Interrupts
- Management Features:

  - Asset Management support on Supermicro platforms

  - Preboot eXecution Environment (PXE) support

  - iSCSI Remote Boot Support

  - NC-SI for Remote Management via Intel i350 GbE RJ45 connector
- Operating System Support:

  - Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)

  - Windows 8.1, 8, 7 (x64 Edition)

  - RedHat Linux

  - SUSE Linux

  - FreeBSD

  - UEFI

  - VMware

General Information

UPC	672042273089
