Startech.Com Industrial Fiber To Ethernet Media Converter - 100Mbps Sfp To Rj45/Cat6 - Singlemode/Multimode Optical Fiber To Copper Network - 12-56V Dc - Ip-30/ -40 To +75C

Startech.Com Industrial Fiber To Ethernet Media Converter - 100Mbps Sfp To Rj45/Cat6 - Singlemode/Multimode Optical Fiber To Copper Network - 12-56V Dc - Ip-30/ -40 To +75C

SKU:IMC100MSFP

Regular price $116.40
Regular price Sale price $116.40
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30/ -40 to +75C (IMC100MSFP)

          StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30/ -40 to +75C. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T,100Base-TX, Converter output interface: 100Base-FX. Fiber optic connector: SFP, Connectivity technology: Wired. Fiber mode structure: Multi-mode, Single-mode, Mean time between failures (MTBF): 500000 h. Product colour: Black, Housing material: Aluminium, International Protection (IP) code: IP30. Input voltage: 12 - 56 V, Power consumption (typical): 1.92 W, Power plug type: Type N

          "10/100 Mbps Media Converter | 100Mbps SFP to RJ45/Cat6 | 12-56V DC | IP-30 Housing

          An industrial media converter that converts fiber to copper at a network endpoint.

          A Flexible Solution Covering Different Requirements

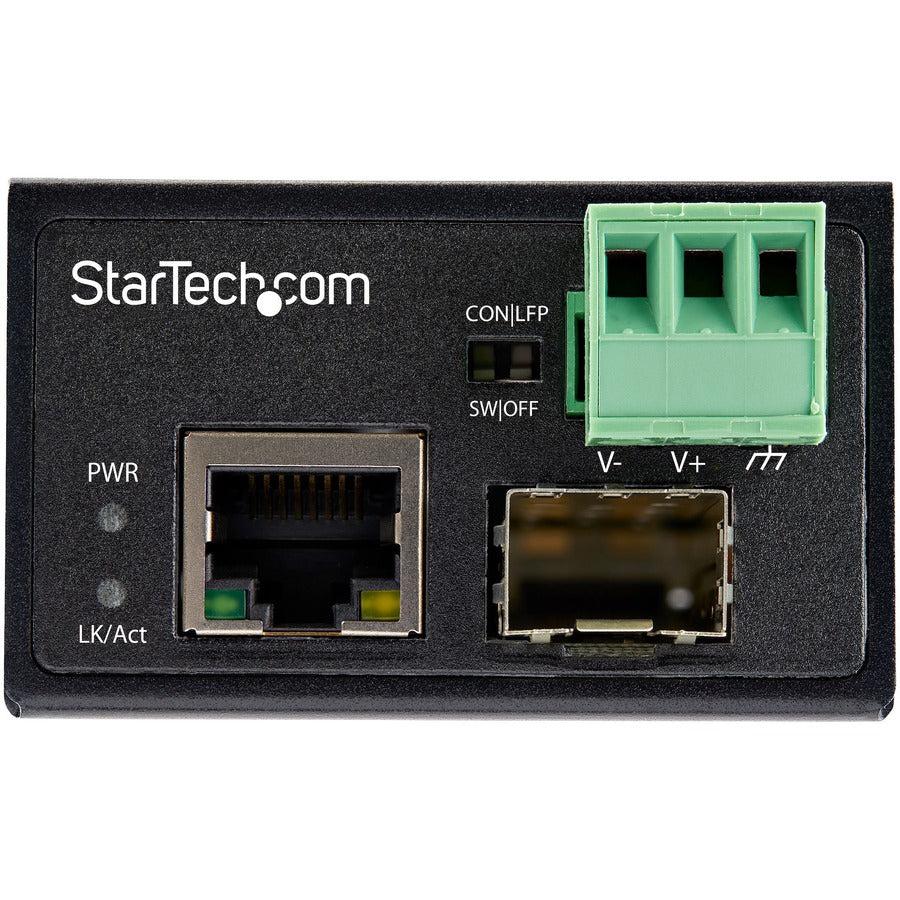

          This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.

          For Mission-Critical Applications

          Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:

          Vibration: EN 60068-2-6

          Shock: EN 60068-2-27

          Free-Fall: EN 60068-2-32

          Dual Power Inputs

          Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

          The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

          The StarTech.com Advantage

          - COMPACT SIZE + FLEXIBLE POWER INPUT: Smallest form factor Fiber to Ethernet media converter - extends & converts 100Mbps fiber to RJ45 copper; powered by 18-36V AC or 12V-56V DC for solar, auto & rail
          - ROBUST DESIGN: Industrial Network Media Converter w/MTBF 500,000+hrs @ 50C
          - Vibration, shock & freefall rated"

          Specifications :

          General Information

          Manufacturer StarTech.com
          Manufacturer Part Number IMC100MSFP
          Manufacturer Website Address http://www.startech.com
          Brand Name StarTech.com
          Product Name Transceiver/Media Converter
          Product Type Transceiver/Media Converter
          UPC 0065030889667
          Ethernet TechnologyFast Ethernet
          Network (RJ-45)Yes
          Height2"
          Width1.4"
          Depth2.3"
          Weight (Approximate)2.90 oz

          Miscellaneous

          Package Contents
          • Transceiver/Media Converter
          • Mounting Hardware Kit
          • Quick-Start Guide
          • Terminal Block to Barrel Power Connector Adapter
          • Terminal Block
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
