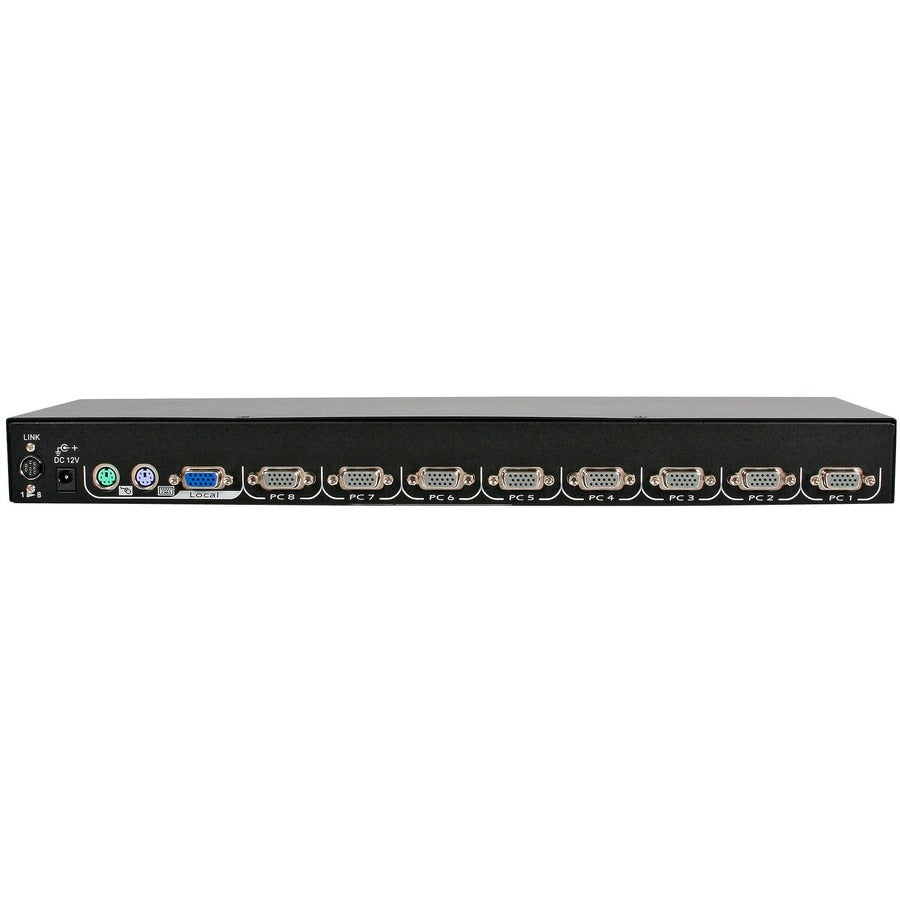

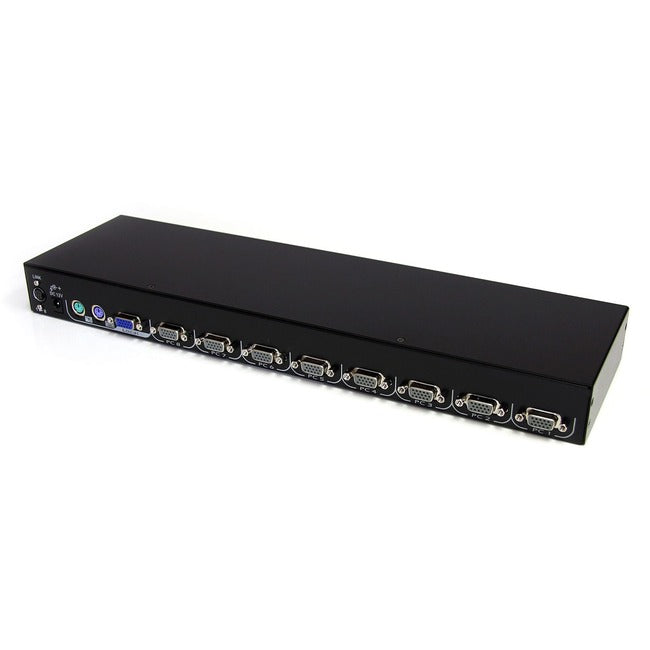

StarTech.com 8-port KVM Module for Rack-mount LCD Consoles with additional PS/2 and VGA Console CAB831HD

Description :

StarTech.com 8-port KVM Module for Rack-mount LCD Consoles with additional PS/2 and VGA Console

This 8-port KVM module works with the StarTech.com series of rack-mounted LCD consoles, enabling you to control eight servers from one location. You can upgrade a single port LCD console or replace a faulty console (see our list of compatible LCD consoles below).

With independent VGA and PS/2 keyboard and mouse ports, you can also use this switch as a standalone KVM, creating a discreet rack-mountable KVM solution.

Increase your productivity

By adding this KVM module to your rack mountLCD console you can control eight individual computers or servers from a centralized location.

Hassle-free integration

Because the KVM module works with your existing LCD console, you can ensure simple integration into your server room setup. To ensure compatibility this KVM module supports any operating system has been extensively tested in Windows®, Mac and Linux environments.

You can also connect to both PS/2 and USB servers using StarTech.com's convenient line of interface specific KVM cables. The cables come in variety of lengths with PS/2 or USB depending on your specific server requirements.

Compatible LCD consoles

North America

RACKCOND1701 (add 8 port module) RACKCONS1908 (replace original module) RACKCONS1916 (replace original module) RACKCONS1708 (replace original module) RACKCONS1716 (replace original module)

United Kingdom

RACKCOND1701 (add 8 port module) RKCONS1716GB(replace original module) RKCONS1908GB(replace original module)

Europe

RACKCOND1701(add 8 port module) RKCOND1701FR - French Keyboard (add 8 port module)

The CAB831HD is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

More from the Manufacturer

• Each computer name can be defined via the OSD menu (14 char.)


• Login authentication restricts access to authorized users


• Auto Scan Mode lets you switch between computers for easy monitoring


• Hot-pluggable feature allow computers to be added or removed without shutting down


• Compact 1U rack height takes up very little cabinet or rack space


• No software or drivers required


• Compatible with PC, Mac and Sun servers and systems


• Operating system independent


• Supports PCs with USB or PS/2 keyboard and mouse connectors


• Universal 8 port KVM switch Module controls up to 8 computers directly and up to 64 computers by cascading 8 additional KVM switches

Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: REACH
Taa Compliant: Yes
Country Of Origin: Taiwan
Rack Height: 1U
Brand Name: StarTech.com
Compatibility:

• Supports IntelliMouse (Pro)


• Plug and Play

Form Factor: Rack-mountable
Manufacturer: StarTech.com
Product Name: 8 Port PS/2 KVM Switch Module
Product Line: StarView
Manufacturer Part Number: CAB831HD
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1
Package Contents:

• 8 Port PS/2 KVM Switch Module
• 2 x Mounting Brackets (w/ Screws)
• 1 x Instruction Manual

Limited Warranty: 3 Year
Weight (Approximate): 4.85 lb
