Description :
StarTech.com HDBaseT Extender Kit with Compact Transmitter - HDMI over CAT5 - HDMI over HDBaseT - Up to 4KStarTech.com 4K HDMI Extender with Compact Transmitter - HDBaseT - UHD 4K. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e,Cat6. Connectivity technology: Wired. AC input voltage: 100-240 V, Operating voltage: 12 V, Input current: 0.6 A. Width: 68 mm, Depth: 80 mm, Height: 25 mm. Package width: 196 mm, Package depth: 293 mm, Package height: 74 mm
HDBaseT Extender Kit | 7.1 Audio | Mounting Hardware Included | Up to 70 m (230 ft.)
This 4K HDMI extender uses HDBaseT to transmit your HDMI A/V signal to a remote location up to 70 m (230 ft.) away.
Easy and Discreet Installation

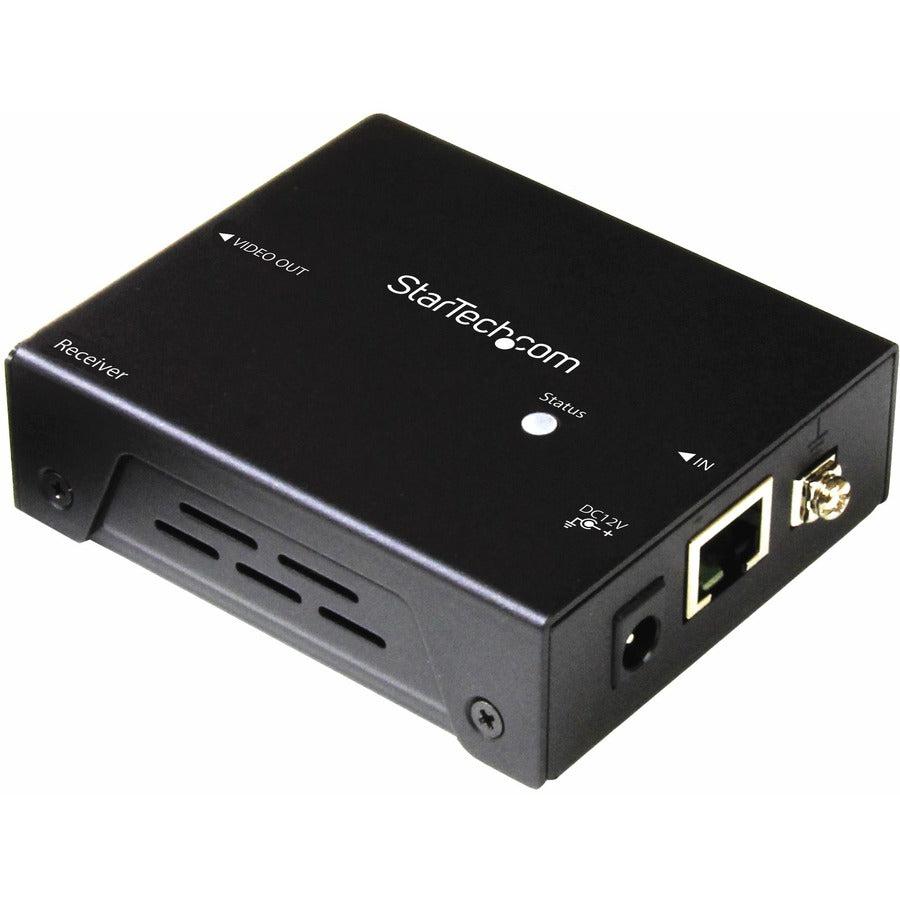

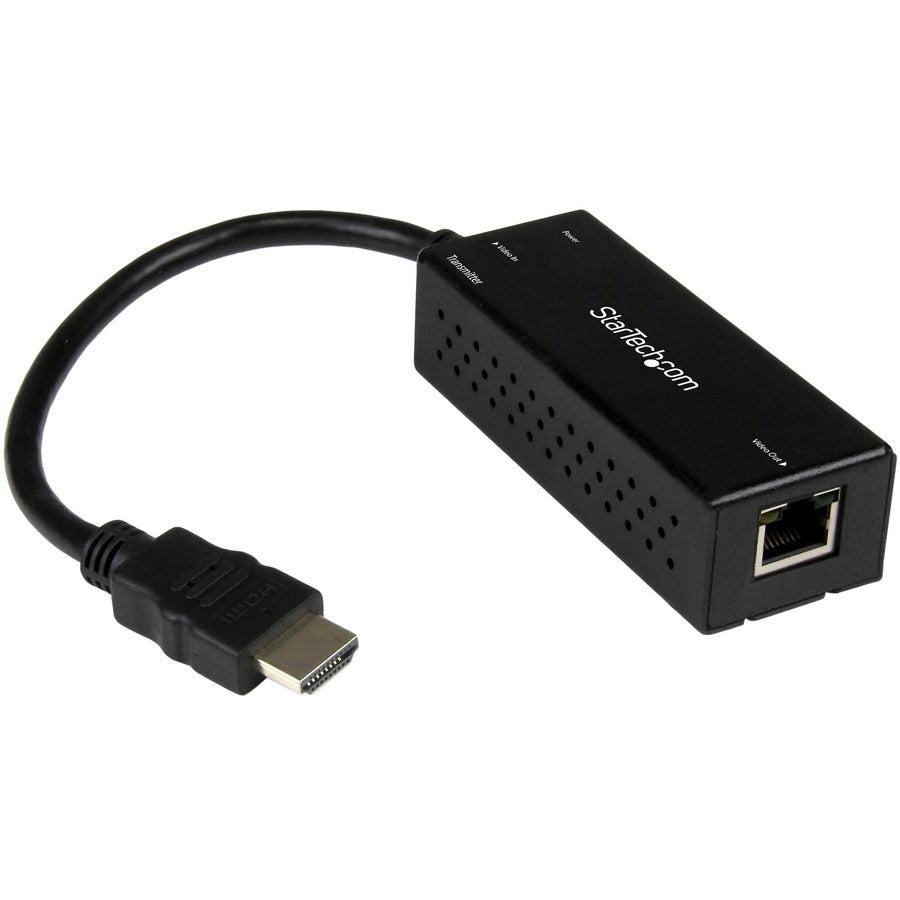

The transmitter in this HDMI HDBaseT extender kit features a small footprint and built-in HDMI cable that connects directly to your source for reduced clutter. It’s powered from a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is included for the receiver for a discreet, professional installation.
Get 4K Video at 130 ft. (40 m)
This HDMI over CAT6 extender maintains your UHD 4K picture quality, even at 130 feet away from your video source. Because the extender is backward compatible with 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great. The extender also supports 7.1 audio to ensure all audio channels are captured.
Seamless Integration with Your Existing Infrastructure
The kit extends HDMI over a single cable, unlike some HDMI extenders that require two cables, reducing potential failure points and lowering your cabling costs. Ideal for digital signage, the HDMI over CAT6 extender uses standard CAT5e, CAT6 or CAT7 cables to extend HDMI video over the Ethernet infrastructure that's already in your building.
The ST121HDBTDK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Simple and versatile installation with a compact, USB-powered transmitter that features a built-in HDMI cable
- Astonishing picture quality with support for UHD resolutions up to 4K
- Easy integration with existing CAT5/CAT6/CAT7 infrastructure
Specifications :
General Information
Manufacturer | StarTech.com |
---|---|
Manufacturer Part Number | ST121HDBTDK |
Manufacturer Website Address | http://www.startech.com |
Brand Name | StarTech.com |
Product Name | HDBaseT Extender Kit with Compact Transmitter - HDMI over CAT5 - Up to 4K |
Product Type | Video Extender Transmitter/Receiver |
UPC | 065030864916 |
Network (RJ-45) | Yes |
---|
Package Contents |
|
---|---|
Environmentally Friendly | Yes |
Limited Warranty | 2 Year |
---|
