Startech.Com 2 Port Rs232/422/485 Pci Serial Adapter Card W/ Esd Protection

SKU: PCI2S232485I

Regular price $110.61
Regular price Sale price $110.61
Sale Sold out
Shipping calculated at checkout.
          Que. & Ans.

          Description :

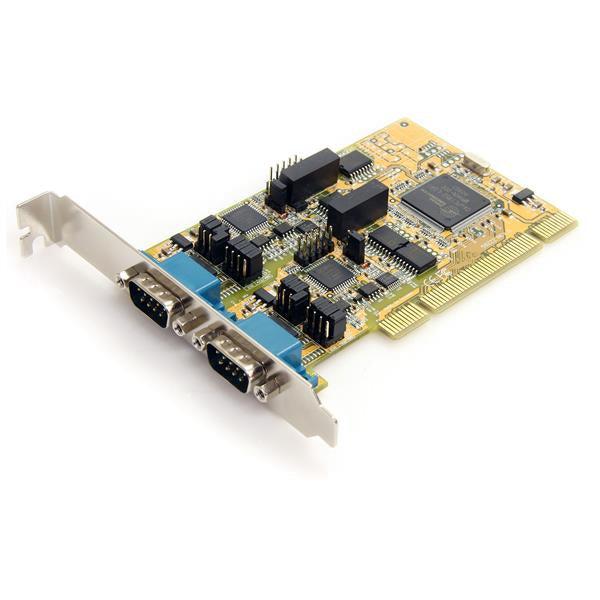

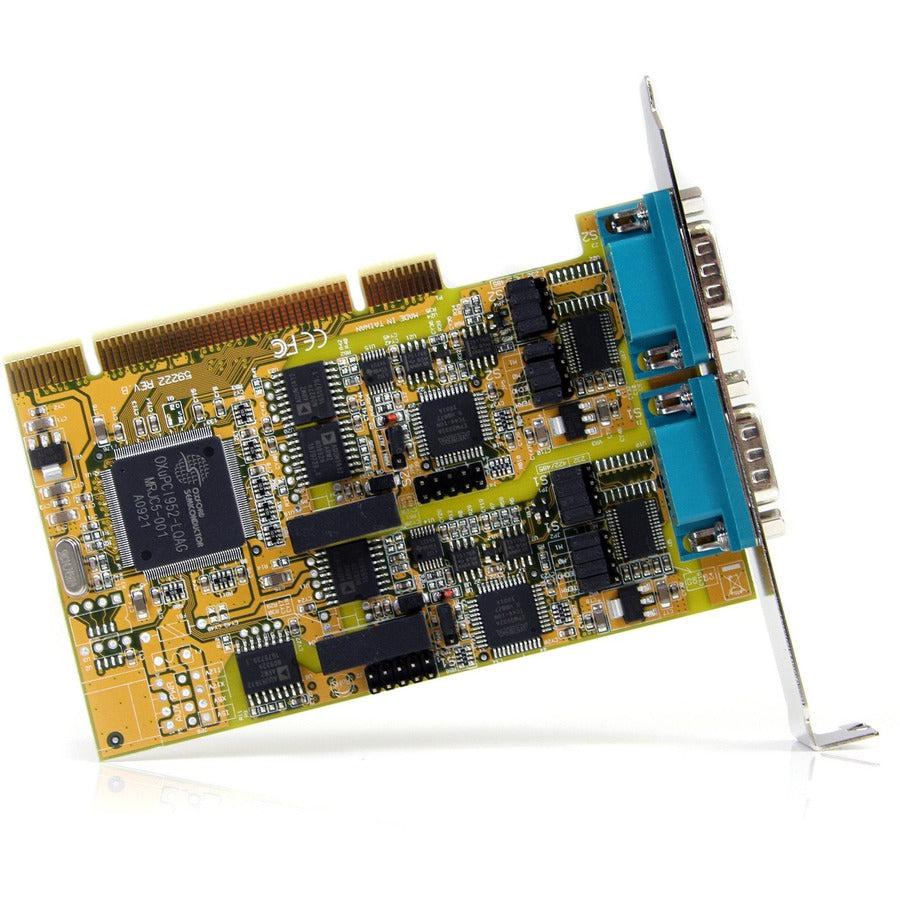

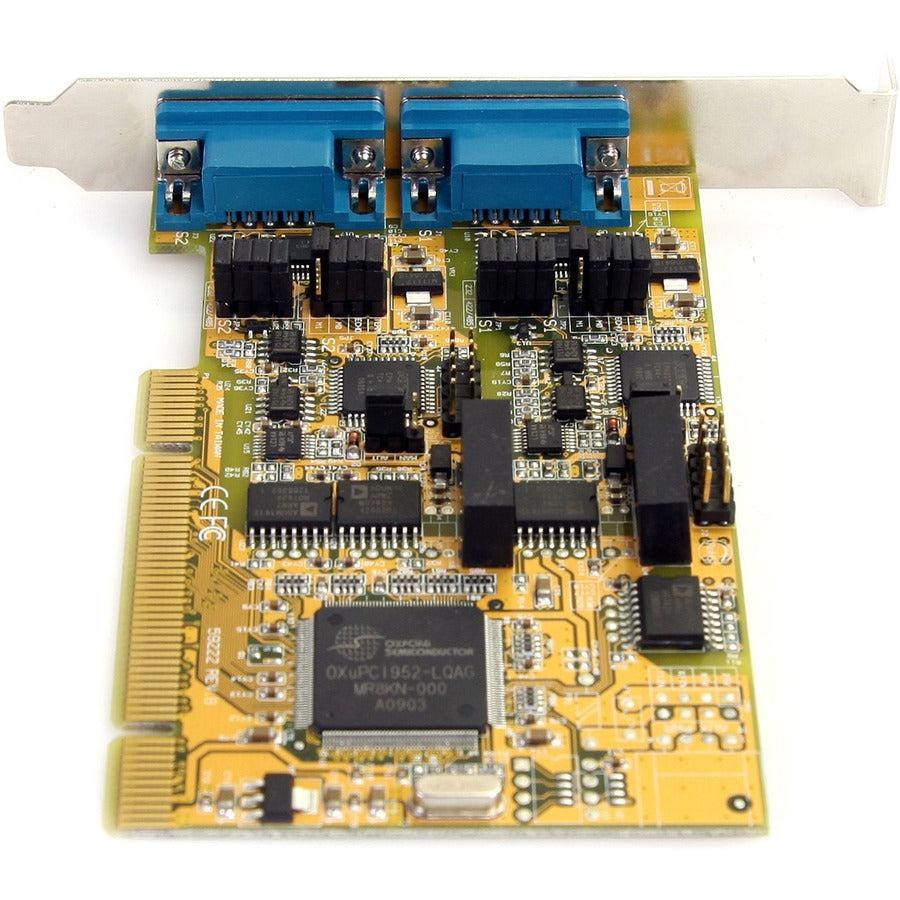

 2 Port RS232/422/485 PCI Serial Adapter Card w/ ESD Protection

 2 Port RS232/422/485 PCI Serial Adapter Card w/ ESD Protection. Host interface: PCI/PCI-X, Output interface: Serial, Expansion card standard: PCI 2.2. Product colour: Yellow, Mean time between failures (MTBF): 234450 h, Certification: CE, FCC. Chipset: PLX/Oxford - OXuPCI952, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016. Width: 74 mm, Depth: 121 mm, Height: 18 mm

          Control and communicate with two serial devices even with mixed RS-232 & 485 protocols

          The PCI2S232485I PCI Serial Adapter Card lets you turn a PCI or PCI-X slot into 2 serial ports capable of communicating in RS-232, RS-422, or RS-485 operating modes, at baud rates up to 921.6 Kbps.

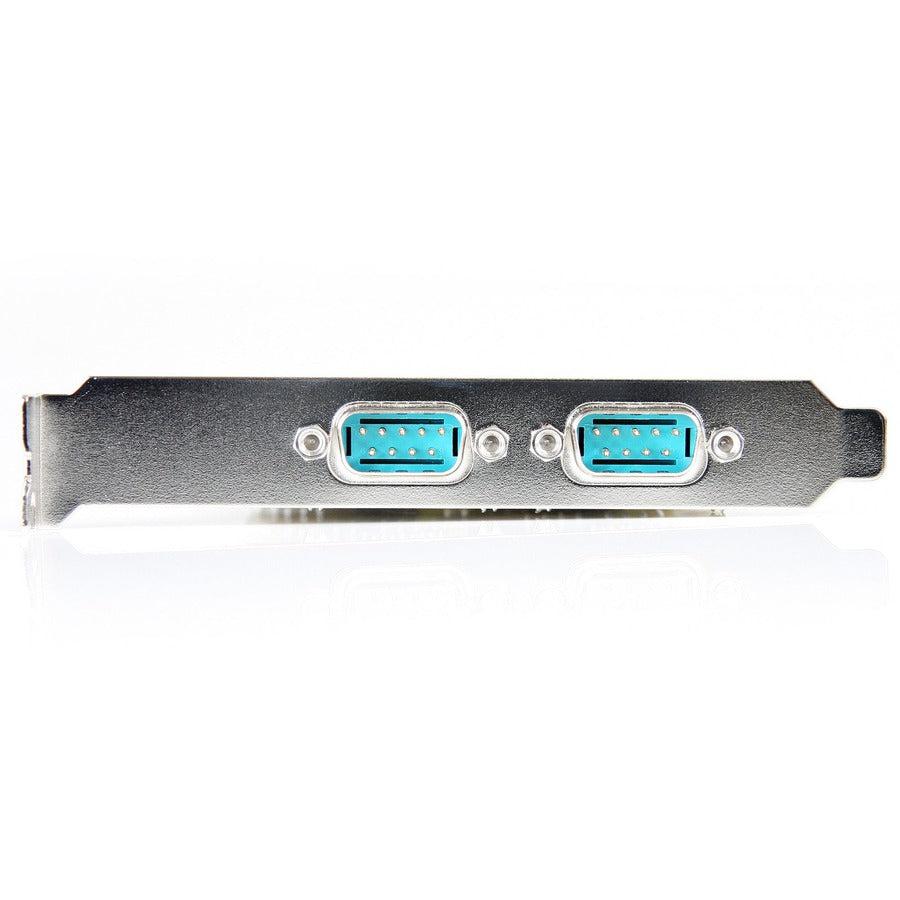

          This universal serial adapter not only features two DB9 serial ports that can be independently configured, but also supports nearly any configuration including: RS-422, RS-485 2-wire, RS-485 4-wire, or RS-232 modes. Designed for reliability, this 2-port PCI Serial card also features built-in ESD (Electro-Static Discharge) protection to ensure that your connected serial devices remain protected.

          For added versatility, the PCI RS232 card is compatible with a broad range of operating systems, including Windows, Windows Server, Windows Embedded and Linux platforms, for simple installation into mixed environments.

          Backed by a lifetime warranty and free lifetime technical support.

          The Advantage

          - Communicate with multiple devices over mixed protocols with RS232, RS422 and RS485 compatibility
          - Install on many different operating systems with broad OS support including embedded and POS systems
