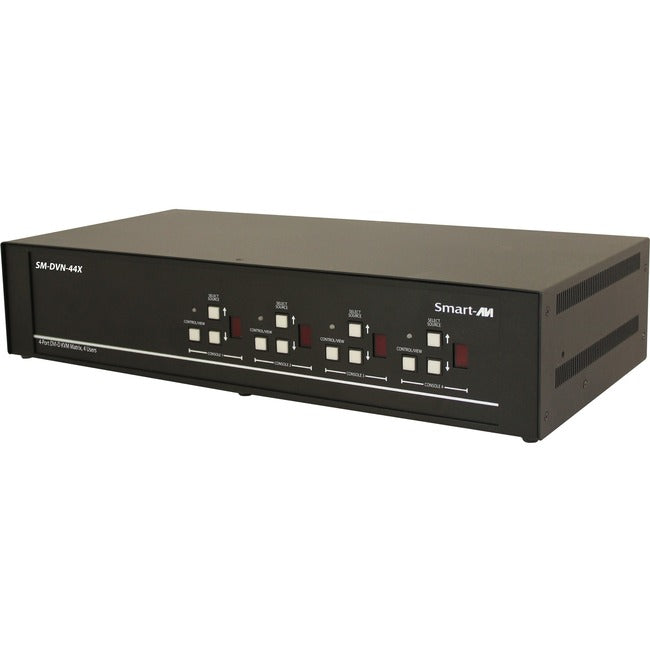

SmartAVI SM-DVN-44X KVM Switchbox

Description :

SmartAVI SM-DVN-44X KVM Switchbox
The SM-DVN-44X is a dedicated multi-platform KVM Switch capable of managing up to 4 different computers through four monitors, USB keyboard and mouse, a set of speakers, and USB devices like printers, memory devices, scanners, etc. With multi-user support, the SM-DVN-82X can accomodate up to 4 users. The video connectors on the unit are DVI-D, which allows support for HDMI using active adapters or cables. When using a DVI or an HDMI monitor, computers can be a mix of either DVI or HDMI.

The SM-DVN-44X supports resolutions of up to 2560x1600 @60Hz with zero pixel loss from TMDS signal correction.

APPLICATION DIAGRAM

The main function of this KVM Switch is to centralize the access of several computer into a single, comprehensive KVM Station. Its USB 2.0 functionality support allows users at the console to access USB devices that would otherwise be unavailable on conventional KVM Switches. For example, it allows the use of a flash memory drive or camera without having to plug it directly into the remote computer. The SM-DVN-44X is a perfect solution for the medical or industrial field where it may not be practical or safe to have on or more CPUs in the general vicinity.

The SM-DVN-44X can be utilized concurrently by up to 4 users, allowing for efficient usage and sharing of computing resources. The front panel console permits each user to easily access and switch between the connected computers. The centralization of input computers and user access consoles reduces the amount of cabling and the number of workstations required for complex computing environments, thereby facilitating organization and simplicity.

FLEXIBLE CONTROL

RS-232

Any external device or program supporting RS-232 can control the SM-DVN-44X. The SM-DVN-44X uses a very simple protocol, enabling easy integration with the RS-232 control devices.

USB/KEYBOARD

Hot keys enable the user to switch and control all the different functions of the KVM Switch

FLEXIBLE SHARING

INDEPENDENT SIMULTANEOUS DEVICE SELECTION

Flexibility is key with the SM-DVN-44X. It enables the use of a USB keyboard and mouse on one computer while other USB peripherals such as speakers, scanners and printers are connected to other computer sources. The SM-DVN-44X maintains the ability to switch all connected devices to any one of the computer sources as with any other KVM Switch in the market.

• DVI-D Dual Link Video Connectors; can mix DVI Dual-Link and DVI Single-Link Computers


• HDMI support using active adapters or cables


• Supports all major Operating Systems like Windows, Mac, Linux, Sun, Unix, DOS, etc.


• Supports resolutions up to 2560 x 1600 @ 60Hz


• Zero pixel loss with TMDS signal correction


• Supports USB keyboard and mouse


• Supports additional USB 2.0 devices like printers, scanners, web cameras and more


• Rack mountable in a standard 19 inch rack


• Flash upgradeable firmware


• Stereo Audio support

Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: SmartAVI
Manufacturer: Smart Audio Video Innovation
Product Model: SM-DVN-44X
Product Name: SM-DVN-44X KVM Switchbox
Manufacturer Part Number: SM-DVN-44X
Manufacturer Website Address: http://www.smartavi.com
Weight (Approximate): 6.90 lb
