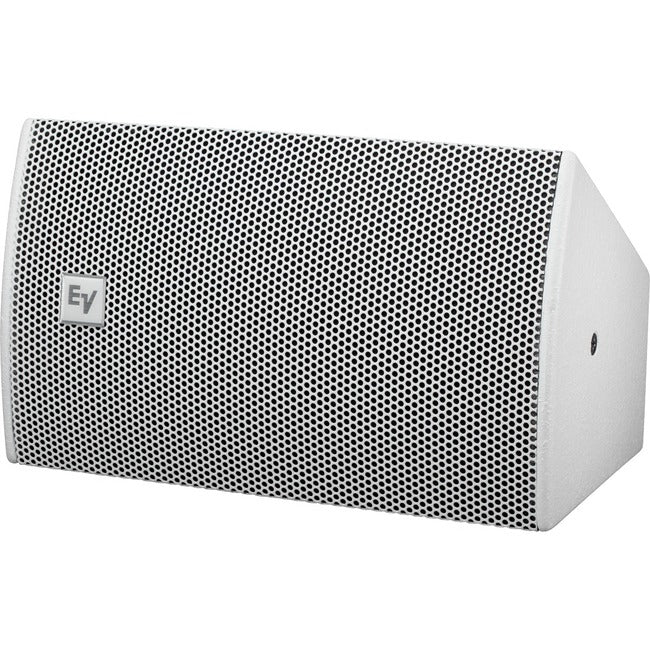

Electro-Voice 2-way Ceiling Mountable, Wall Mountable Speaker - 175 W RMS - White EVU-1082/95-WHT

Description :

Electro-Voice 2-way Ceiling Mountable, Wall Mountable Speaker - 175 W RMS - White
General Description:

The Electro-Voice EVU-1082/95 is a compact two-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in an ultra-compact lightweight enclosure. The enclosure design utilizes asymmetric angles to maintain tight clearances to wall and ceilings while providing optimal coverage patterns making it ideal to blend into surroundings. This design was optimized for wall, stage lip and under balcony applications.

The EVU-1082/95 incorporates the ICT-1-8, a high-output 1.3" diaphragm titanium compression driver coupled to a Constant Directivity™ 90° x 50° rotatable waveguide. The ICT-8-8 woofer was developed using FEA optimization to provide the highest sensitivity while achieving the highest level of speech intelligibility. The crossover design uses 18-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response and a protection circuit for long term reliability.

The EVU series is constructed of 9-ply hardwood plywood enclosures with six integral M8 suspension points to support a wide variety of mounting positions. The EVU system is finished in textured paint, available in either white or black. Each EVU system includes a universal U-bracket to facilitate mounting. The U-bracket provides full unobstructed rotation of the loudspeaker (330° unobstructed rotation if the transformer kit is installed). Additional mounting points are located on the rear of the enclosure for use with an Omnimount™ type bracket. An available 70.7/100-V transformer kit may be easily mounted over the input panel for use in distributed systems. All of these features give you the flexibility to address a large range of venues, while quickly and precisely supporting customer requirements.

• (6) M8 threaded suspension points


• NL4 cover plate accessory optional


• 70.7/100-V transformer accessory optional


• Universal U-bracket included


• System rating: 175 W continuous, 700 W peak


• 95 dB sensitivity, 123 dB maximum SPL


• Coverage pattern: 90° x 50° Constant DirectivityTM rotatable waveguide


• Advanced third-order crossover network with HF protection


• 8" (203 mm) LF transducer


• 1.3" (33 mm) diaphragm, 1.4" (36 mm) exit pure titanium compression driver

Product Type: Speaker
Woofer Diameter: 8"
Product Color: White
Product Series: EVU
Brand Name: Electro-Voice
Form Factor: Wall Mountable
Manufacturer: The Bosch Group
Product Name: EVU-1082/95 Single 8" Two-Way 90° x 50° Full-Range Loudspeaker System
Manufacturer Part Number: EVU-1082/95-WHT
Manufacturer Website Address: http://www.bosch.com
Package Contents:

• EVU-1082/95 Single 8" Two-Way 90° x 50° Full-Range Loudspeaker System
• Universal U-bracket
