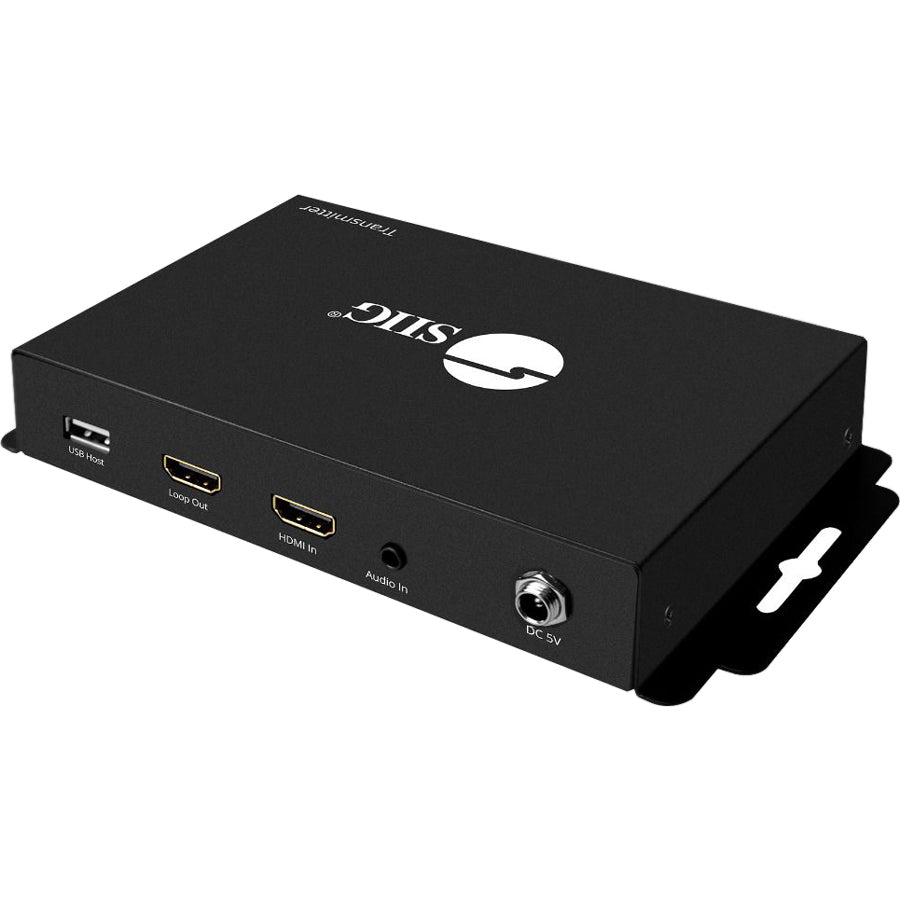

SIIG HDMI 2.0 4k@60Hz Over IP Matrix and Video Wall - Transmitter CE-H25211-S1

Description :

SIIG HDMI 2.0 4k@60Hz Over IP Matrix and Video Wall - Transmitter

Extends HDMI audio/video signals through IP networks up to 394ft (120m), matrix and video wall configurable on the fly

• HDMI 2.0a and HDCP 2.2 compliant
• Supports HDMI input up to 4Kx2K@60Hz YUV 4:4:4 8bit, HDMI output up to 4Kx2K@30Hz
• Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch
• Supports 4K signals including High Dynamic Range (HDR), PoE, Bi-directional IR path, and Video Wall. Due to the video compression, some distortion may occur in HDR mode
• Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture
• Easy DIP switch matching for multi-casting group configuration
• Supports full frequency IR signal from 20KHz to 60KHz
• Full Duplex RS-232 control up to 115,200 bps
• Supports 180° and 270° clockwise image rotation

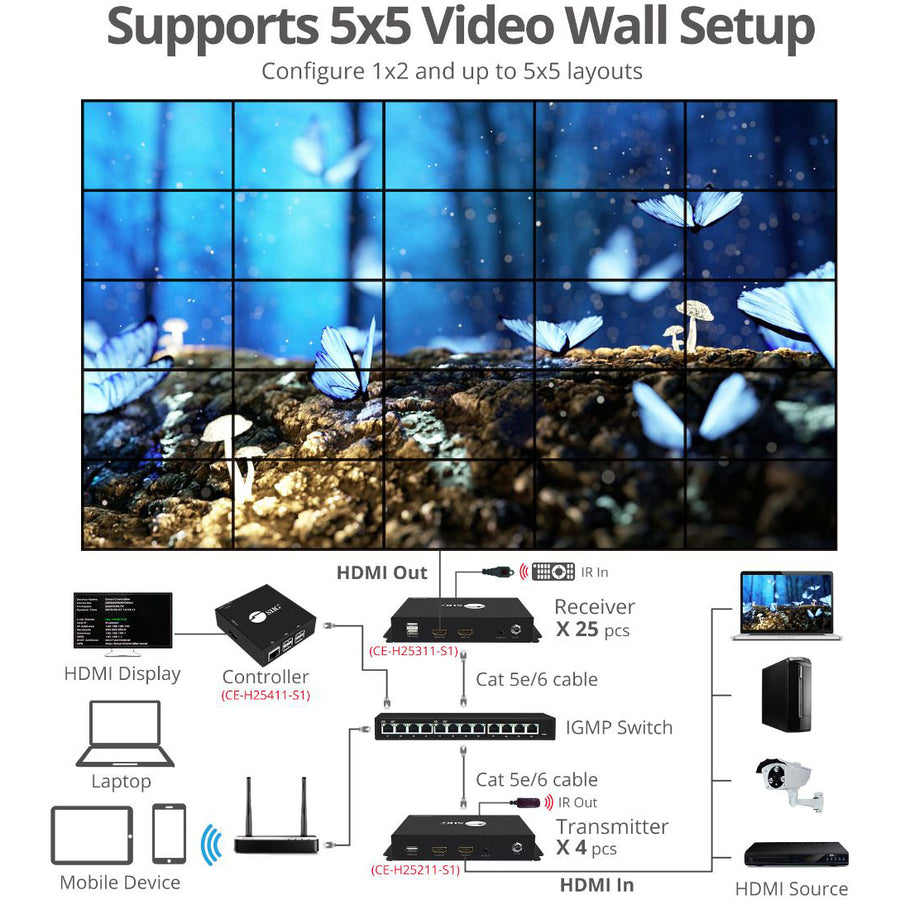

• Designed to work with HDMI 2.0 Video Wall Over IP Multicast System - Receiver, part # CE-H25311-S1 sold separately, and HDMI 2.0 Video Wall Over IP Multicast System - Controller, part # CE-H25411-S1 sold separately

Product Type: Video Extender Transmitter
Environmentally Friendly: Yes
Environmental Certification: RoHS

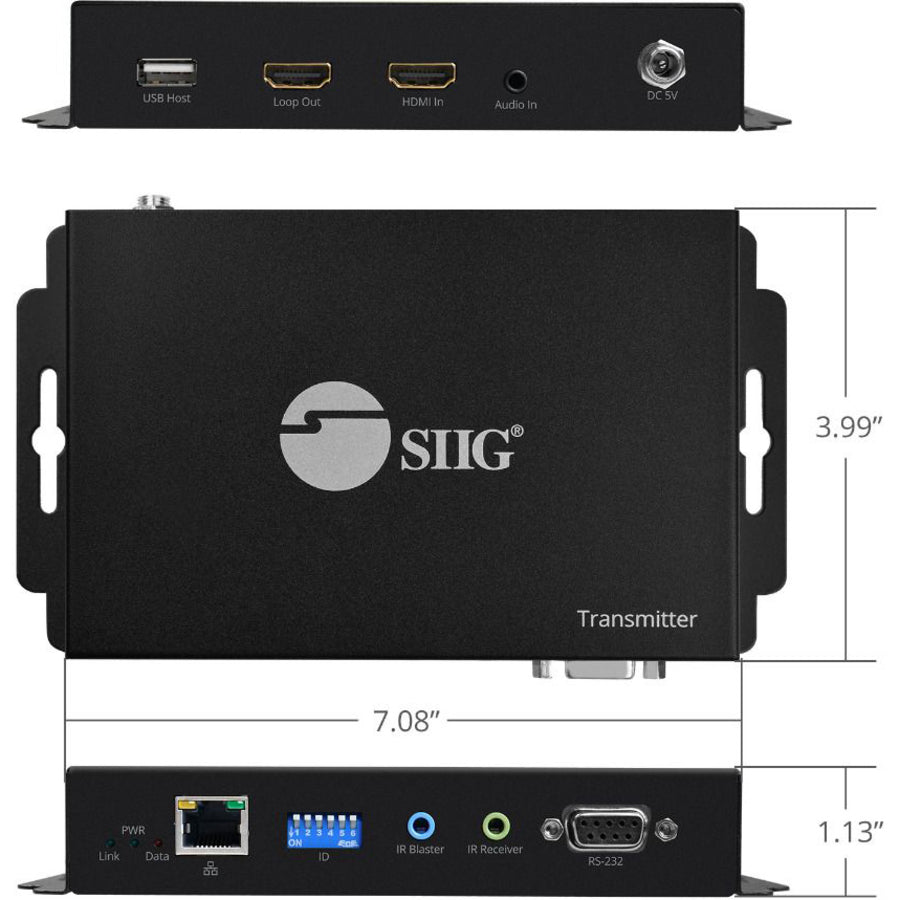

Transmitter Height: 1.13"
Transmitter Width: 4"
Transmitter Depth: 7.09"
Transmitter Weight (Approximate): 1.08 lb
Taa Compliant: Yes
Product Color: Black
Country Of Origin: Taiwan
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: HDMI 2.0 Over IP Matrix and Video Wall - Transmitter
Manufacturer Part Number: CE-H25211-S1
Manufacturer Website Address: http://www.siig.com

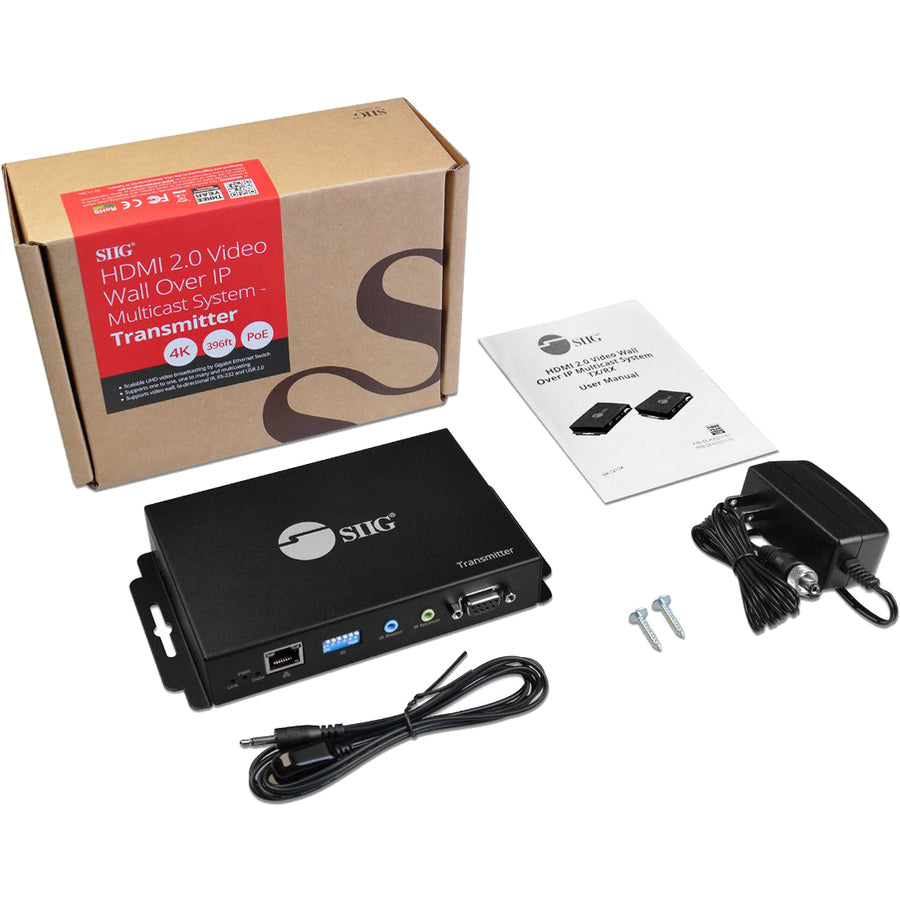

Package Contents:

• HDMI 2.0 Over IP Matrix and Video Wall - Transmitter
• Power Adapter 5V/2A
• 1 x IR Blaster Cable
• 2 x Screw Kit
• Insert Card
• User Manual
