Siig Cyberserial Jj-P45012-S7 4-Port Pci Serial Adapter

Description :

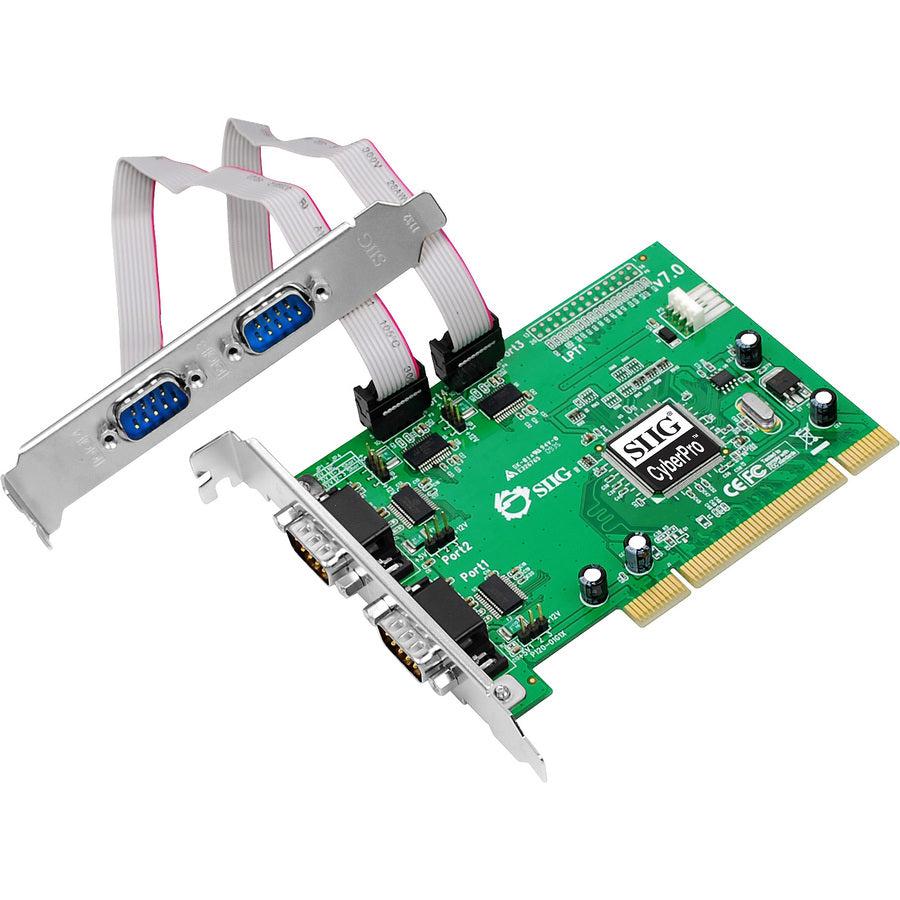

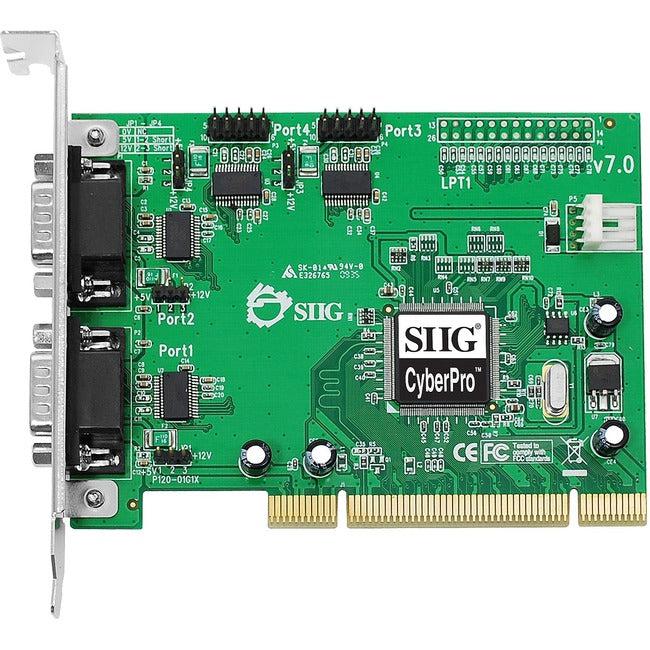

SIIG CyberSerial JJ-P45012-S7 4-port PCI Serial Adapter
The CyberSerial 4S 550 PCI serial adapter card is an excellent solution for you to connect multiple serial devices to your system. It is designed to add four 9-pin (DB9) serial ports to your PCI-enabled desktop computer. This serial adapter card comes with four high-speed 16550 UART serial ports supporting data transfer rates up to 230Kb/s. The serial ports can work as either standard DB9 RS232 ports, or can be configured with 5V /12V power outputs for devices that require power such as handheld scanners, table scanners, and POS displays. The CyberSerial 4S 550 PCI adapter card features IRQ sharing to reduce IRQ conflicts, built-in 32-byte FIFO buffers to dramatically increase serial port data transmit/receive speed especially under Windows multitasking environment, and PME (Power Management Event) to allow device to request a change in system power state (wake up system). It comes with an enhanced bending-resistant bracket to provide a more secure connection to the system, and it works with 32-/64-bit, 3.3v/5v PCI and PCI-X slot. Industry standards met by this Oxford OXuPCI954 powered serial adapter card include PCI v2.2 universal card standard, PCI-X & 64-bit compatible, RoHS, and FCC Class B (DoC) & CE regulatory approved. Backed by SIIG's limited lifetime warranty and compatible with a wide variety of Windows operating systems, the CyberSerial 4S 550 PCI adapter is the best-value serial port adapter card in the market for connecting a wide variety of serial devices.

Product Type: Serial Adapter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: SIIG
Form Factor: Plug-in Card
Manufacturer: SIIG, Inc
Product Model: JJ-P45012-S7
Product Name: CyberSerial JJ-P45012-S7 4-port PCI Serial Adapter
Product Line: CyberSerial
Manufacturer Part Number: JJ-P45012-S7
Manufacturer Website Address: http://www.siig.com
Package Contents:

• CyberSerial JJ-P45012-S7 4-port PCI Serial Adapter

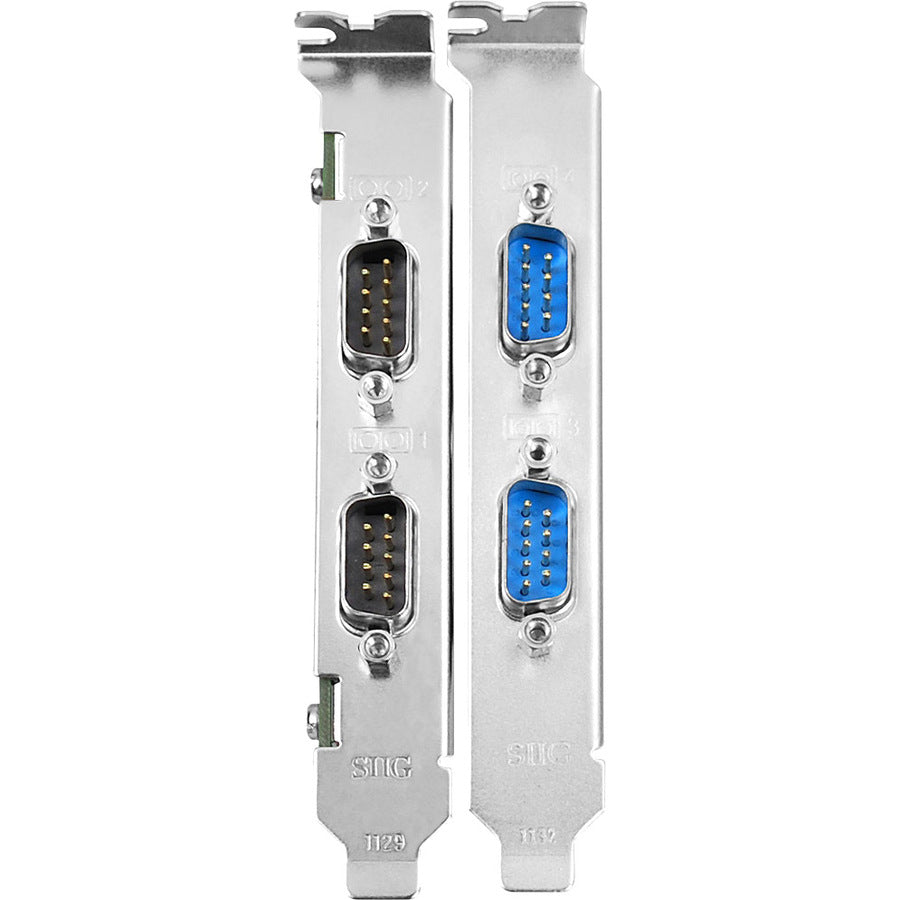

• Connector Bracket With two 9-pin (DB9) Connectors


• 4 x Voltage Jumpers


• Driver CD


• User's Manual
