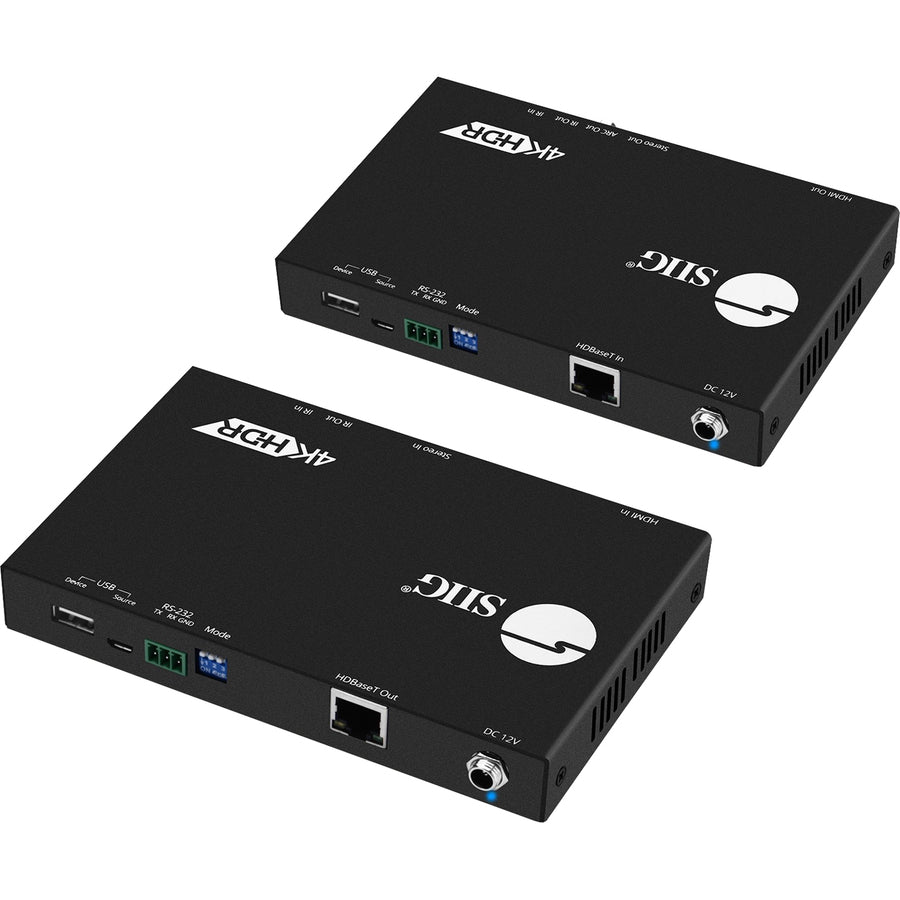

SIIG 4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR CE-H23411-S1

Description :

SIIG 4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR

Extends HDMI audio and video signals, USB 2.0, RS232 control, IR control up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology

• Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) away at Full HD 1080p, or 230ft (70m) at 3840x2160@60Hz (4:4:4 8bit/HDR10 4:2:0 10bit) through a single premium quality CAT5e/6 cable
• Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV444 8bit and HDR 3840x2160 @60Hz YUV420 10bit
• Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
• Supports USB 2.0 data transmission between the receiver and transmitter
• Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter
• Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side
• High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
• Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements

More from the Manufacturer

• Compliant with HDMI 2.0 and HDCP 2.0


• Supports EDID by pass, CEC, Deep Color


• Supports 3840x2160@60Hz 4:4:4 8bit


• Supports 3840x2160@60Hz HDR 4:2:0 10bit


• Video bandwidth up to 18Gbps (600MHz per channel)


• Video latency: <20µs


• Auto skew equalization


• Full Duplex RS-232 control up to 115200 bps through connector


• Full Duplex USB 2.0 data transmission up to 480Mbps


• Audio support: DTS-HD Master Audio and Dolby True HD

Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS

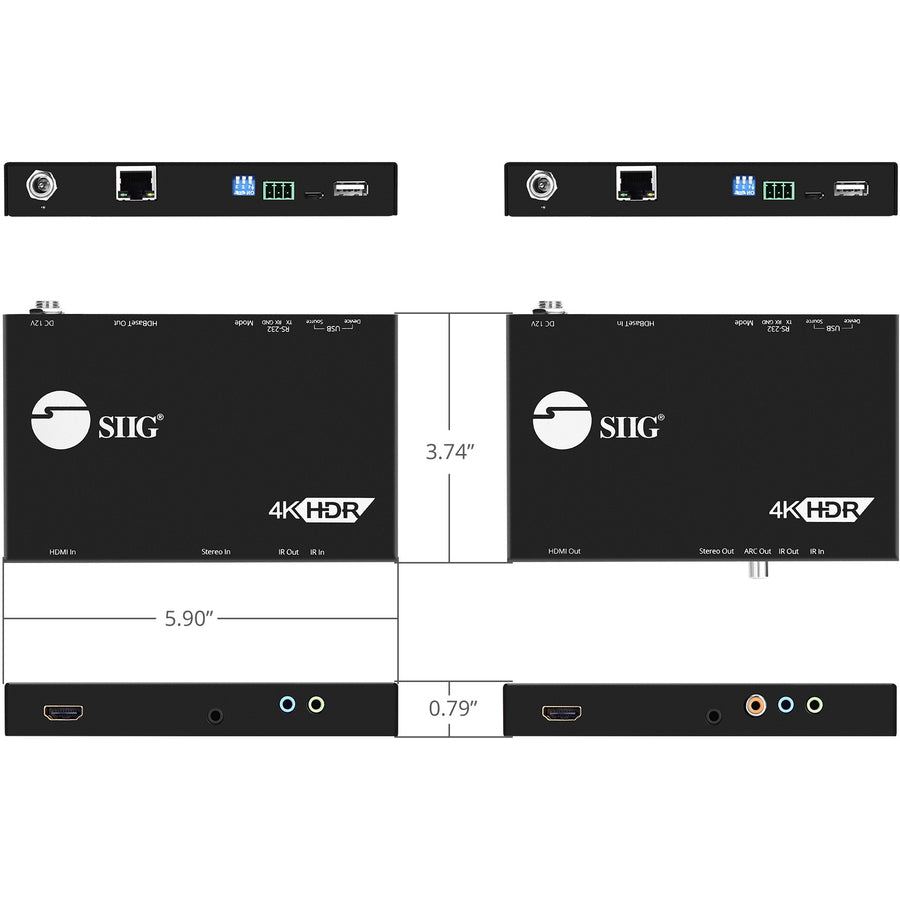

Transmitter Height: 0.79"
Transmitter Width: 3.74"
Transmitter Depth: 5.91"
Transmitter Weight (Approximate): 1.74 lb
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: SIIG
Form Factor: Wall Mountable
Manufacturer: SIIG, Inc
Product Name: 4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR
Manufacturer Part Number: CE-H23411-S1
Manufacturer Website Address: http://www.siig.com

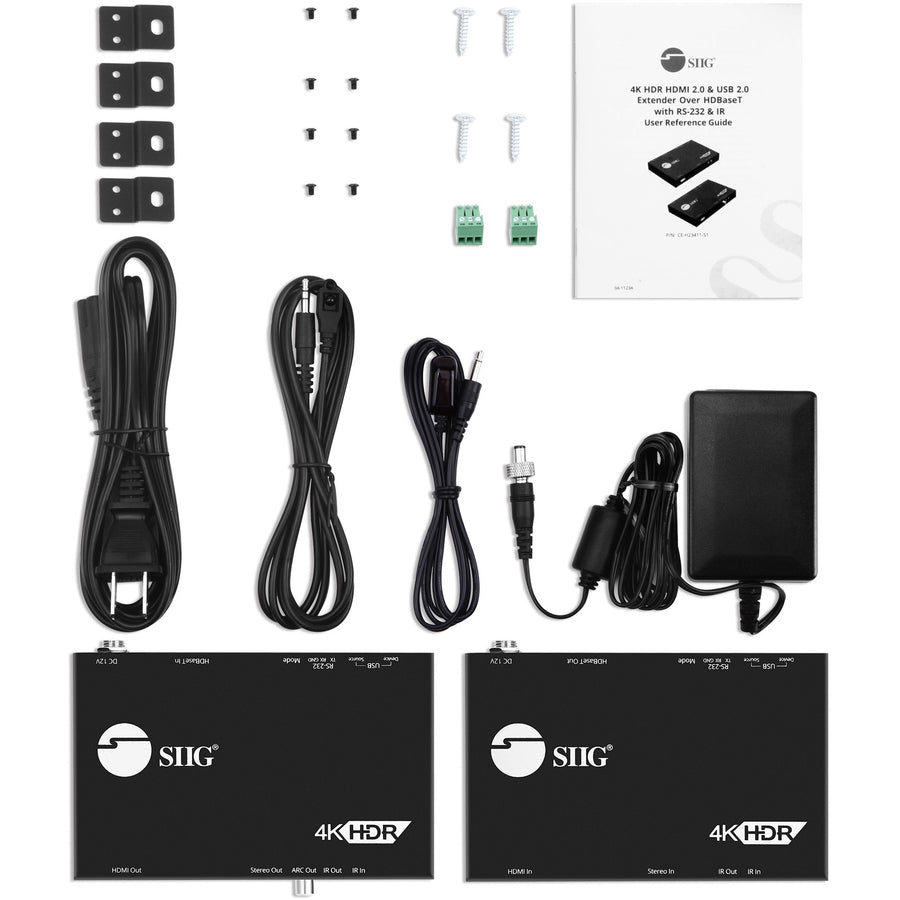

Package Contents:

• 1 x Transmitter (TX)
• 1 x Receiver (RX)
• Power Adapter
• IR Blaster Extension Cable & IR Receiver Extension Cable
• 4 x Mounting Ears & Screw kit (8+4)
• 2 x Terminal Block
• User Reference Guide
