Description
Description :
SIIG 2x2 4K Video Wall Processor with USB-C / DVI / HDMI Inputs with EDID management

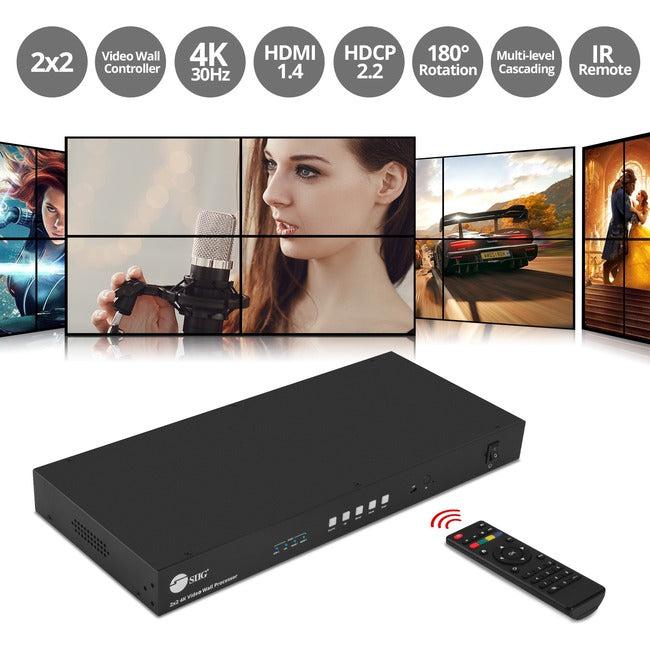

2x2 4K Video Wall Processor with USB-C / DVI / HDMI Input
- Allows you to select and switch between 4 source devices (2 HDMI, 1 USB-C, and 1 DVI-D) to display on 4 HDMI displays
- Create a 2x2 Video Wall using any source device to four displays

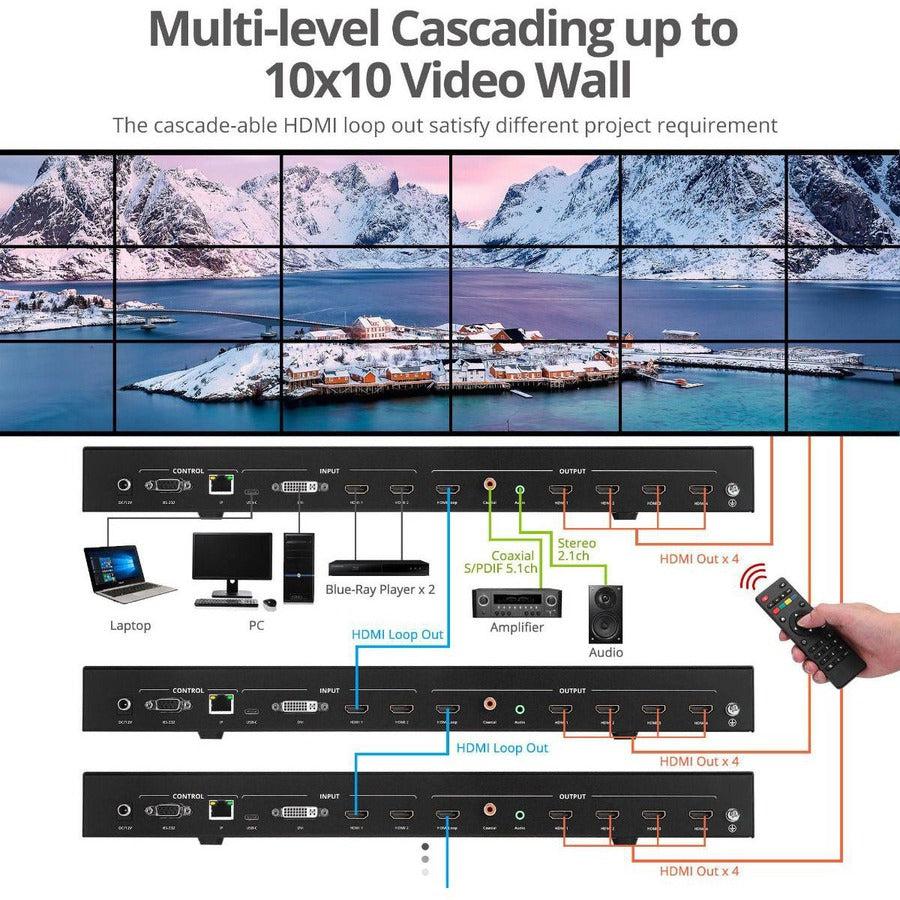

- Supports multi-level cascading to create 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1, and 10x10 (max) video walls
- Supports 180° HDMI image rotation
- Supports EDID management: Two default EDID: 4K30Hz & 1080p, copy the EDID of the HDMI loop out or any output port
- Supports resolution up to 4K@30Hz for USB-C and HDMI inputs, 1920x1200 for DVI-D input
- SupportsSource device switching via front panel button, remote control, RS232 command, and TCP/IP control
- USB port allows firmware upgrades when needed
- Supports SPDIF and analog audio extraction to connect external speakers or AV equipment
- Mounting brackets included for various installation options
- Allows you to select and switch between 4 source devices (2 HDMI, 1 USB-C, and 1 DVI-D) to display on 4 HDMI displays
- Create a 2x2 Video Wall using any source device to four displays
- Supports multi-level cascading to create 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1, and 10x10 (max) video walls
- Supports 180° HDMI image rotation
- Supports EDID management: Two default EDID: 4K30Hz & 1080p, copy the EDID of the HDMI loop out or any output port
- Supports resolution up to 4K@30Hz for USB-C and HDMI inputs, 1920x1200 for DVI-D input
- SupportsSource device switching via front panel button, remote control, RS232 command, and TCP/IP control
- USB port allows firmware upgrades when needed
- Supports SPDIF and analog audio extraction to connect external speakers or AV equipment
- Mounting brackets included for various installation options
Product Type: Video Wall Controller
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Model: CE-H26E11-S1
Product Name: 2x2 4K Video Wall Processor with USB-C/DVI/HDMI Inputs
Manufacturer Part Number: CE-H26E11-S1
Manufacturer Website Address: http://www.siig.com

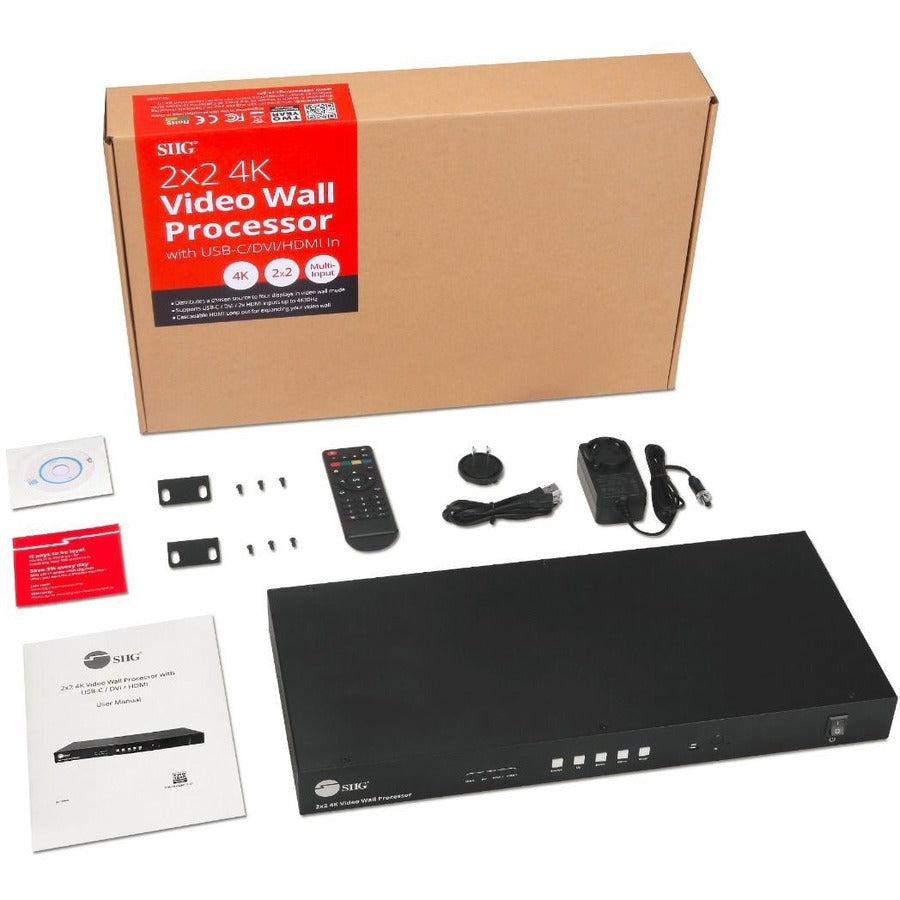

Package Contents:
- 2x2 4K Video Wall Processor with USB-C/DVI/HDMI Inputs
- DC 12V/2A output power adapter
- Remote control
- Mounting bracket kit (6x screws, 2x mounting ears)
- Driver CD
- USB cable
- User manual
Limited Warranty: 2 Year
Weight (Approximate): 5.51 lb
