Description
Specifications
Description :

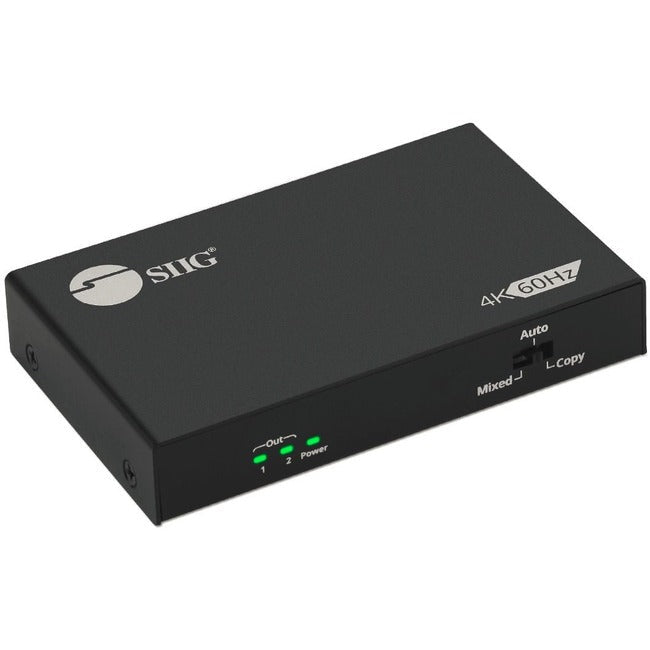

SIIG 2 Port HDMI 2.0 4K @60Hz HDR Splitter with EDID & Downscaler
Distributes HDMI video/audio signals from one HDMI source to two HDMI displays with EDID management and video downscaling while maintaining signal quality

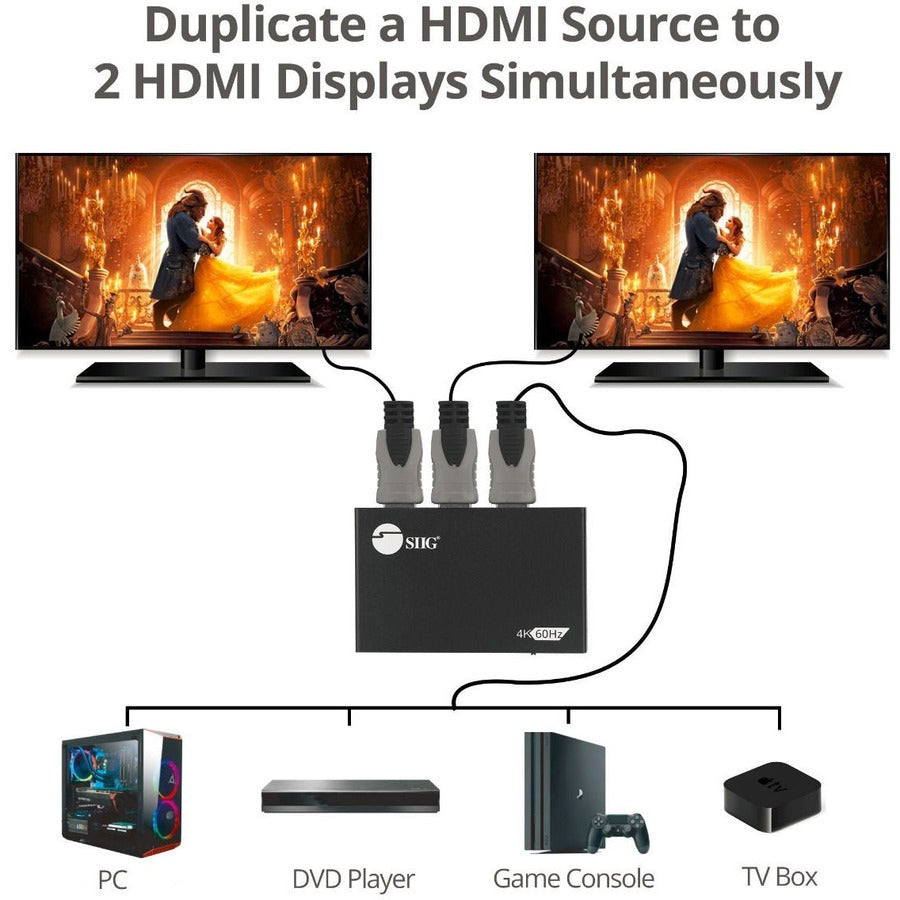

- Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports resolutions up to 4K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bits Deep Color, Dolby Vision, and LPCM 7.1, Dolby TrueHD, Dolby digital Plus, Dolby Atmos, and DTS-HD Master Audio
- Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Note: 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz
- High quality materials with metal housing extend the stability and durability, allowing for long hours of operation.
- Built-in EDID management and firmware update mechanisms offer wide range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays and expands compatibility into the future. Firmware upgradeable via Mini USB port for expanded compatibility
- Low heat generation with durable metal housing provides excellent heat dissipation and minimizes EMI/RFI interference for stable and reliable performance and long life span

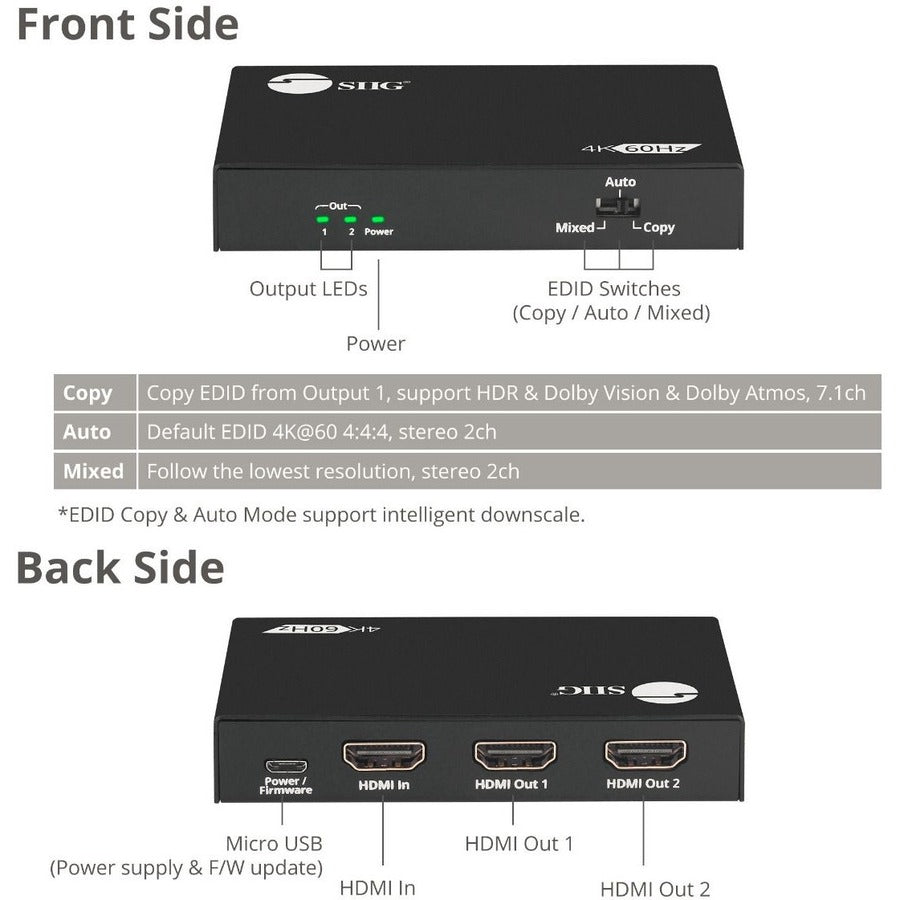

- Individual LED indicators for power and signal allow for easy and quick status recognition
Notes:
- 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz
- EDID Copy and Auto mode supports 4K downscaling to 1080p
- For HDCP 2.2 protected 4K source signals, if the TV supports HDCP 2.2 it will display at 4K resolution, otherwise, the TV will display at 1080p
- HDR, Dolby Vision, Dolby Atmos and 7.1ch supported via EDID Copy mode only
- Split CATV and other signals with this satellite splitter so that it can be used for more than one device
- Up to 3840 2160 video resolution.
- Features HDMI input to get connected with the top of the line HDMI supported devices
- Features HDMI port for delivering and transferring high-quality picture and sound simultaneously at a high-speed.
- Unhindered connections with USB devices are ensured by the built-in USB port
Product Type: Signal Splitter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Material: Metal
Brand Name: SIIG
Length: 3.6"
Manufacturer: SIIG, Inc
Product Name: 2 Port HDMI 2.0 HDR Splitter with EDID and Downscaler
Manufacturer Part Number: CE-H26B11-S1
Manufacturer Website Address: http://www.siig.com

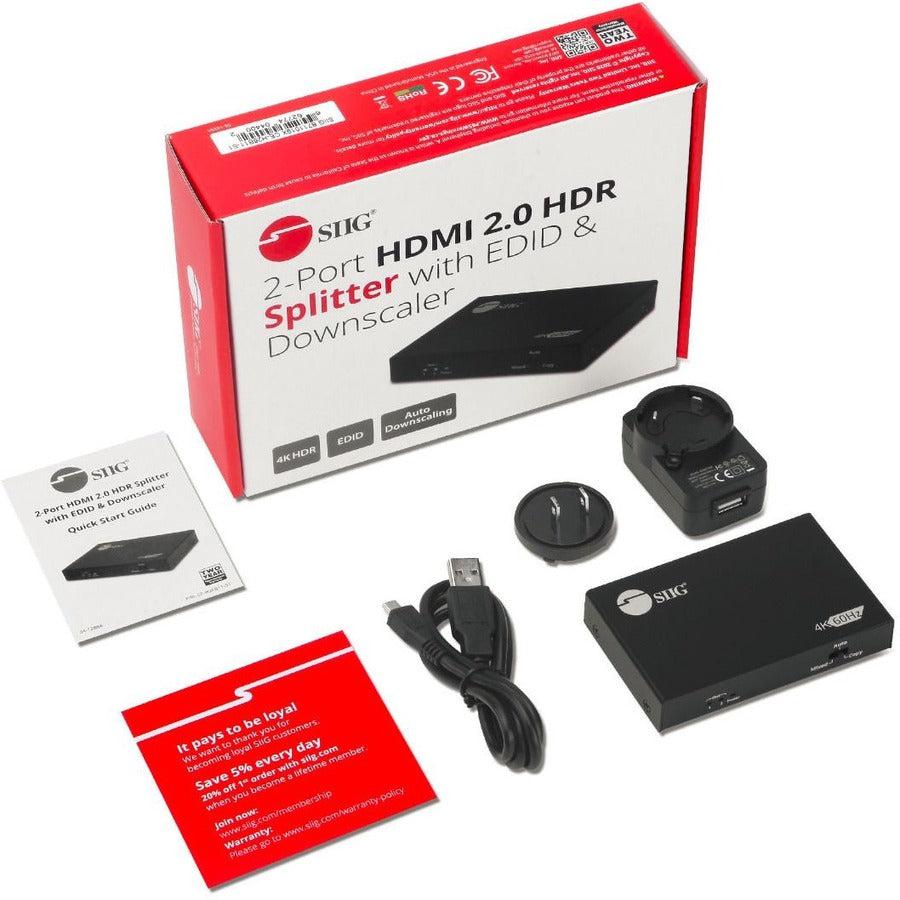

Package Contents:
- 2 Port HDMI 2.0 HDR Splitter with EDID and Downscaler
- Power Adapter with Micro USB Cable
- Quick Start Guide
Limited Warranty: 2 Year
Weight (Approximate): 4.16 oz
Specifications :
General Information
Manufacturer | SIIG, Inc |
---|---|
Manufacturer Part Number | CE-H26B11-S1 |
Manufacturer Website Address | http://www.siig.com |
Brand Name | SIIG |
Product Name | 2 Port HDMI 2.0 HDR Splitter with EDID and Downscaler |
Product Type | Signal Splitter |
UPC | 0662774044002 |
Height | 0.7" |
---|---|
Width | 2.4" |
Weight (Approximate) | 4.16 oz |
Package Contents |
|
---|---|
Environmentally Friendly | Yes |
Limited Warranty | 2 Year |
---|
