Description :

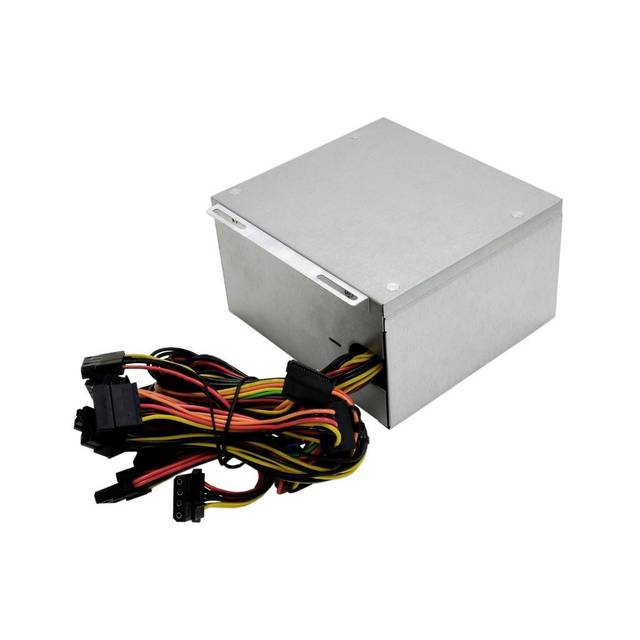

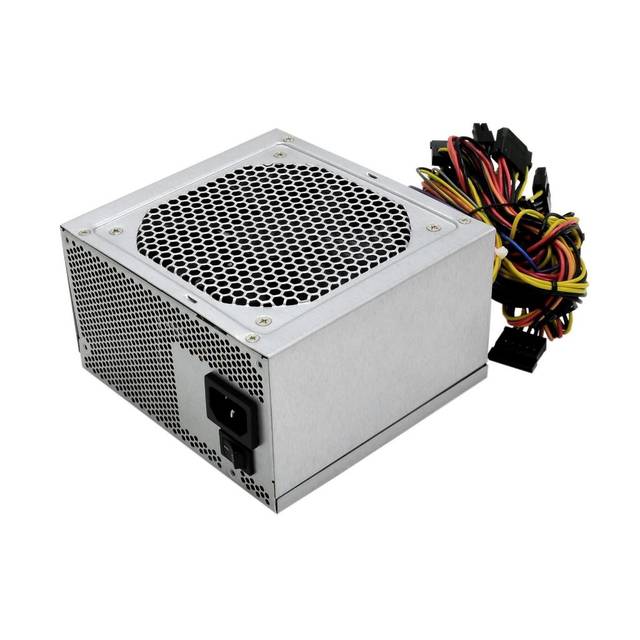

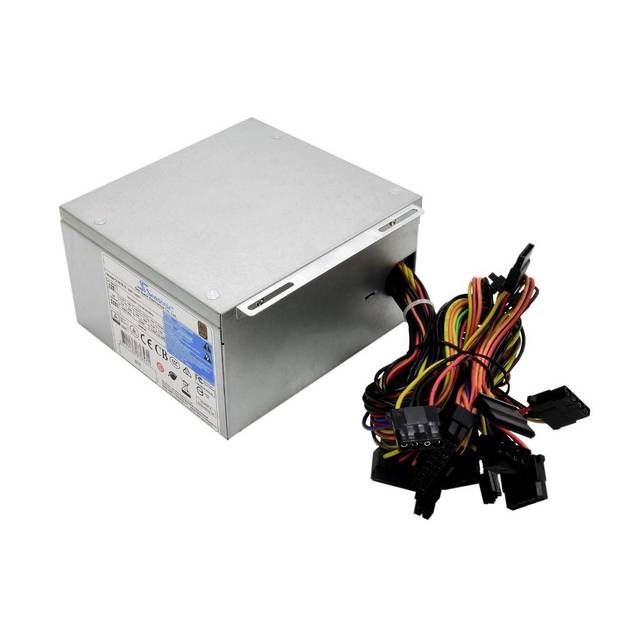

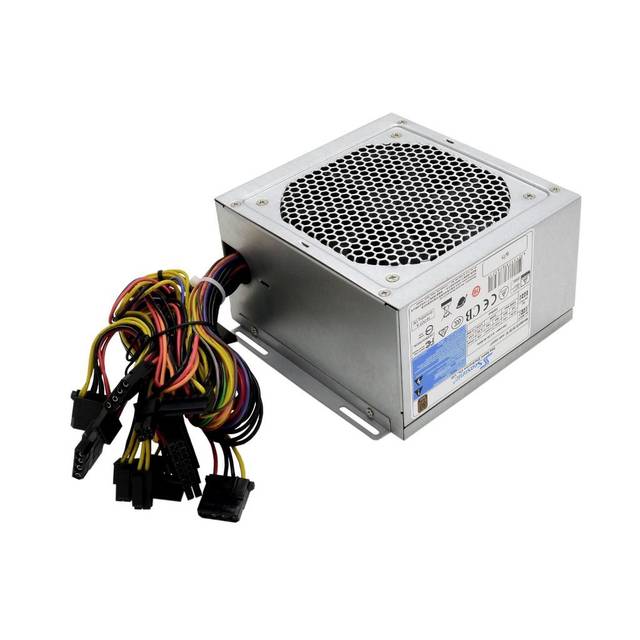

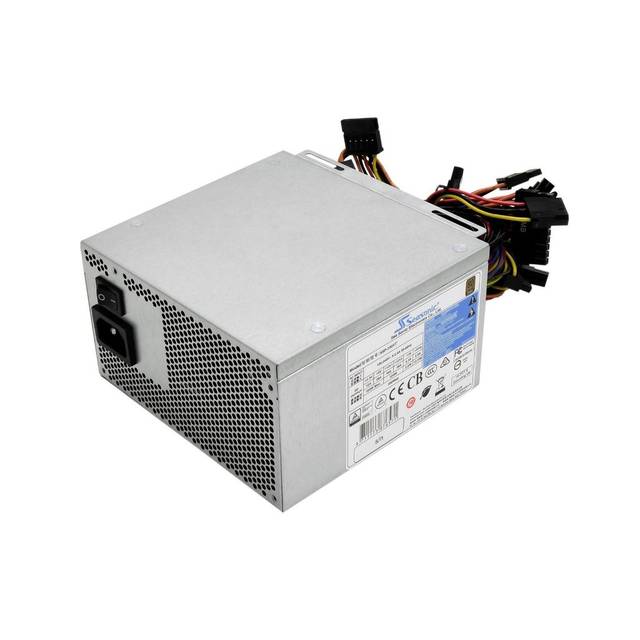

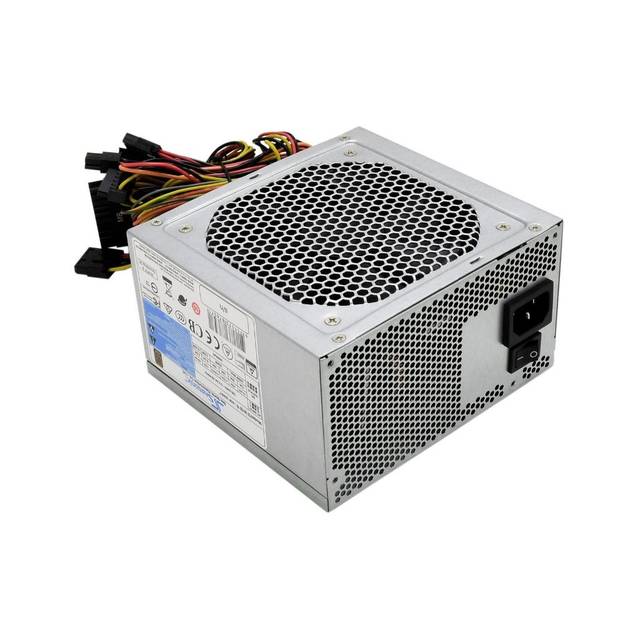

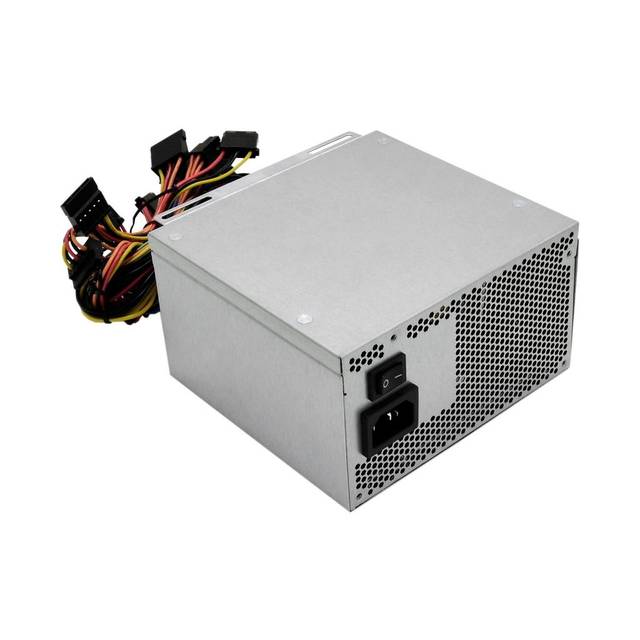

- Mfr Part Number: SSP-600ET2
-
Features:
- Intel ATX 12 V v2.3 compliant
- PCIe- and SATA-ready
- High efficiency and reliability
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100 % HiPot test
- 100 % Burn-in, high temperature cycled on/off
- IEC 62368-1 compliant
-
Total Power: 600 W
-
Input:
-
Voltage: 100 - 240 VAC
-
Frequency: 50/60 Hz
-
-
Efficiency: 80 PLUS Bronze
-
Line regulation: +1%/- 1 % (typical)
-
Load regulation: +5 %/- 5 % (typical)
-
Cross regulation: +5 %/- 5 % (typical)
-
MTBF, full load @ 25 C ambient (excl. DC fan): >100,000 hrs
-
Active Power Factor Correction: 99 % (typical)
-
Output: +3.3V @ 24A, +5V @ 24A, +12V1 @ 24A, +12V2 @ 24A, -12V2 @ 0.3A, +5Vsb @ 2.5A
- Connectors: Main Power ATX 12 V Peripherals: SATA, HDD, FDD
- Safety: CB, CCC, cTUVus, TUV, BSMI
-
EMI/EMC: CE, FCC, RCM
- Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H) (5.9 x 5.5 x 3.4 )
