Description :
- Mfr Part Number: SSP-400ES2
-
Features:
-
Intel ATX 12 V v2.3 compliant
-
PCIe- and SATA-ready
-
High efficiency and reliability
-
Super low noise fan control
-
Short circuit protection on all outputs
-
Over voltage protection
-
Over power protection
-
100 % HiPot test
-
100 % Burn-in, high temperature cycled on/off
-
IEC 62368-1 compliant
-
- Total Power: 400W
-
Input:
- Voltage: 100 - 240V
- Frequency: 50/60Hz
- Output: +3.3V @ 20A, +5V @ 20A, +12V1 @ 18A, +12V2 @18A, -12V2 @ 0.3A, +5Vsb @ 2.5A
-
Connectors:
- Main Power
- ATX 12 V
- Peripherals: SATA, HDD, FDD
-
Efficiency: 80 PLUS Bronze
-
Line regulation: +1%/- 1 % (typical)
-
Load regulation: +5 %/- 5 % (typical)
-
Cross regulation: +5 %/- 5 % (typical)
-
MTBF, full load @ 25 C ambient (excl. DC fan): >100,000 hrs
-
Active Power Factor Correction: 99 % (typical)
-
Safety: CB, CCC, cTUVus, TUV, BSMI
-
EMI / EMC: CE, FCC, RCM
-

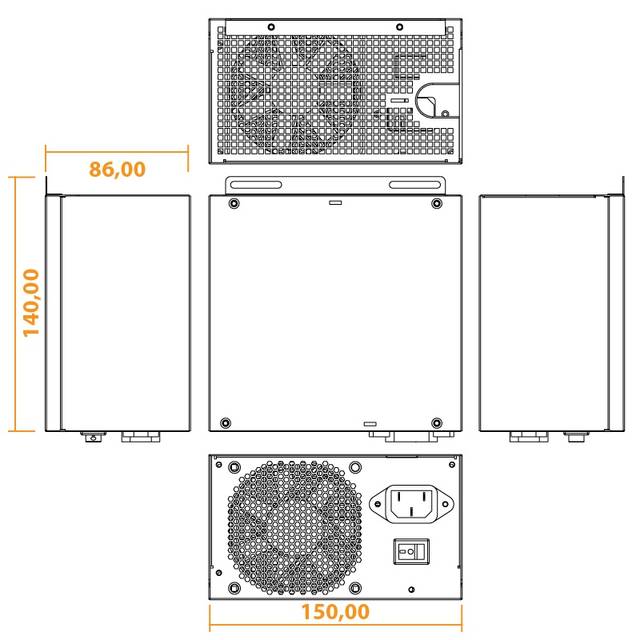

Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)/ (5.9 x 5.5 x 3.4 )
