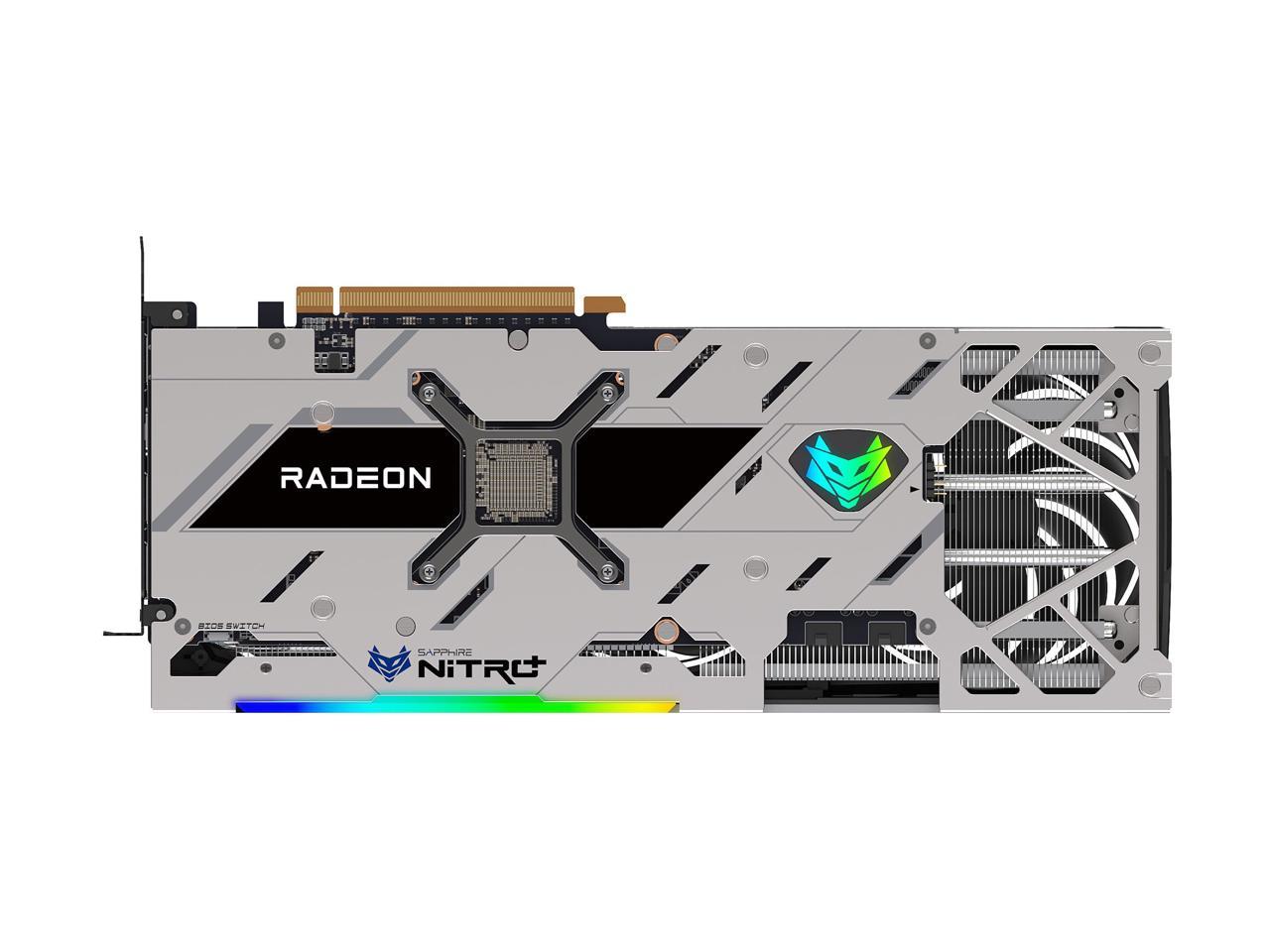

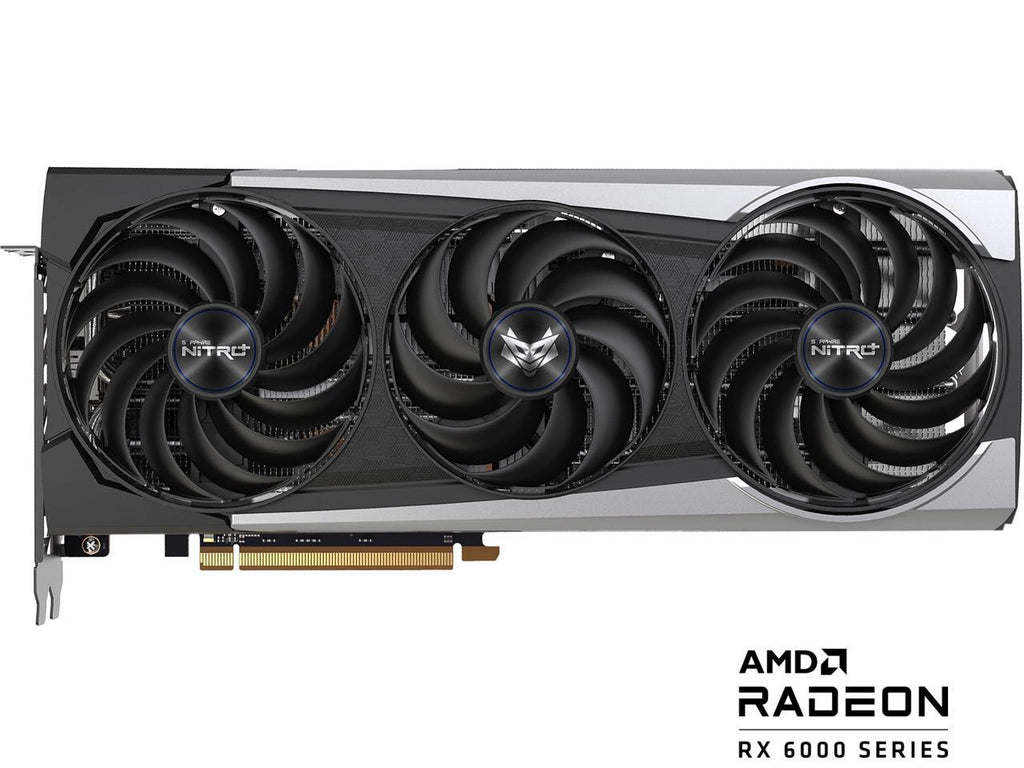

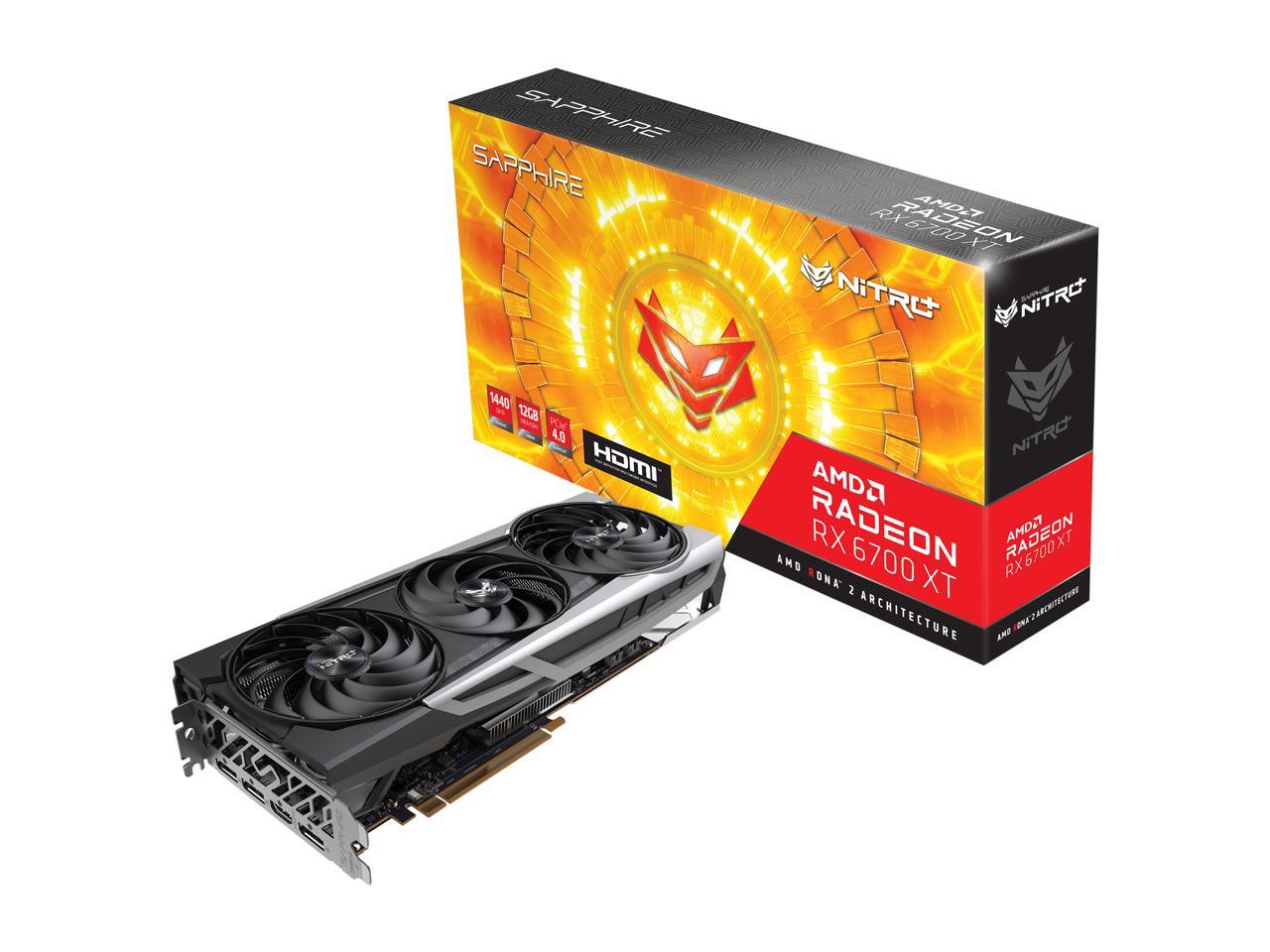

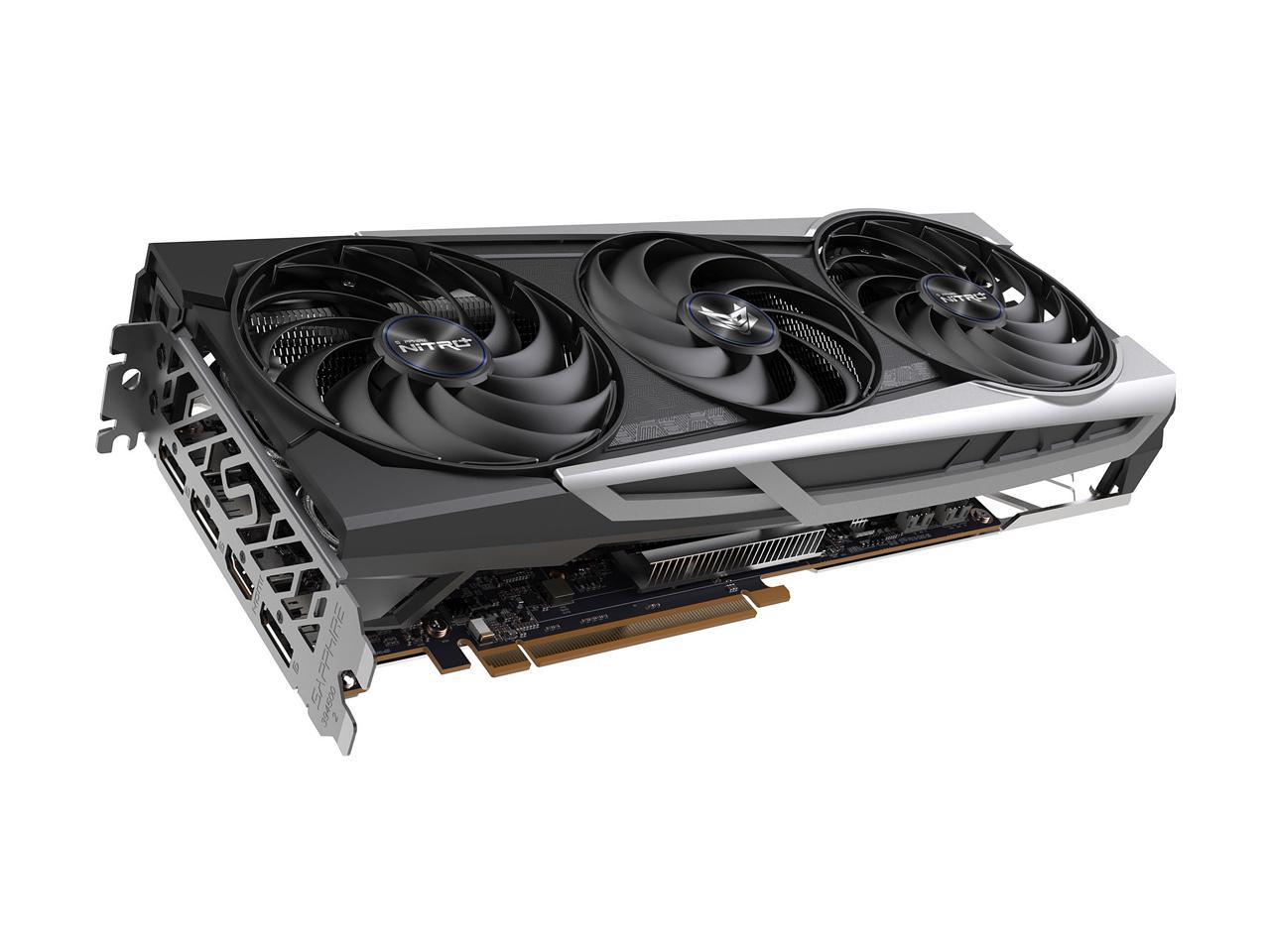

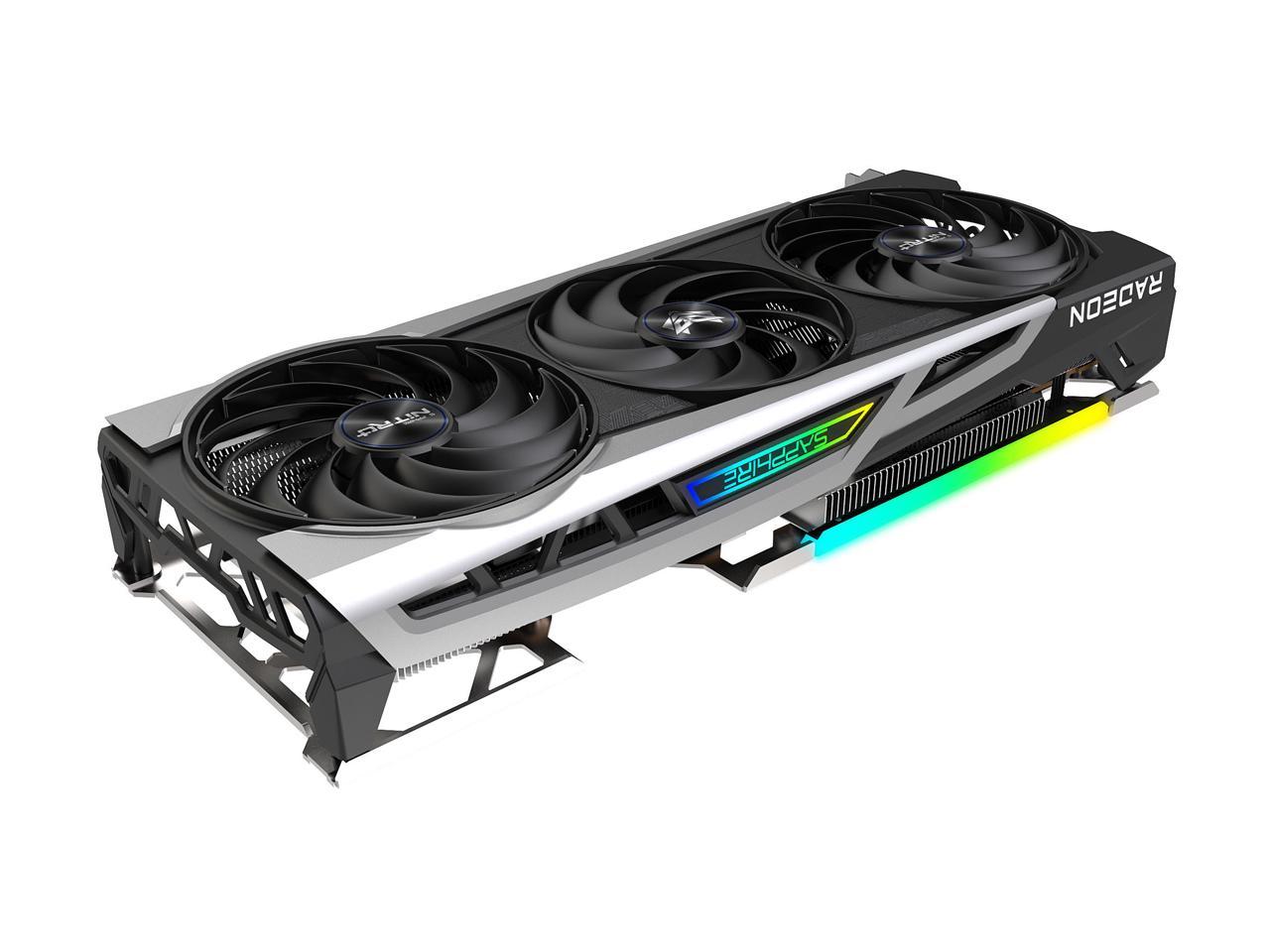

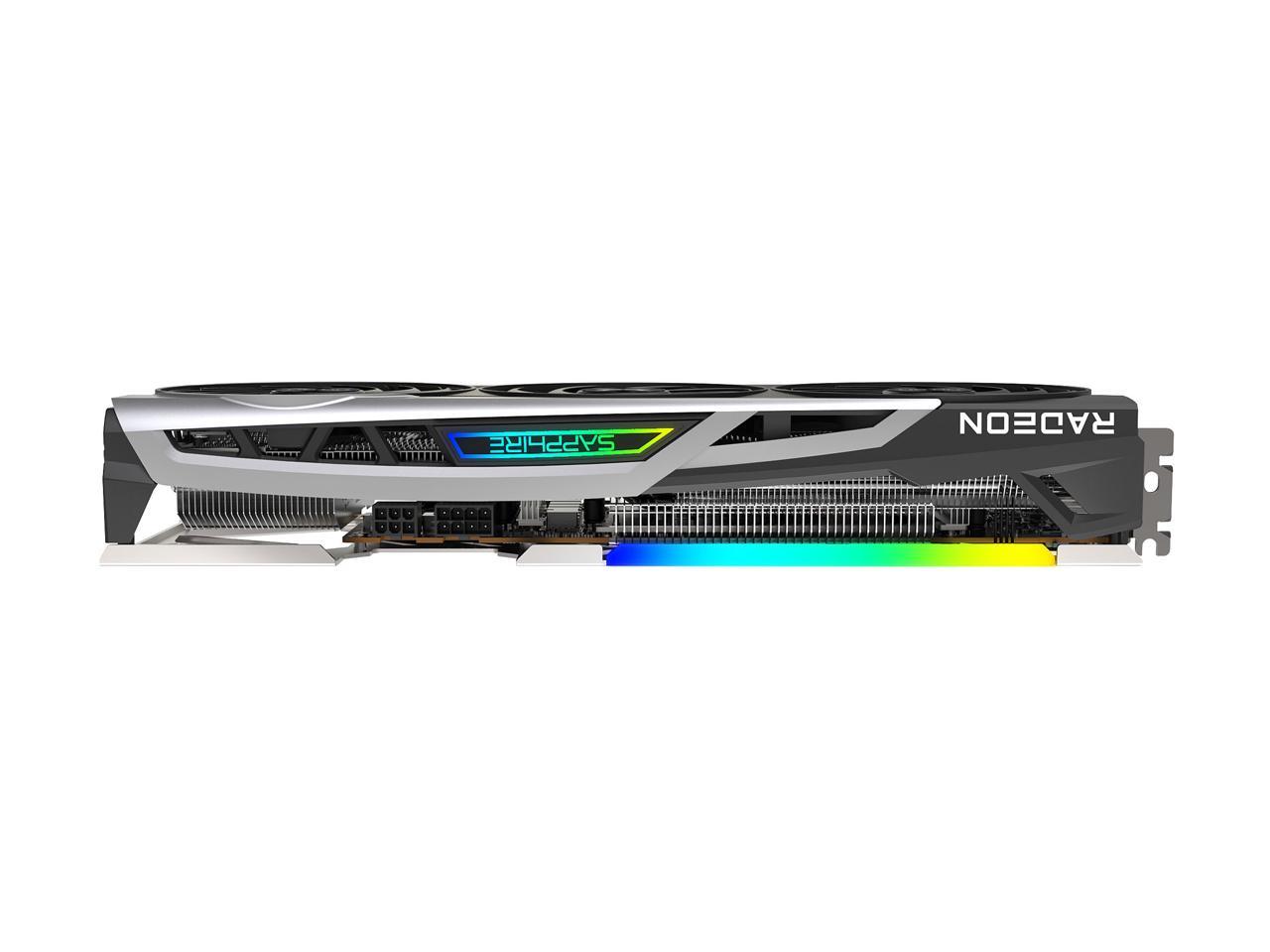

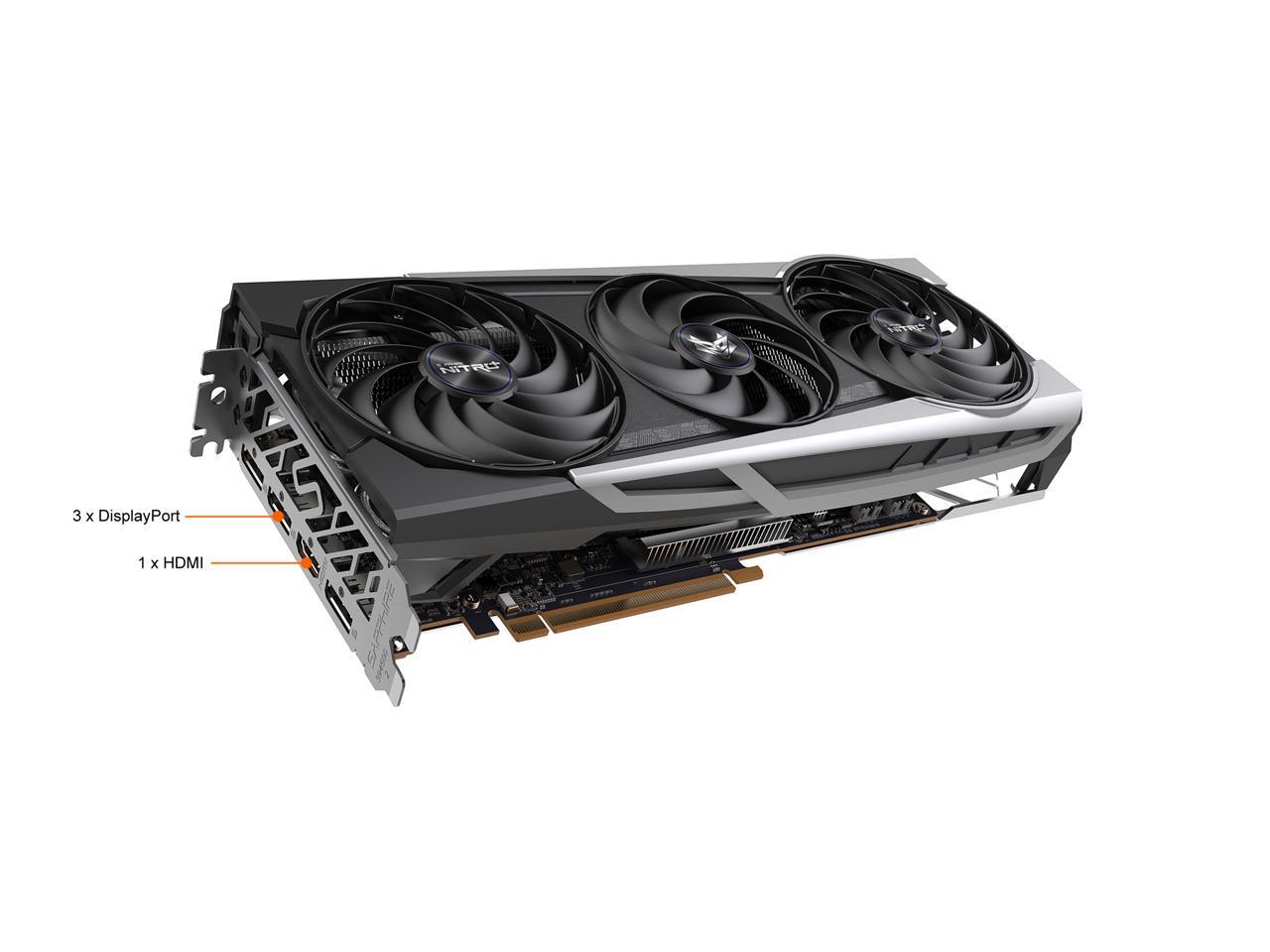

Sapphire Nitro+ AMD Radeon RX 6700 XT Gaming OC Video Card, 12GB GDDR6 HDMI / Triple DP (11306-01-20T)

Regular price
$1,166.65
Sale price
$1,166.65
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • 12GB 192-Bit GDDR6
  • Boost Clock 2622 MHz
  • 1 x HDMI 2.1 3 x DisplayPort 1.4
  • 2560 Stream Processors
  • PCI Express 4.0 x16



Model
Brand SAPPHIRE
Series NITRO+
Model 11306-01-20T
Interface
Interface  PCI Express 4.0 x16
Chipset
Chipset Manufacturer AMD
GPU Series AMD Radeon RX 6000 Series
GPU  Radeon RX 6700 XT
Boost Clock  2622 MHz
Stream Processors  2560 Stream Processors
Memory
Effective Memory Clock  16 Gbps
Memory Size 12GB
Memory Interface  192-Bit
Memory Type GDDR6
3D API
DirectX  DirectX 12 Ultimate
Ports
Multi-Monitor Support 4
HDMI  1 x HDMI 2.1
DisplayPort  3 x DisplayPort 1.4
Details
Max Resolution 7680 x 4320
Virtual Reality Ready Yes
Cooler Triple Fans
Thermal Design Power  260W
System Requirements PCI Express compatible motherboard with one x16 PCIe slot.
Minimum 650W or greater power supply NOTE: Minimum recommended system power supply wattage is based on the specific graphics card and the typical power requirements of other system components. Your system may require more or less power. OEM and other pre-assembled PCs may have different power requirements.
Minimum 8GB of system memory. Recommended 16GB.
Installation software requires a keyboard, a mouse, and a display.
A display with HDMI, or DisplayPort is required.
Supported operating systems include Linux, Windows 7*, Windows 10. 64-bit operating system required. (*Does not support all features including but not limited to Hardware Raytracing.)
DirectX 12 and Vulkan support.
For information on AMD Radeon VR Ready Premium visit amd.com/VRready.
Recommended PSU Wattage 650W
Power Connector 1 x 6-Pin, 1 x 8-Pin
Features
Features NITRO+ Product Features:
Software BIOS Switch
NITRO Glow ARGB
Fan Check
Max Boost
Quick Connect Fan
External RGB LED Synchronization
Hybrid Fan Blade
Wave Fin Design
V-Shape Fin Design
Integrated Cooling Module

AMD Radeon Product Features:
AMD RDNA 2 Architecture
96MB Infinity Cache
12GB GDDR6 Memory
PCI Express 4.0
AMD FidelityFX
DirectX 12Ultimate
Hardware Raytracing
Vulkan Optimized
Radeon Anti-Lag
Radeon Boost
AMD Freesync Technology
HDMI 2.1
Form Factor & Dimensions
Form Factor  ATX
Max GPU Length 310 mm

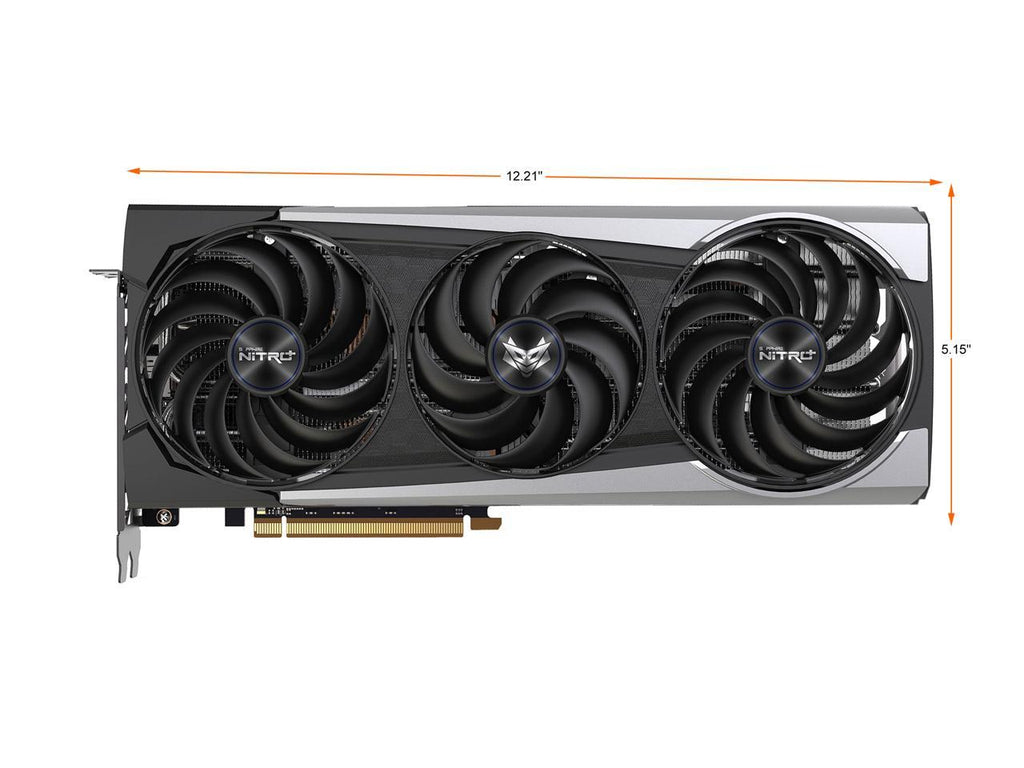

Card Dimensions (L x H) 12.21" x 5.15"
Slot Width 2.5 Slot
Additional Information
Date First Available May 20, 2021
